Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 5 Head Section
7. MSB Whole Cleaning and Lubrication Procedures

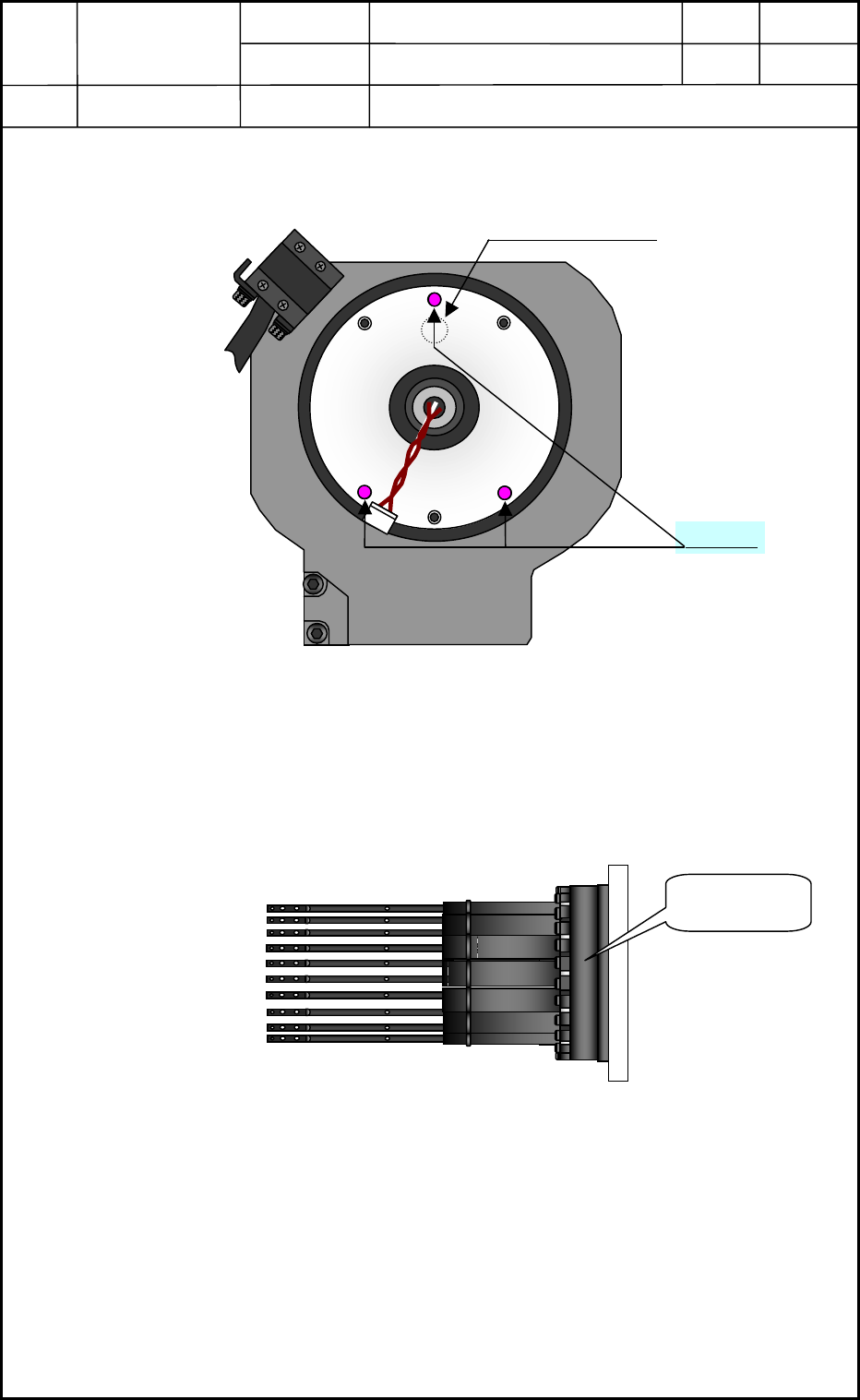

(11) Remove 3-M1.6×L4 mounting bolts for attaching the bottom rotor as shown in
Fig. E57 and detach the nozzle shaft assy (bottom rotor) from the DD motor.
Fig. E57
The following Fig. E58 is showing the condition that the nozzle shaft assy (bottom rotor)
has already been removed from the DD motor.
Fig. E58
No.1 Nozzle Position
View of head Bottom Surface
No.1 ノズル
M1.6×L4
Nozzle Shaft
Assy
0605-001
5-29
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 5 Head Section
7. MSB Whole Cleaning and Lubrication Procedures
(12) Remove 12 nozzle holders from the DD motor (upper rotor) with a nozzle holder
inserting Jig.
* This nozzle holder inserting jig has become a screw type so, tuck the nozzle holder
inserting jigs in the nozzle holders for each 10-sections and pull out the nozzle
holders together with the jigs.
Fig. E59
Nozzle Holder
Vacuum Valve
View of Head Bottom Surface
Nozzle Holder Inserting Jig
Nozzle Holder
0605-001
5-30
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 5 Head Section
7. MSB Whole Cleaning and Lubrication Procedures
(13) After wiping out the old grease of the nozzle holder O-ring section, apply a small
amount of new grease to the outer circumference of the O-ring section thinly. Wipe off
the soil or etc. of the V-packing <Fig. E60> and bridge the V-groove section with grease,
as well as applying grease thinly to the V-packing shaft washer.
Clean up the nozzle holder inside with a cotton swab dipped in alcohol.
Face the groove side of the V-packing up when the V-packing is reset to the former
position as it
was.
Fig. E60
O-ring
Cotton Swab
Nozzle Holder
Bridge the groove with grease.
Apply grease to the
shaft washer surface.
V-packing
Part No.-S29
0605-001
5-31
