Chapter 18 Packaging
1. Checklist for Packaging

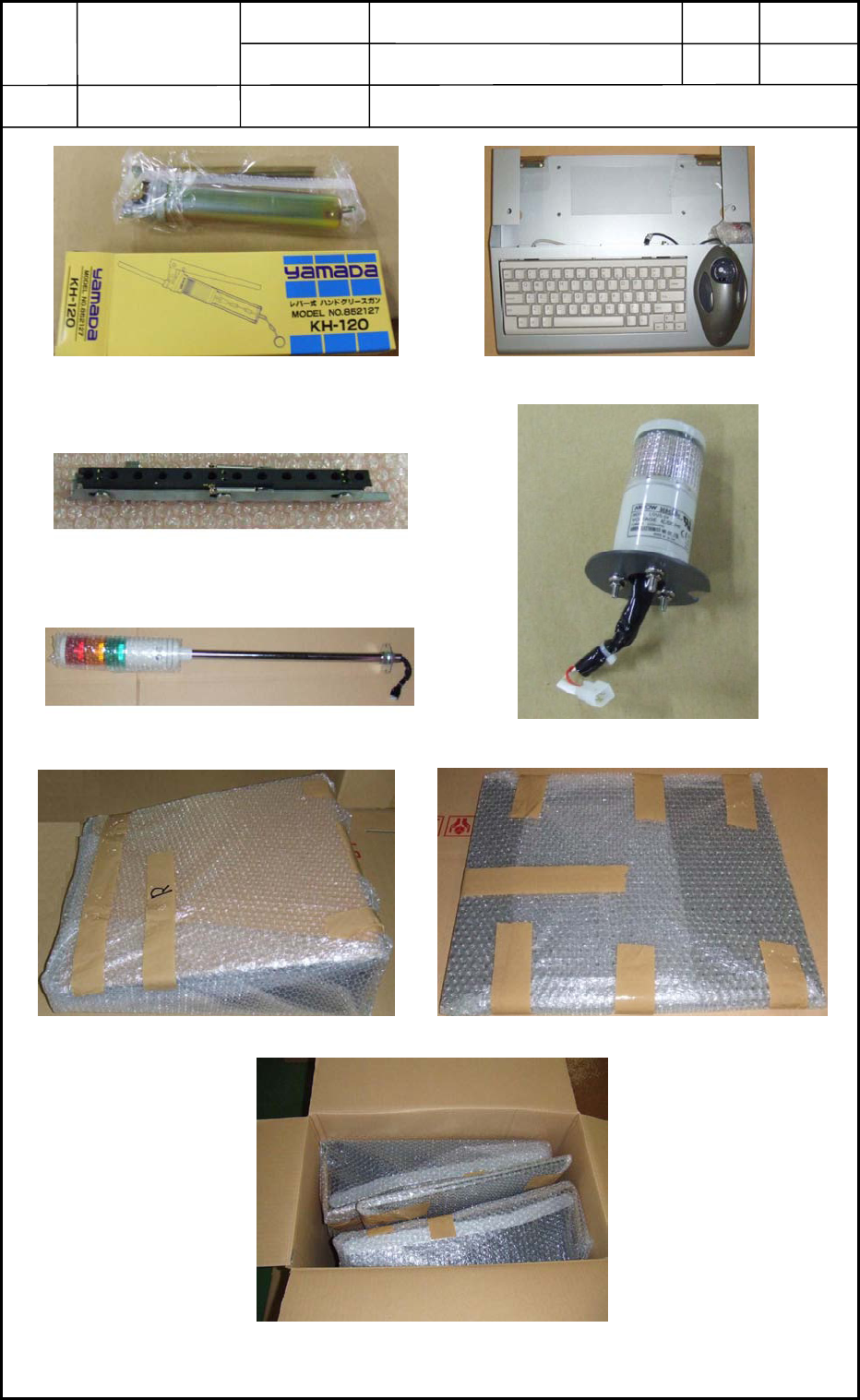

Fig. R2-6
Fig. R2-1 Hand Grease Gun
Fig. R2-2 Keyboard and Backup Base
Fi
g
. R2-3 Nozzle Stocker
Fig. R2-4 Light Tower
Fi
g
. R2-5 Arrow Lam
p
Operation Panel
O
p
eration Panel
Packaged Operation Panels
18-6
0512-001
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
2.1 Packaging Procedure with Steel Panels
The photos below show how to package a component placement machine (TCM-X
series).
Follow the same procedure for the GXH series.
18-7
0512-001

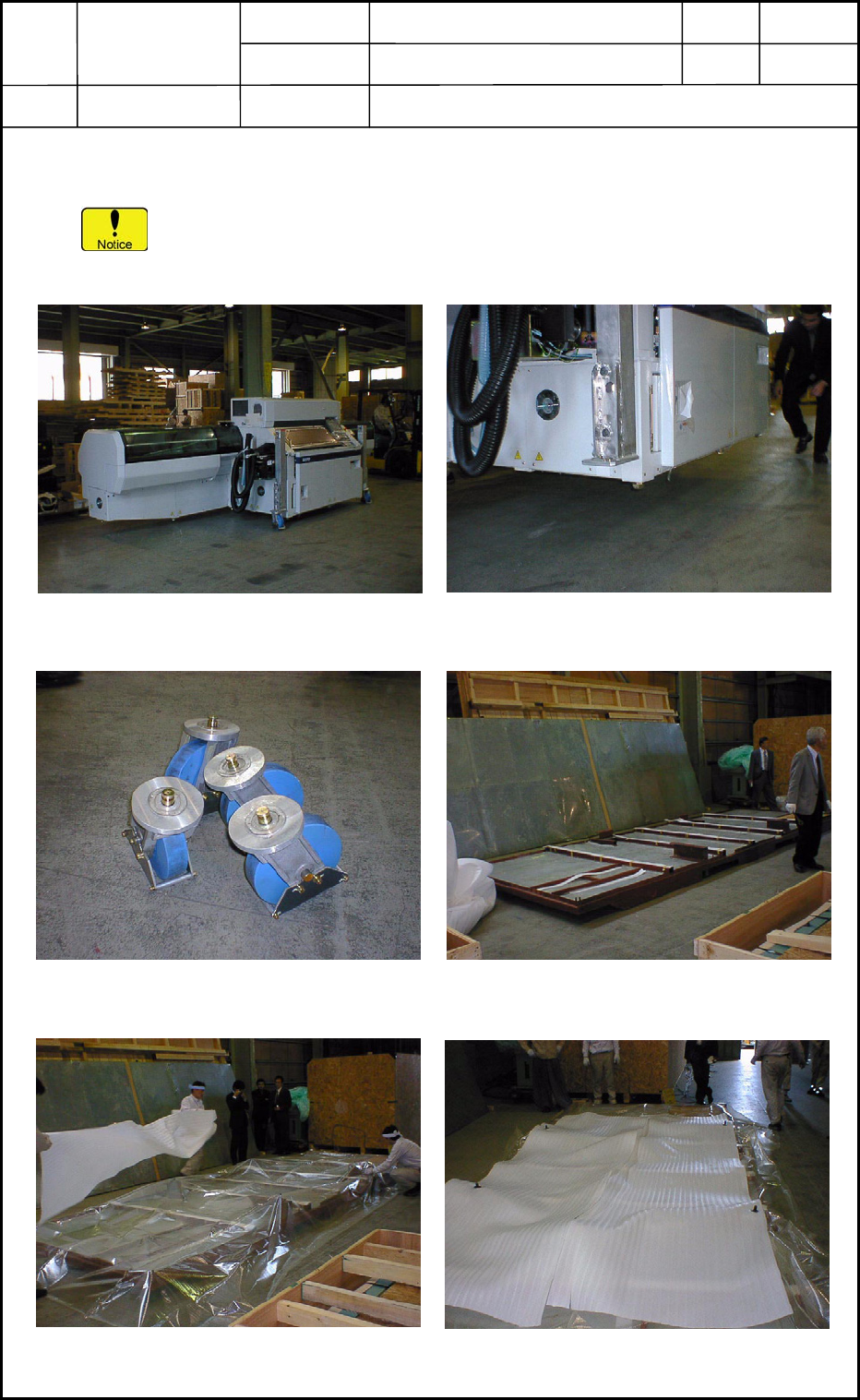

Fig. R3-1 Component Placement
Machine before Packaging
Fig. R3-2 Detachment of Lifting Lugs
and Casters
Fig. R3-4 Base for Packaging with
Steel Panels
Fig. R3-5 Steel Base before
Covering with Sheet
Fi
g
. R3-6 Sheet-Covered Steel Base
Fig. R3-3 Detached Casters
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
18-8
0512-001
Fig. R3-7 Lowering the machine
onto the base
Fig. R3-8 Anchor on Steel Base
Fig. R3-9 Hole for Anchor of Lifting Lug
Fig. R3-11 Covering the machine with a sheet
Fig. R3-10 Anchor inserted into Lifting Lug
Fig. R3-12 Sheet Hems bonded by
thermo-compression
