Device Name Chip Mounter Block Name Page No. Unit Name Revision Model Item GXH -1 Chapter 18 Pack aging 2. Packag ing Procedure Fig. R3- 14 Fastening the accessory parts (1) Fig. R3- 15 Fastening the accessory parts (2) …
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
18-8
0512-001

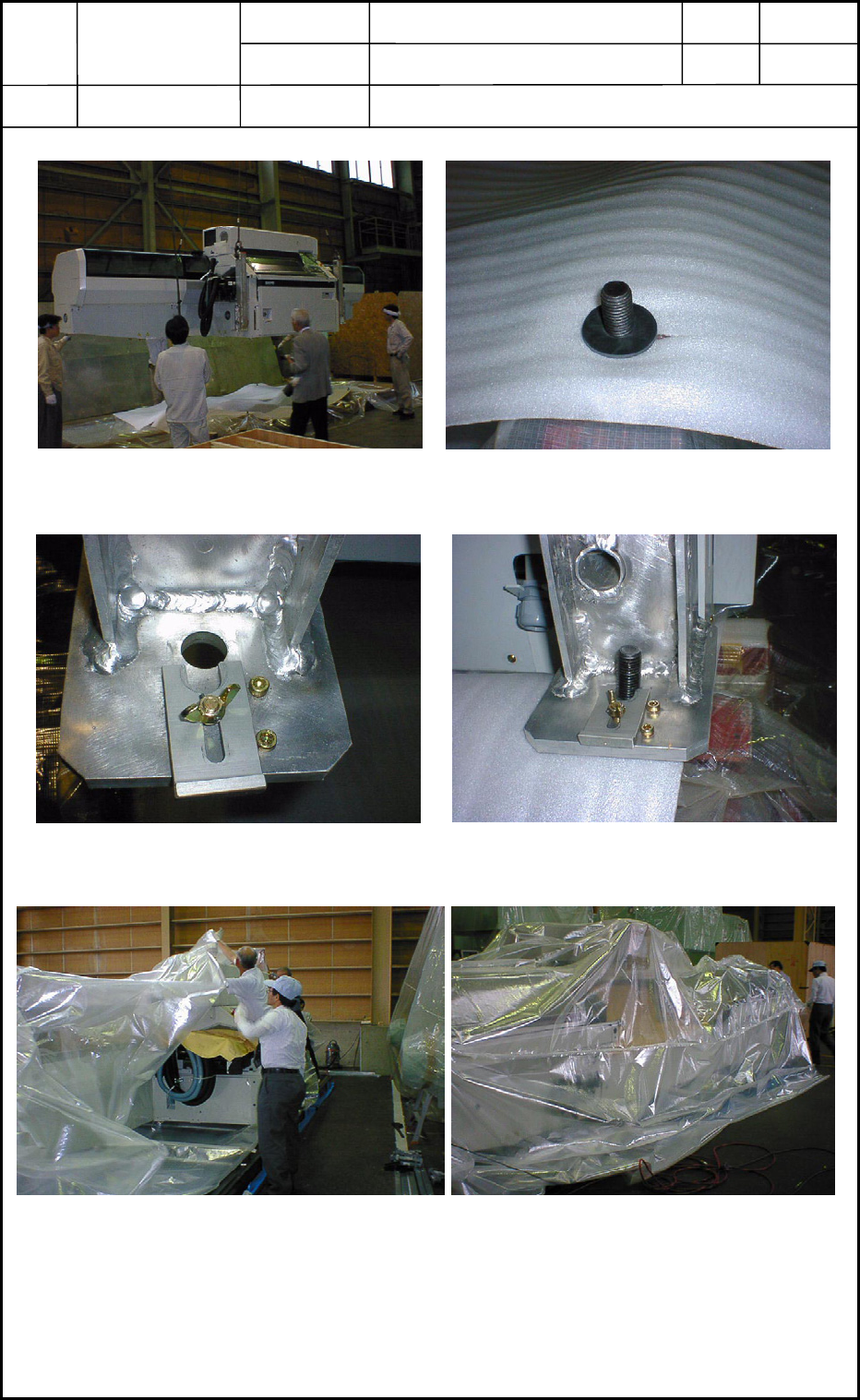

Fig. R3-7 Lowering the machine
onto the base
Fig. R3-8 Anchor on Steel Base
Fig. R3-9 Hole for Anchor of Lifting Lug
Fig. R3-11 Covering the machine with a sheet
Fig. R3-10 Anchor inserted into Lifting Lug
Fig. R3-12 Sheet Hems bonded by
thermo-compression
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure

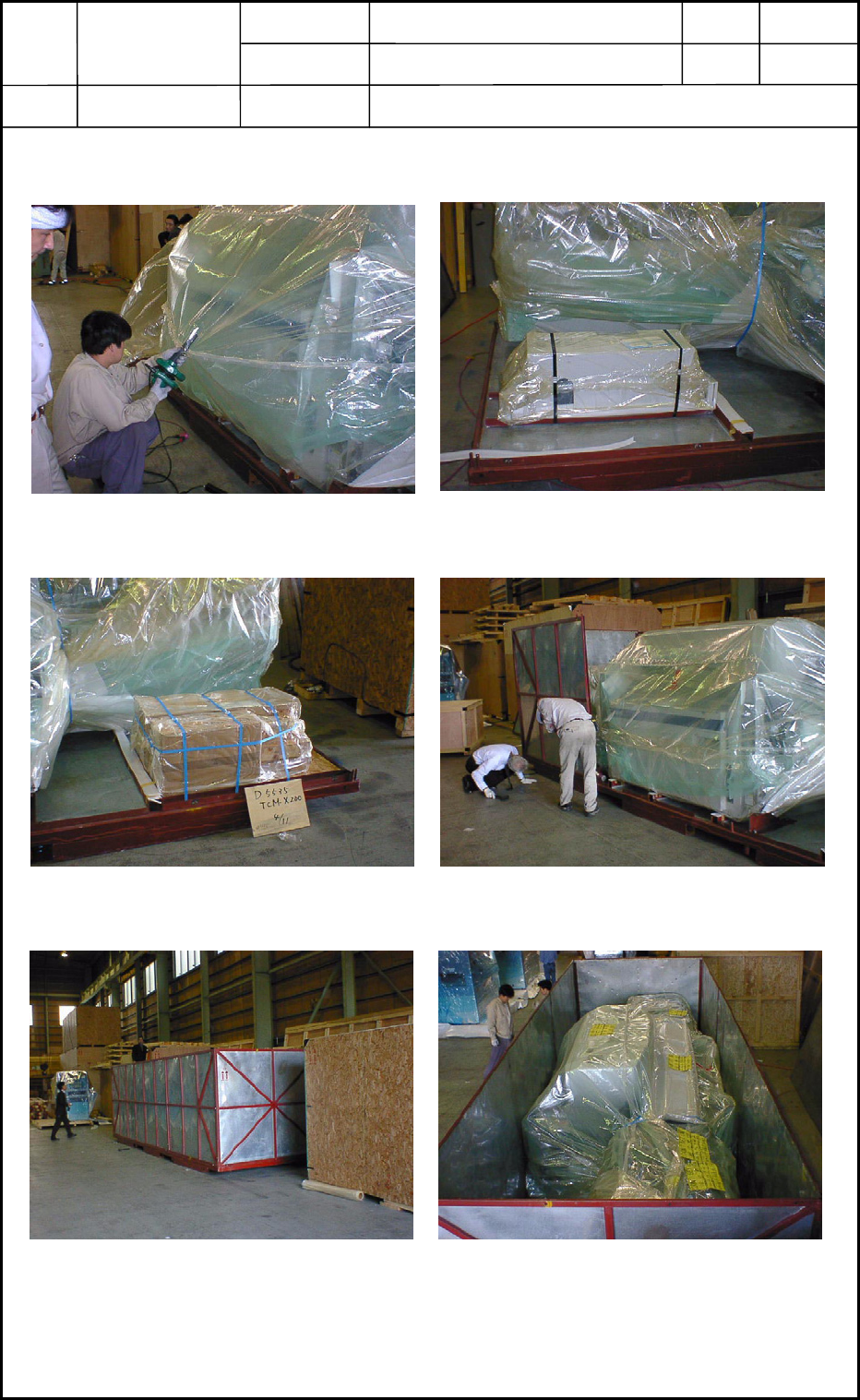

Fig. R3-14 Fastening the accessory
parts (1)
Fig. R3-15 Fastening the accessory
parts (2)
Fig. R3-16 Assembly of Steel Panels (1)
Fig. R3-17 Assembly of Steel Panels (2)
Fig. R3-18 Packaging with Steel Panels
(
Top View
)
Fig. R3-13 Air-Purged Sealing (air being
removed from inside the sheet
)
18-9
0512-001
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
2.2 Disassembly Procedure of Steel Panels (Unpackaging)
Before unpackaging, check the steel panels to see if the appearance of the steel box
is damaged.
Furthermore, as this steel box is huge, be sure to secure a good footing for safety
before unpackaging work.
• The steel box for the GXH series is constructed of the following parts.
Top Panel : 40 kg × 2 pcs.
Side Panel : 25 kg × 4 pcs.
End Panel : 20 kg × 2 pcs.
Skid Base : 320 kg × 1 pc.
Panel Mounting Bolt : M16 × 24 pcs.
Anchor Bolt : M20 × 4 pcs.
Fig. R4
End Panel
Top Panel
Side Panel
Skid Base
18-10
0512-001
