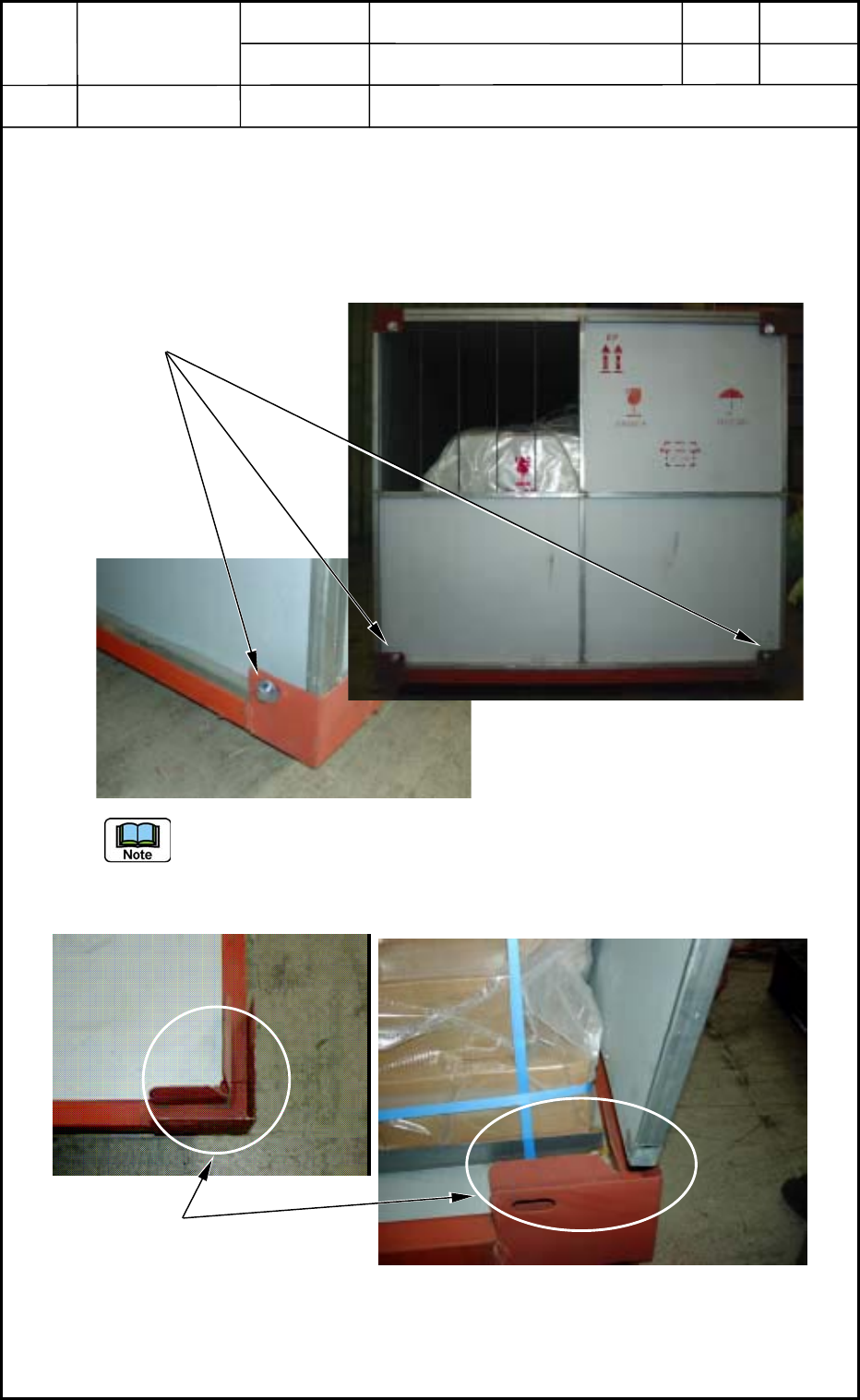

Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
2.2.2 Detachment of Side Panels
(1) Sixteen mounting bolts (M16) are used to fasten the side panels. Eight of them were
already removed to detach the top panels. Remove the remaining eight bolts from the
lower areas of the side panels.
Fig. R7
The side panels are inserted in the special grooves and self-standing. They do not fall
down after all of the mounting bolts are removed.
To detach a side panel, lift it upward as shown in Fig. R8.
Fig. R8
(2) Detach the right side panel as shown in
Fig. R9, then the left one.
(3) Detach the two side panels on the other
side.
Fig. R9
18-12
0512-001
Side Panel Mounting Bolts
Special Groove for
Self-Standing
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
2.2.3 Detachment of End Panels
(1) Eight mounting bolts (M16) are used to fasten the end panels. Four of them located on
the upper area were already removed to detach the top panels. Remove the remaining
four bolts from the lower areas of the end panels.
Fig. R10
The end panels are inserted in the special grooves and self-standing. They do not fall
down after all of the mounting bolts are removed.
To detach an end panel, lift it upward as shown in Fig. R11.
Fig. R11
(2) Detach an end panel on the other side.
18-13
0512-001
End Panel Mounting Bolts
Special Groove for Self-Standing
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model Item GXH-1
Chapter 18 Packaging
2. Packaging Procedure
2.2.4 Detachment of Accessory Parts Boxes
The accessory parts are put in the fixed boxes located on the spaces near both end panels.
Remove the metal fixtures and take out the boxes.
Fig. R12
2.2.5 Detachment of Main Body
• Remove the damp-barrier material that is used to protect the main body of the
machine.
If you use a cutter, etc., make sure not to nick the surface of the main body inside
the material.
• The main body is fastened to the skid base with four anchor bolts (M20). Remove
these anchor bolts.
Fig. R13
Metal Fixtures for
Accessory Parts Boxes
Accessory Parts Boxes
30 mm
Anchor Bolt M20
18-14
