Device Name Chip Mounter Block Name Page No. Unit Name Revision Model Item GXH-1 Chapter 4 Beam Section 0406-001 4-14
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 4 Beam Section
6. Replace of Linear Scale
6.2.3 Attachment of Y-Axis Linear Scale Holder

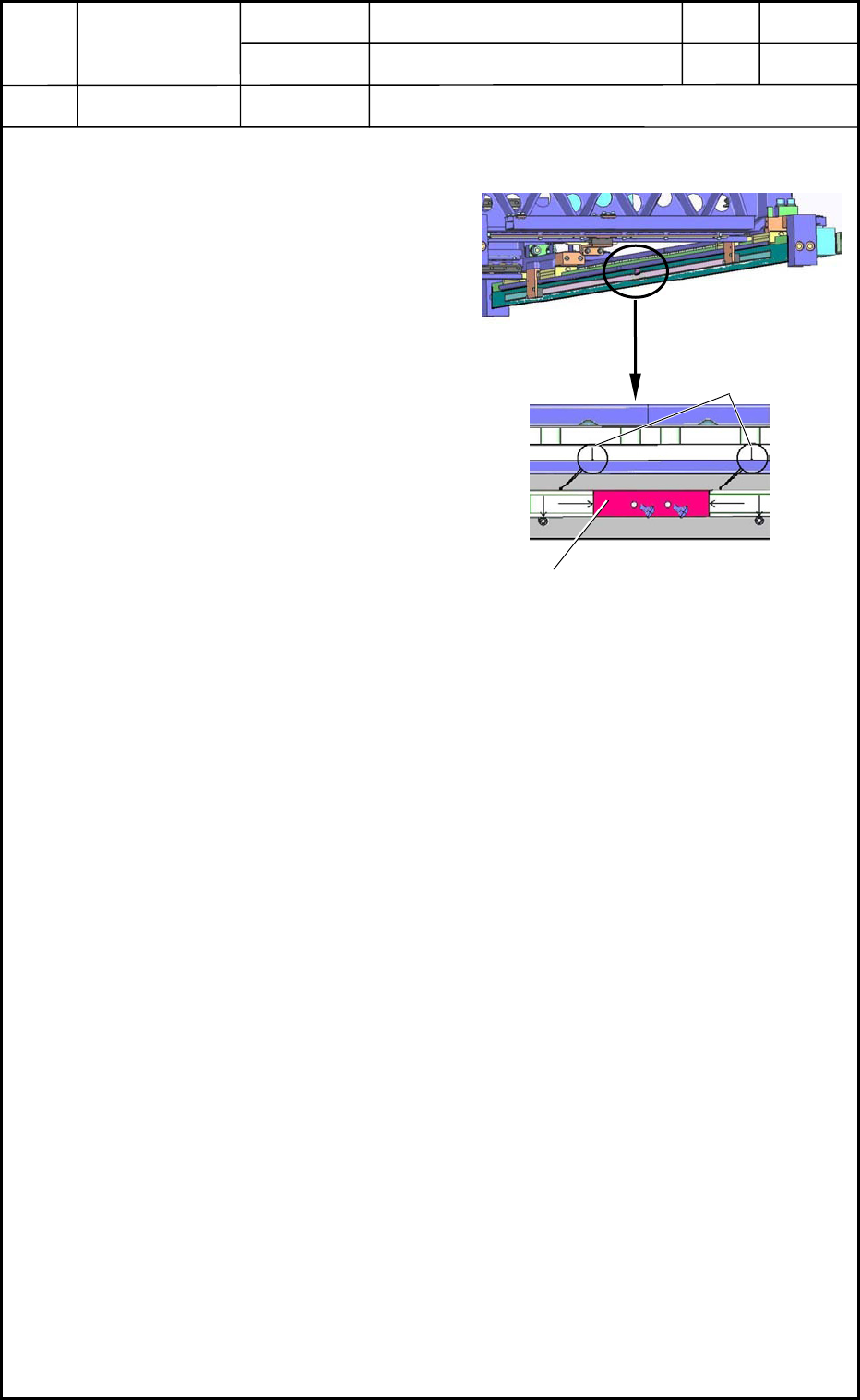

(1) Attach Block A and fix it as shown in
Fig. D29.
(2) Put a double-faced tape on the back
sides of both linear scale holders.
Make the back sides get in touch with
the positioning pins and Block A of
the linear scale holder and push the
back sides lightly against the plate.
(3) Make the dial gauge run all the way
along the side face of the linear scale
holder and adjust the difference in the
horizontal direction of the linear scale
holder for 0.1 mm or less. After that,
push the linear scale holder strong
enough to be secured.
Y-Axis Linear Scale
Magnified View
Dial Gauge
Fig. D29
Block A
0406-001
4-13
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 4 Beam Section
0406-001
4-14
Chapter 5
Head Section
This chapter describes how to replace and adjust the head
section.
• Replacement of Head Unit
• Replacement of Linear Measure Sensor
• Replacement of Doughnut Board
• Replacement of Nozzle Shaft
• Location of Each Sensor
• Adjustment of Offsets
• MSB Whole Cleaning and Lubrication Procedures
0605-002 5-A
