Device Name Chip Mounter Block Name Page No. Unit Name Revision Model Item GXH-1 Chapter 13 Layout of Electrical 6. Layout of Transfer Section Layout Fig. M56 NB Section B4201 M42 M43 B5601 B4401 B5501 M42 B4402 M55 M42 …
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
6. Layout of Transfer Section
Layout

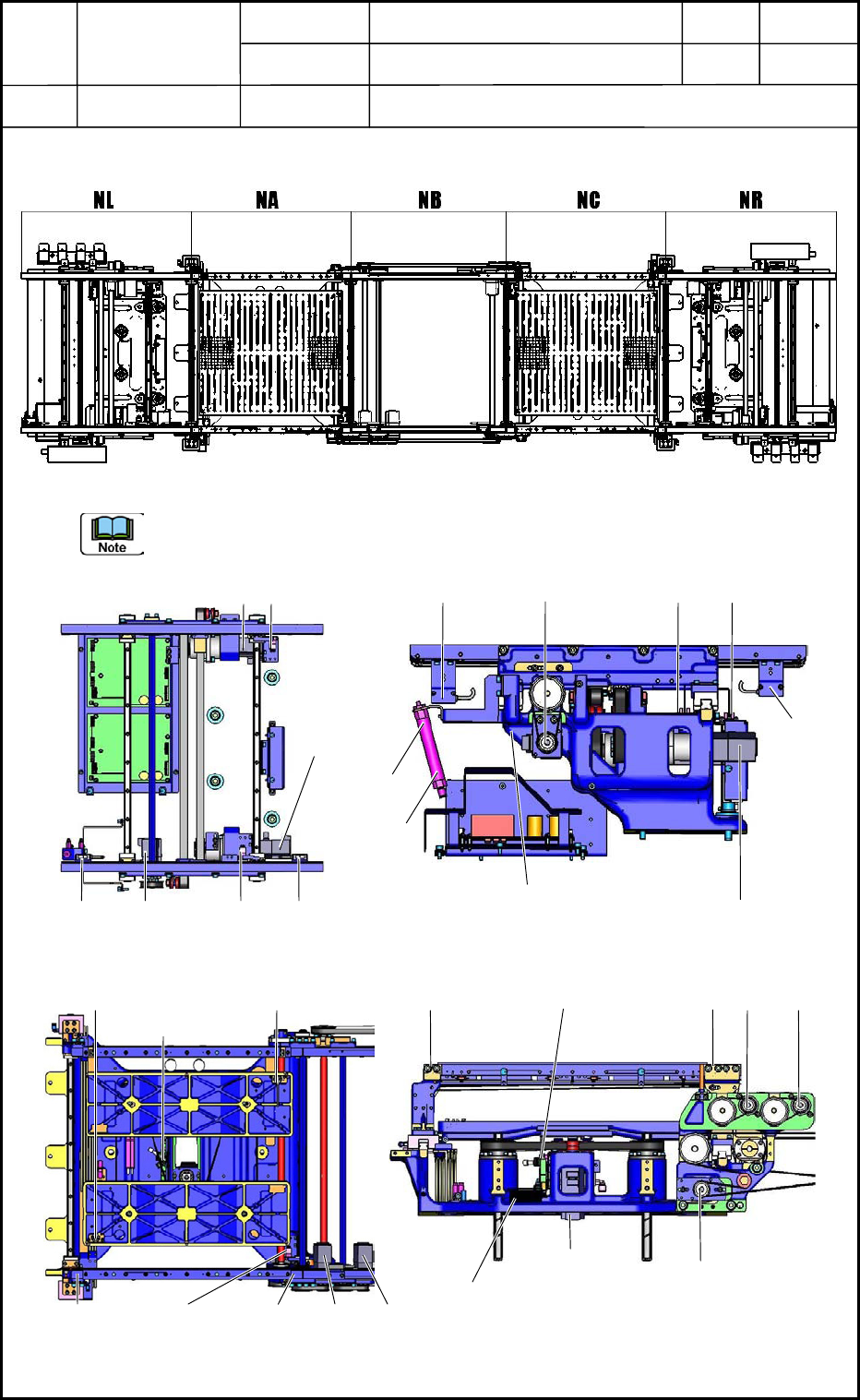

6.1 Layout of Transfer Section
The left figures below show the transfer sections viewed from the top of the machine and the
left figures below are the transfer sections viewed from the front side.
Fig. M53 Whole View of Transfer Section
Fig. M54 NL Section
M52
B5101
B4102
B4101
M41 B5201
M51
B0810
B0811
B5201
M41
B4101
B5101
B4102
M51
YSV0830
Fig. M55 NA Section
B0815 B0814
B4201
B4202
B5601
M42
M43
YSV0836
YSV0834
YSV0835
B4201 B4202
M42
M43
B5301
M53
M55
Amplifier of
B4201 and B4202
0406-001
13-18
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
6. Layout of Transfer Section
Layout

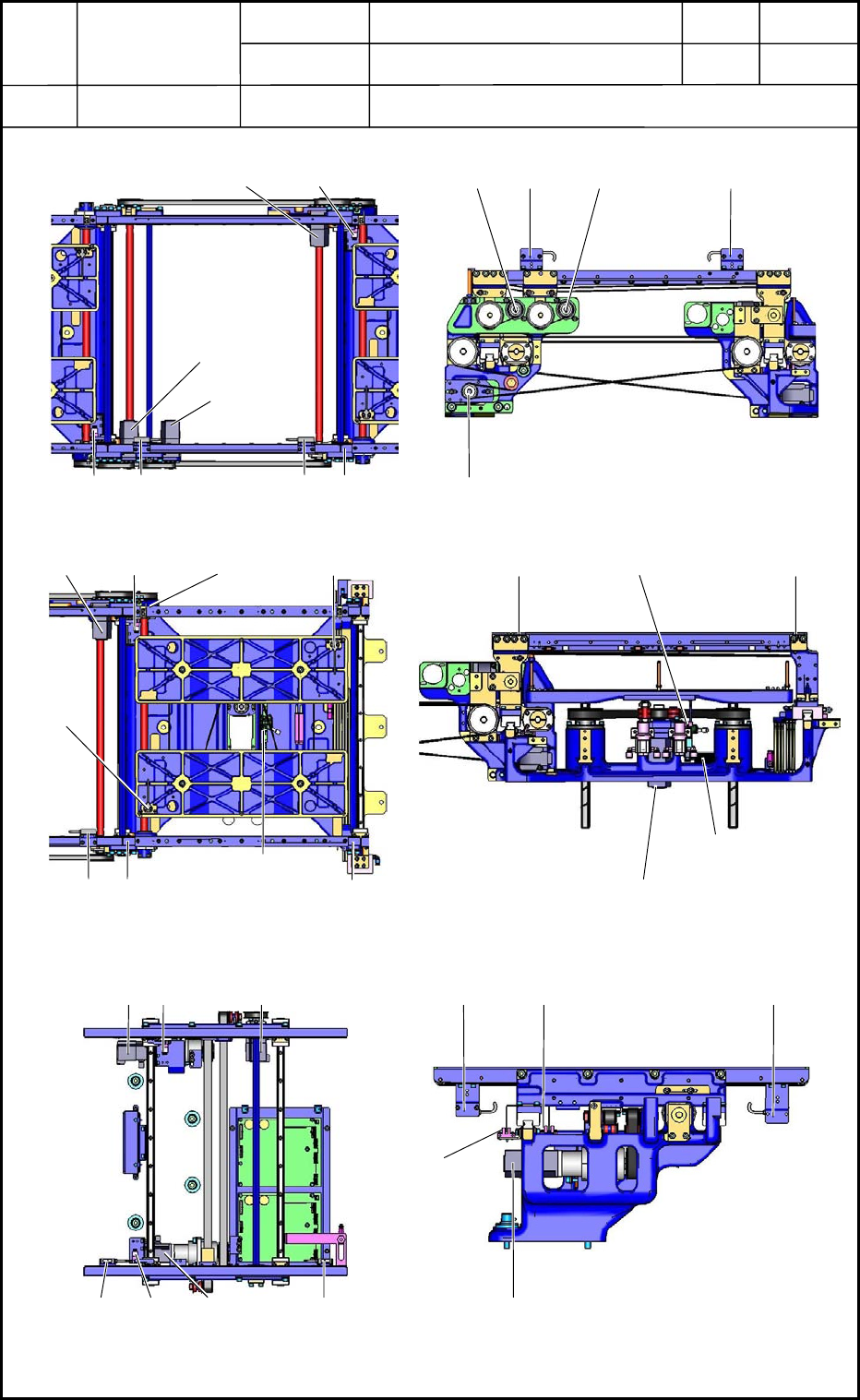

Fig. M56 NB Section
B4201
M42
M43
B5601 B4401
B5501
M42
B4402
M55
M42 M43
B4401 B4402
Fig. M57 NC Section
B4201
B4202
M53
B5301
Amplifier of
B4201 and B4202
B5501
B4402
B4201
B0815
M56
M42
YSV0836
YSV0834
YSV0835
B4202
Fig. M58 NR Section
M51
B4101
B5201
B5101
B4102
0406-001
13-19
B0814
M52
M51
B4101
B5101
B5201
M41
B4102
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
6. Layout of Transfer Section
Layout
Symbol Name
M41 Motors for Transfers in NL and NR Sections
M42 Motors for Transfers in NA and NC Sections
M43 Motor for Transfer in NC Section
M51 Width Adjusting Motor in NL and NR Sections
M52 Width Adjusting Motor in NL and NR Sections
M53 Motors for Backup Axes in NA and NC Sections
M55 Motor for Chute Width Adjusting Axis
M56 Motor for Chute Width Adjusting Axis
B4101 PCB Detection Sensors (Deceleration) in NL and NR Sections
B4102 PCB Detection Sensors (Stop) in NL and NR Sections
B4201 PCB Detection Sensors (Deceleration) in NA and NC Sections
B4202 PCB Detection Sensors (Stop) in NA and NC Sections
B4401 PCB Detection Sensor (Deceleration) in NB Section
B4402 PCB Detection Sensor (Stop) in NB Section
B5101 Chute Width Variable Sensors (+) Limit in NL and NR Sections
B5201 Chute Width Variable Sensors (-) Limit in NL and NR Sections
B5501 Chute Width Variable Sensor (+) Limit in NB Section
B5601 Chute Width Variable Sensor (-) Limit in NB Section
B5301 Backup (+) Limit Sensors in NA and NC Sections
B0814 NA and NC Backup Plate Check Sensor 1
B0815 NA and NC Backup Plate Check Sensor 2
B0810 PCB Stopper 1 Upper Limit Sensor in NL Section
B0811 PCB Stopper 1 Lower Limit Sensor in NL Section
YSV0830 PCB Stopper Cylinder Valve in NL Section
YSV0834 Z Clamp Cylinder Valves A in NA and NC Sections
YSV0835 Z Clamp Cylinder Valves B in NA and NC Sections
YSV0836 Z Clamp Cylinder Valves A in NA and NC Sections
0406-001
13-20
