Chapter 13 Layout of Electrical
1. Layout of Underframe
Layout
1.6 Layout of BR Blocks
K35
K36
K37
K38
A41
A51
G05
G02
G04
UB14
Q
205
Q
203
Q
204
Q
206
K28
K29
UB21
UA54
Rear Side
Front Side

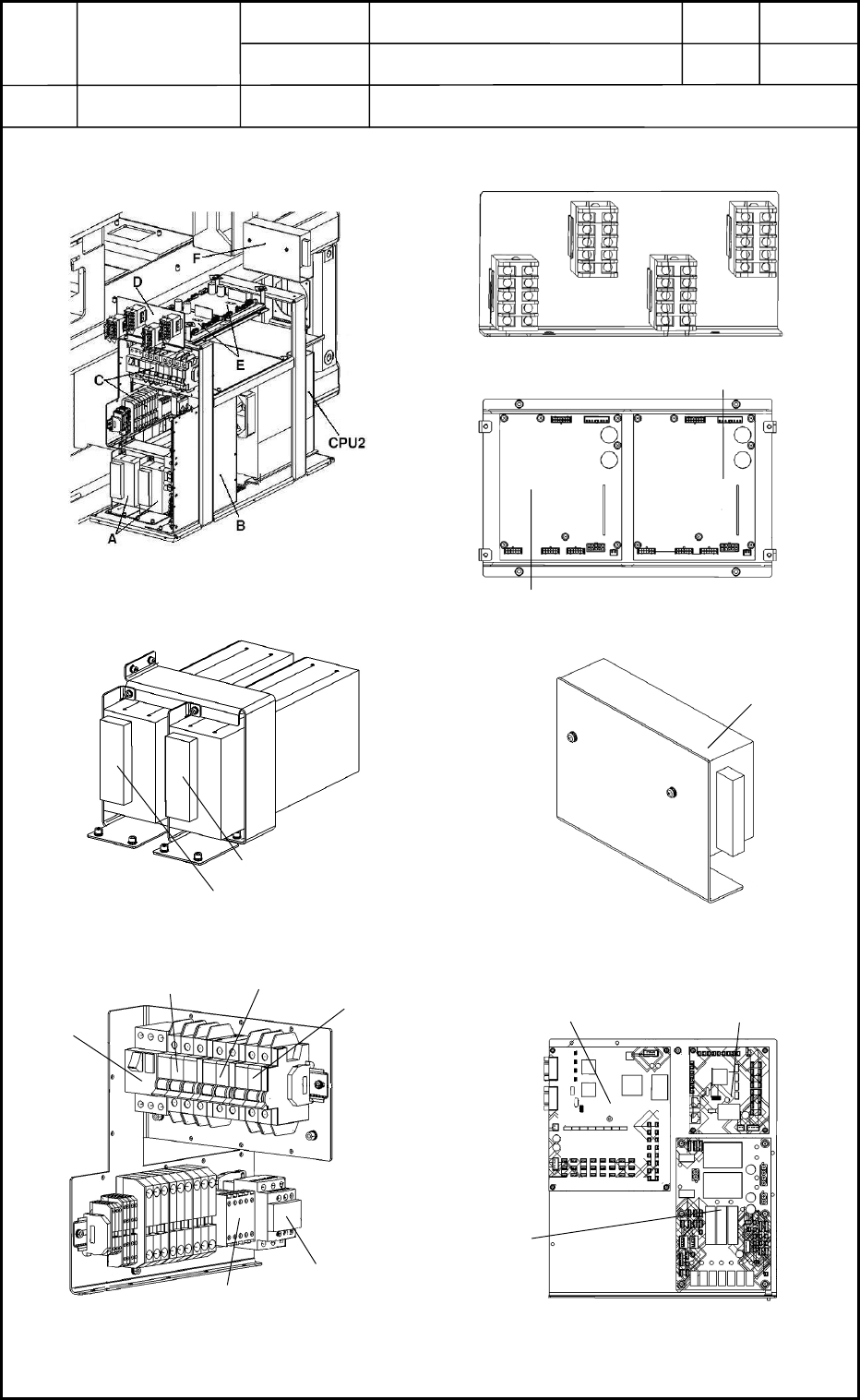

Fig. M20 Whole View of BR Block
Fig. M21 Section D
Fig. M22 Section E
Fig. M23 Section A
Fig. M24 Section F
Fig. M25 Section C
Fig. M26 Section B
0406-001
13-9
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
1. Layout of Underframe
Layout
Symbol Name
K35 Relay Switch (Conveyor Transfer NL, NA, and NB Power Supply)
K36 Relay Switch (Conveyor Transfer NL, NA, and NB Power Supply)
K37 Relay Switch (Conveyor Width NL and NB Main Power Supply)
K38 Relay Switch (Conveyor Width NL and NB Main Power Supply)
K28 Breaker (PC and Ceiling Fan Power Supply)
K29 Breaker (Vacuum Pump Power Supply)
A41 Multiaxis Board for Transfer
A51 Multiaxis Board for Chute Width Adjustment
G02 DC Power Unit (48 V for Head)
G04 DC Power Unit (24 V for Feeder)
G05 DC Power Unit (5 V for Motor in Transfer Section)
U05 ILB Board (UA54)
U12 Main Body I/O Board (UB14)
U27 Relay Board 2 (UB21)
Q203 Breaker (Backup and Cutter Power Supply)
Q204 Breaker (PC and Ceiling Fan Power Supply)
Q205 Breaker (Vacuum Pump Power Supply)
Q206 Breaker (DC Power Unit Power Supply)
0406-001
13-10
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
1. Layout of Underframe
Layout
1.7 Layout of FA Blocks
0406-001
13-11
Fig. M28 Lighting for Component Recognition
Fig. M30 Recognition Box
Fig. M32 Selector
Fig. M31 Hub
Fig. M33 CPU1
DC Power Supply
Fig. M27 Whole Component Recognition Lighting in FA Block
Fig. M29 Lighting Control Board
UB08
