Device Name Chip Mounter Block Name Page No. Unit Name Revision Model Item GXH-1 Chapter 13 Layout of Electrical 8. Layout of Head Section Layout 8.1 Layout of Head Section Symbol Nam e Symbol Nam e U37 Slip Ring B3101 N…
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
7. Layout of Beam Section
Layout
Symbol Name
U03 Amplifier Board for Linear Measure Sensor
M21 X-Axis Motor
M22 Y1-Axis Motor
M23 Y2-Axis Motor
B2101 X-Axis Limit Sensor (+)
B2102 X-Axis Limit Sensor (-)
B2201 Y-Axis Limit Sensor (+)
B2202 Y-Axis Approach Detection Sensor
B2203 Y-Axis Limit Sensor (-)
0406-001
13-22
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
8. Layout of Head Section
Layout
8.1 Layout of Head Section
Symbol Name Symbol Name
U37 Slip Ring B3101 Nozzle Selection Position Detection Sensor
U04 Doughnut Board (UB22) B3102 Nozzle Up/Down Interlock Sensor
M31 Head Rotational Shaft B3103 Head Up/Down (-) Limit Sensor
M32 Nozzle Selection Shaft B3104 Nozzle Up/Down (+) Limit Sensor
M33 Nozzle Up/Down Shaft B3105 Nozzle Up/Down (-) Limit Sensor
M34 Head Up/Down Shaft B3106 Head Up/Down (+) Limit Sensor
E39 PEC Recognition Lighting
B0413T
B0413
Linear Measure Sensor
(Light Emission)
Linear Measure Sensor
(Light Reception)
Y0401
to
Y0412
Vacuum Switching Valves (12 pcs.)
0406-001
13-23
Rear Side
Front Side
Section A
Section B
Section C
Section D

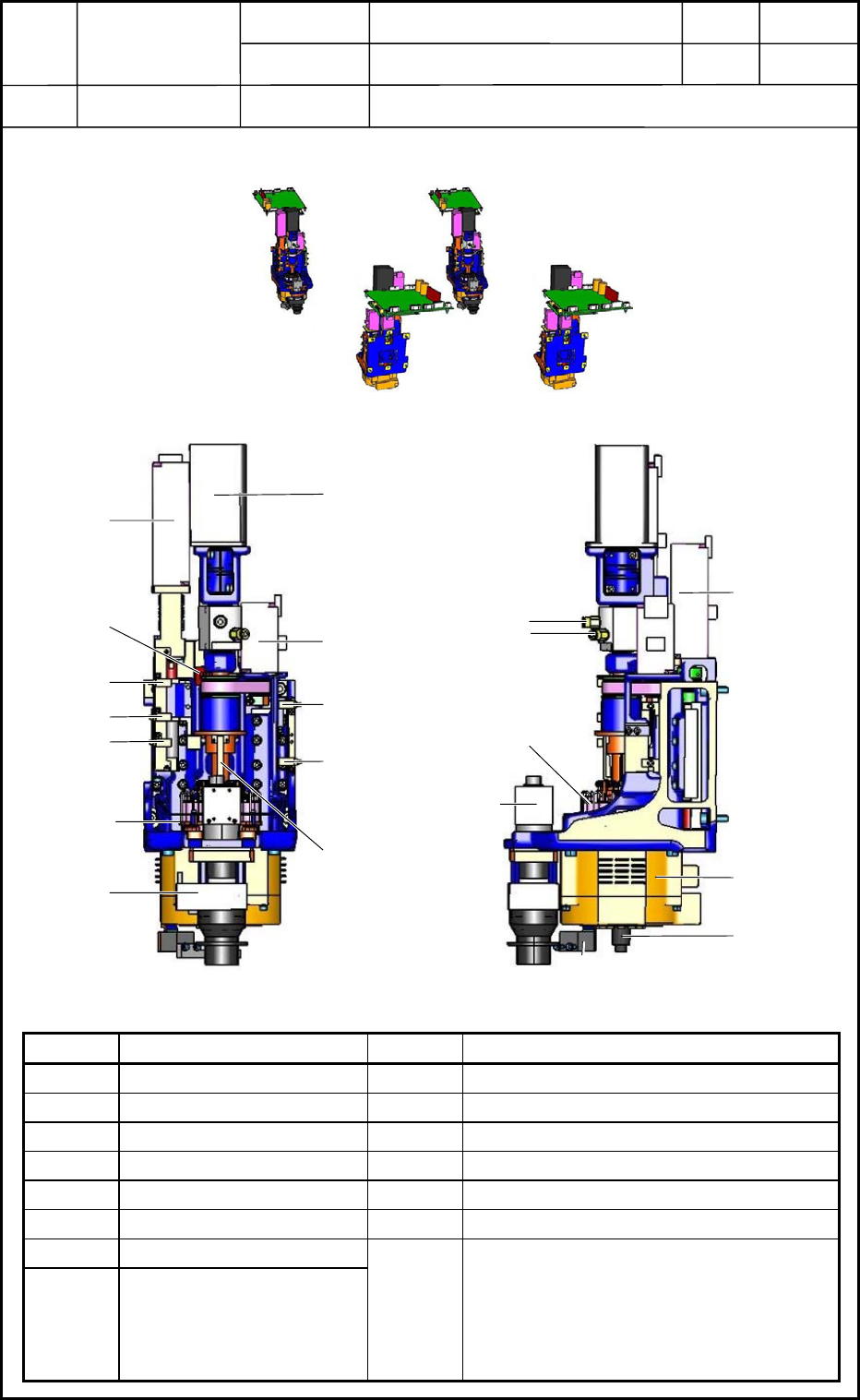

Fig. M62 Whole View of Heads
Fig. M63 Magnified View of Head
M33
U37
M32
B3103
B3106
Nozzle
Up/Down Lever
E39
B3104
B3102
B3105
B3101
U04
PEC Recognition
Camera
Vacuum
Air Blow
Y0401 ~ Y0412
M34
M31
B0413T
B0413
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
Model ItemGXH-1
Chapter 13 Layout of Electrical
9. Layout of Various Boards
Layout
9.1 Layout of Various Boards
Identification of Boards:
Symbol ID Symbols Board Name
A Board for Light Tower
UB13
B,C,D,E Board for Operation Panel
A,B,C,D Board for Cutter Positioning
E,F Board for TransferUB14
G,H Board for Power Supply Section
Front Side of Machine
Rear Side of Machine
Multiaxis Board
Multiaxis Board
Recognition Box
Fig. M64 Arrangement of Various Boards
Front Side of Machine
Rear Side of Machine
Head B
Head A
Head C
Head D
Fig. M65 Arrangement of Boards for Heads
Multiaxis Board
(A31)
Multiaxis Board
(A31)
Multiaxis Board
(A31)
Multiaxis Board
(A31)
