Chapter 1
Installation Procedure
This chapter describes how to install the machine.
• Leveling of Machine
• Installation Offset
0403-001 1-A
0403-001 1-B
Device
Name
Chip Mounter
Block Name
Page No.
Unit Name
Revision
0403-001
Model ItemGXH-1
1. Leveling
1.1 Installation Position of Level Vials
• The level vials must be installed on Areas "A", "D", "a", "b", "c", and "d" (6 places
in total). ( Areas)
• The pedestals must be mounted on Areas "1" through "6" (6 places in total).
Front Side

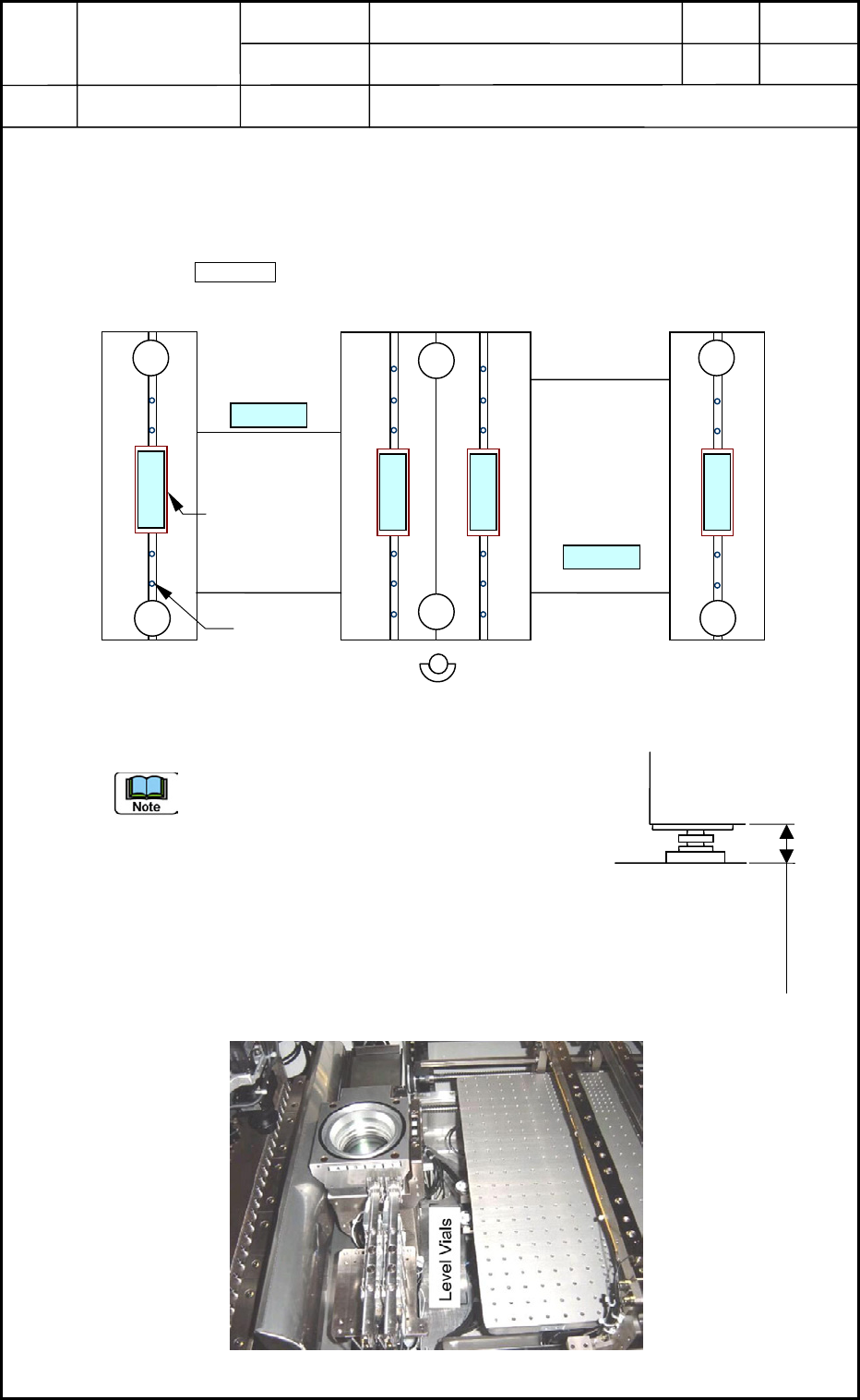

Fig. A1 Installation Position of Level Vials
(a) The jigs (flat plates) are required for Level
Vials a, b, c, and d because they are placed
on the linear guides.
(b) Confirm that the caps of the linear guides
are inserted adequately (0.1 to 0.2 mm) and
do not protrude.
(c) The target height (the distance between the
floor and the frame shown in Fig. A2) is
approximately 90 mm when the distance
between the floor and the conveyor transfer
plane is 905 mm.
Fig. A3 Installation Position of Level Vial D
A
D
5
6
2
1
3
4
bdc
a
Cap
Jig (Flat Plate)
Frame
Floor
Approx. 90 mm
Fig. A2 Distance between
Floor and Frame
Installation Procedure
1. Leveling
1-1
