Chapter 17

Servo Alarm

This chapter describes the servo alarms.

• Troubleshooting on Servo Alarm

0506-001 17-A

0506-001 17-B

Device

Name

Chip Mounter

Block Name

Page No.

Unit Name

Revision

Model Item GXH-1

Chapter 17 Servo Alarm

1. Troubleshooting on Servo Alarm

1.1 "ERROR" Window for Servo Alarm

When a servo alarm error has occurred, the following window opens.

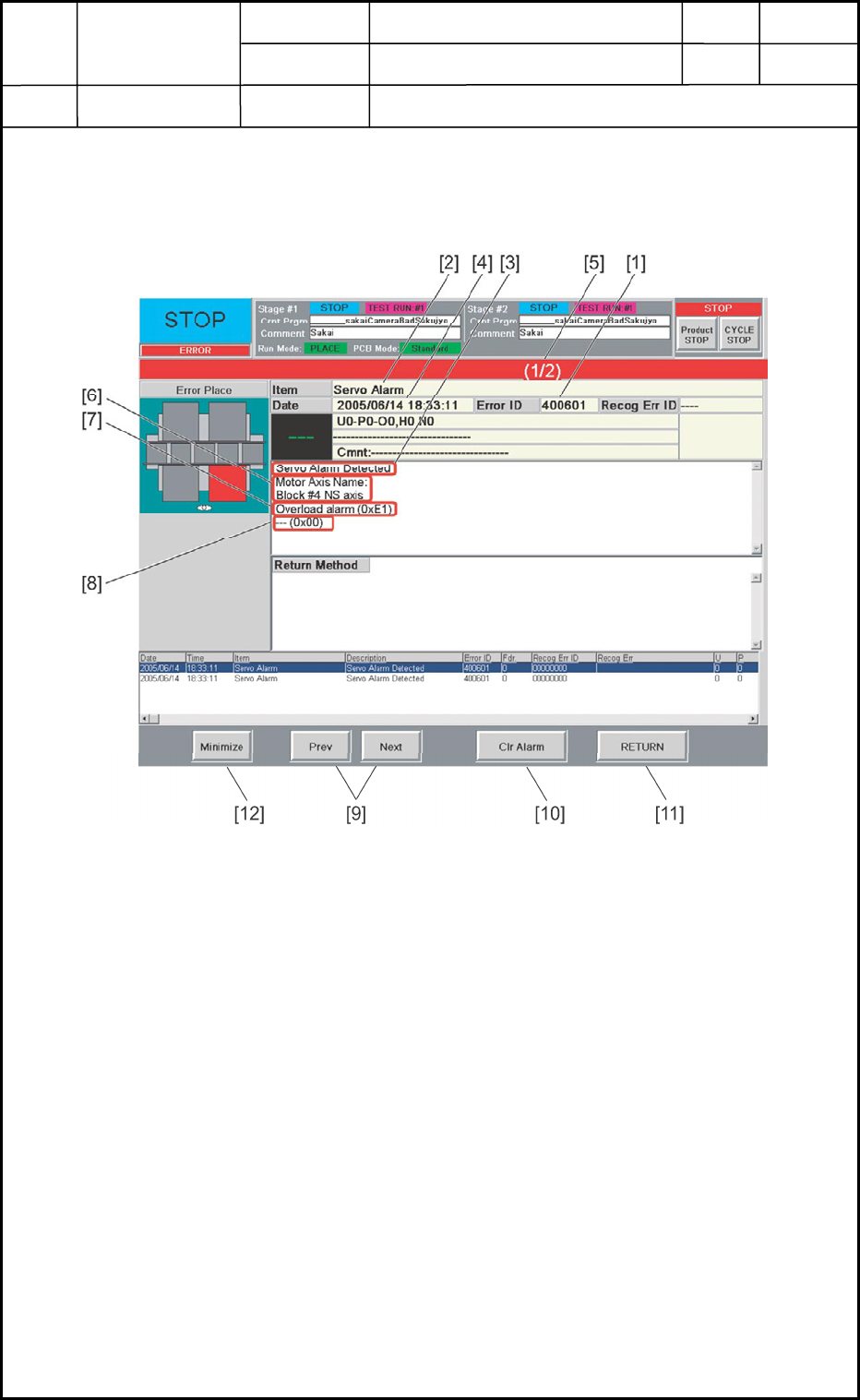

Fig. Q1 "ERROR" Window

[1] Error ID

Displayed is a string of alphanumeric characters (6 characters) that identifies an error.

When a servo alarm occurs, "400601" or "400602" will be displayed.

When an error has occurred, check the contents of the servo and operational alarms

and refer to "1.4 Servo Alarm Remedy Table" and "1.5 Operational Alarm Remedy

Table" for the remedial procedures. The contents of each alarm can be used as indices.

[2] Item

Displayed is a name of the classified element that caused an error.

When a servo alarm has occurred, "Servo Alarm" appears.

[3] Description

Displayed are the description of the error and the remedial procedures.

When a servo alarm has occurred, "Servo Alarm Detected (400601)" or "AP1 Error

Detected during Resetting of All Axes (400602)" is displayed.
