Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition 169 The station software is only allo wed to perform an automatic redu ction of the pitch setting s defined in SIPLACE Pro. The automatic c hang…
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
168

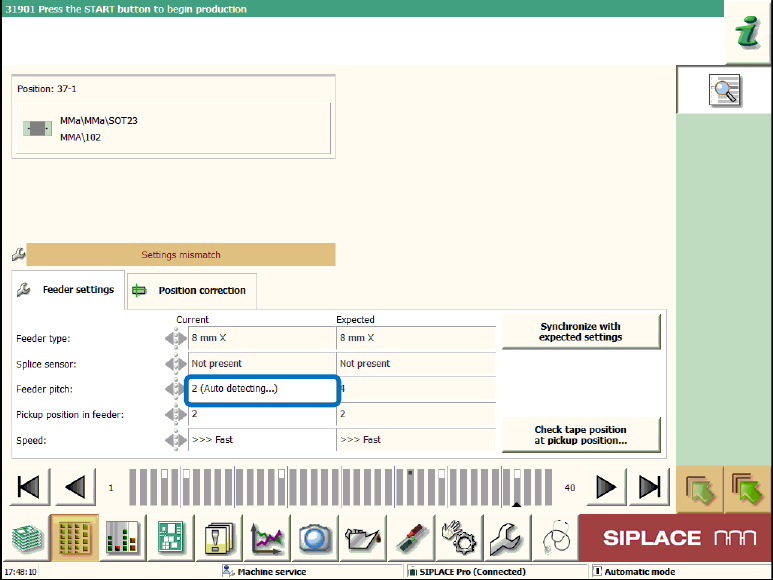

Additionally, the (Auto detecting...) supplement is displayed in the Details view under Feeder
settings.
Figure 9-13: Feeder pitch detection enabled
If the feeder pitch detection cannot be performed due to a generally reduced pickup reliability, the
Too many errors during automatic pitch detection message is displayed.
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
169
The station software is only allowed to perform an automatic reduction of the pitch settings defined
in SIPLACE Pro. The automatic change is displayed in the setup view for the locations and in the
Details view under Feeder settings on the GUI.
Figure 9-14: Setup view for the locations – Automatic pitch reduction
Figure 9-15: Feeder settings – Automatic pitch reduction
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
170
The software does not increase any pitch setting automatically. In case of incorrect detection, 50 %
of the components would be rejected. If the pitch is too small, this is displayed with the icon for
deviating parameter settings and the Pitch too small complement in the setup view of the
locations.
Figure 9-16: Setup view for the locations – Pitch too small
This will also be displayed in the Details view of the feeder under Feeder settings.
Figure 9-17: Feeder settings – Pitch too small
