Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition 170 The software does not increase an y pitch setting automatically. I n case of incorrect detection, 50 % of the components would be reje cted.…
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
169
The station software is only allowed to perform an automatic reduction of the pitch settings defined
in SIPLACE Pro. The automatic change is displayed in the setup view for the locations and in the
Details view under Feeder settings on the GUI.

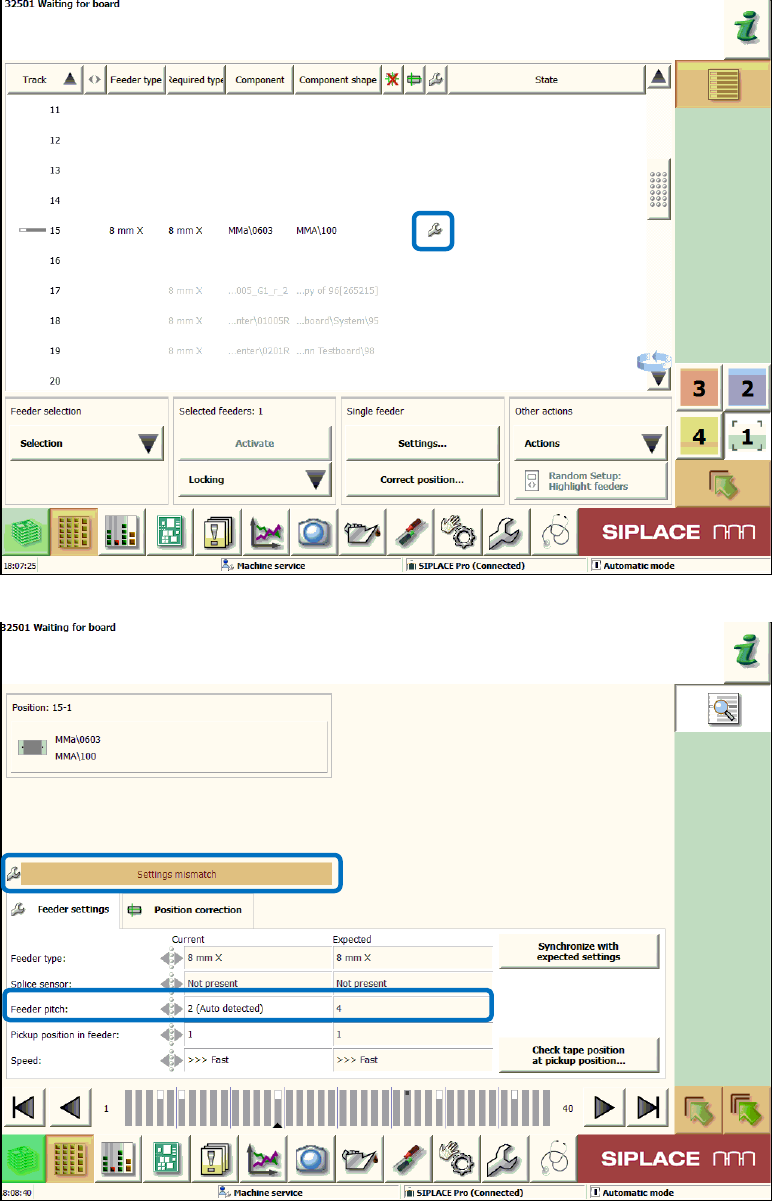

Figure 9-14: Setup view for the locations – Automatic pitch reduction
Figure 9-15: Feeder settings – Automatic pitch reduction
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
170
The software does not increase any pitch setting automatically. In case of incorrect detection, 50 %
of the components would be rejected. If the pitch is too small, this is displayed with the icon for
deviating parameter settings and the Pitch too small complement in the setup view of the
locations.
Figure 9-16: Setup view for the locations – Pitch too small
This will also be displayed in the Details view of the feeder under Feeder settings.
Figure 9-17: Feeder settings – Pitch too small
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
171
For optimum use of the function, the nominal pitch values must be set to the higher value in
SIPLACE Pro for those components that are delivered with different feeder pitches. This ensures
that the pitches are always corrected automatically by the software.
9.24 Additional Repick
Compatible mode: Complete
To prevent a machine stop, this option allows an additional repick although the value for repicks is
set to 1 in SIPLACE Pro.
An additional repick will be performed in the following cases, provided that 500 successful repicks
have been performed before (valid for each case):
– after SIPLACE Vision has recognized a material defect
– after an empty tape pocket was recognized
The option is set in the SetupCtrl.xml configuration file.
9.25 Handling of Frequent Vision Errors
Compatible mode: Complete
The display of detailed messages for frequent Vision errors has been enhanced.
In the Overview tab the same information on component and error rate is displayed as before.
In the Dumps tab the dump files are displayed. Beneath the list it can also be filtered by error
numbers and their frequency.
Figure 9-18: Frequent Vision errors – Dumps tab
