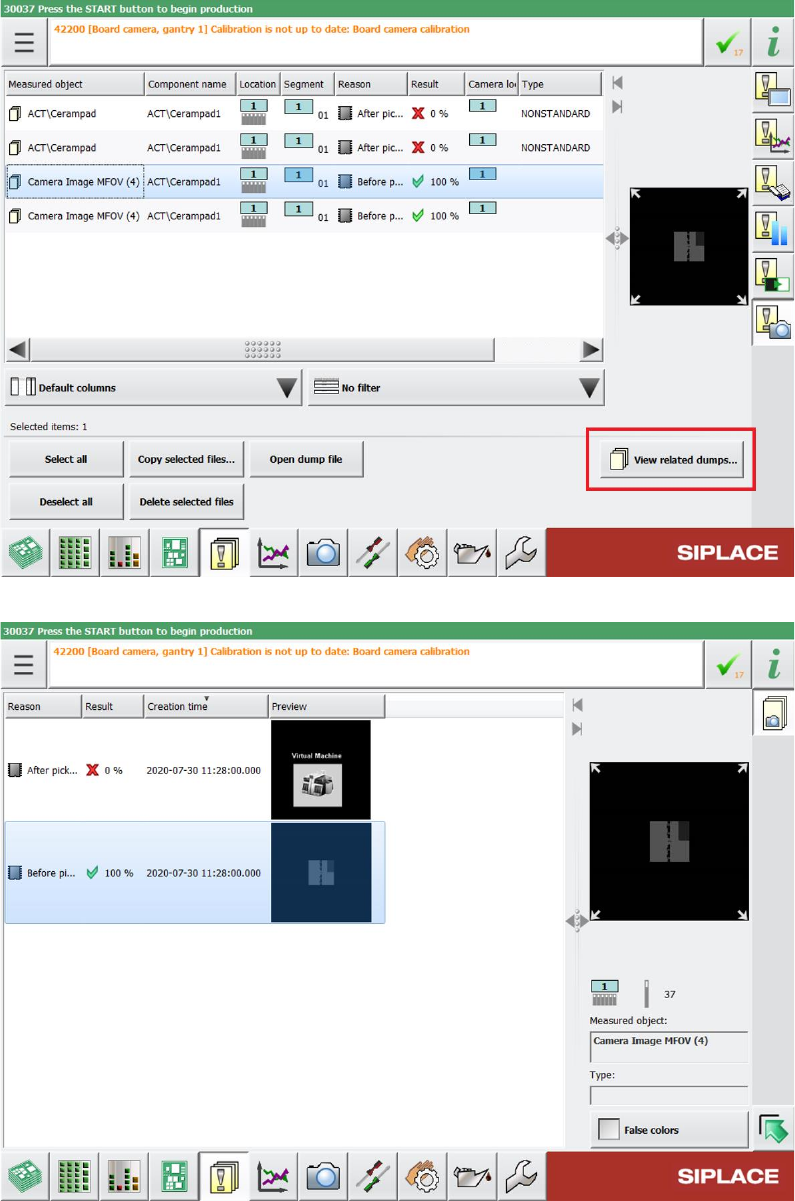

Figure 15-4: Navigating between allocated Vision dump files via View related dumps button
Figure 15-5: Related dumps dialog
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
284
15.11 Status of Fans Displayed in Station GUI for SIPLACE SX V3
Placement Machine
Compatible mode: Complete
The station GUI on SIPLACE SX V3 placement machines now displays the status of the fans. The
status of the fans can be viewed in the in the following instances:
● Warning messages that are displayed in case of low fan speed
● Fan Ports view under Manual operations – Subsystems – Inputs/Outputs
Figure 15-6: Fan status in Fan Ports view
● Check fans function under Maintenance – Preventive Maintenance and the respective
results dialog
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
285
Figure 15-7: Check fans button under Preventive maintenance
Figure 15-8: Check fans result dialog
