3 Installation

3.4 Sticking the Laser Warning Labels Into Place

102 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

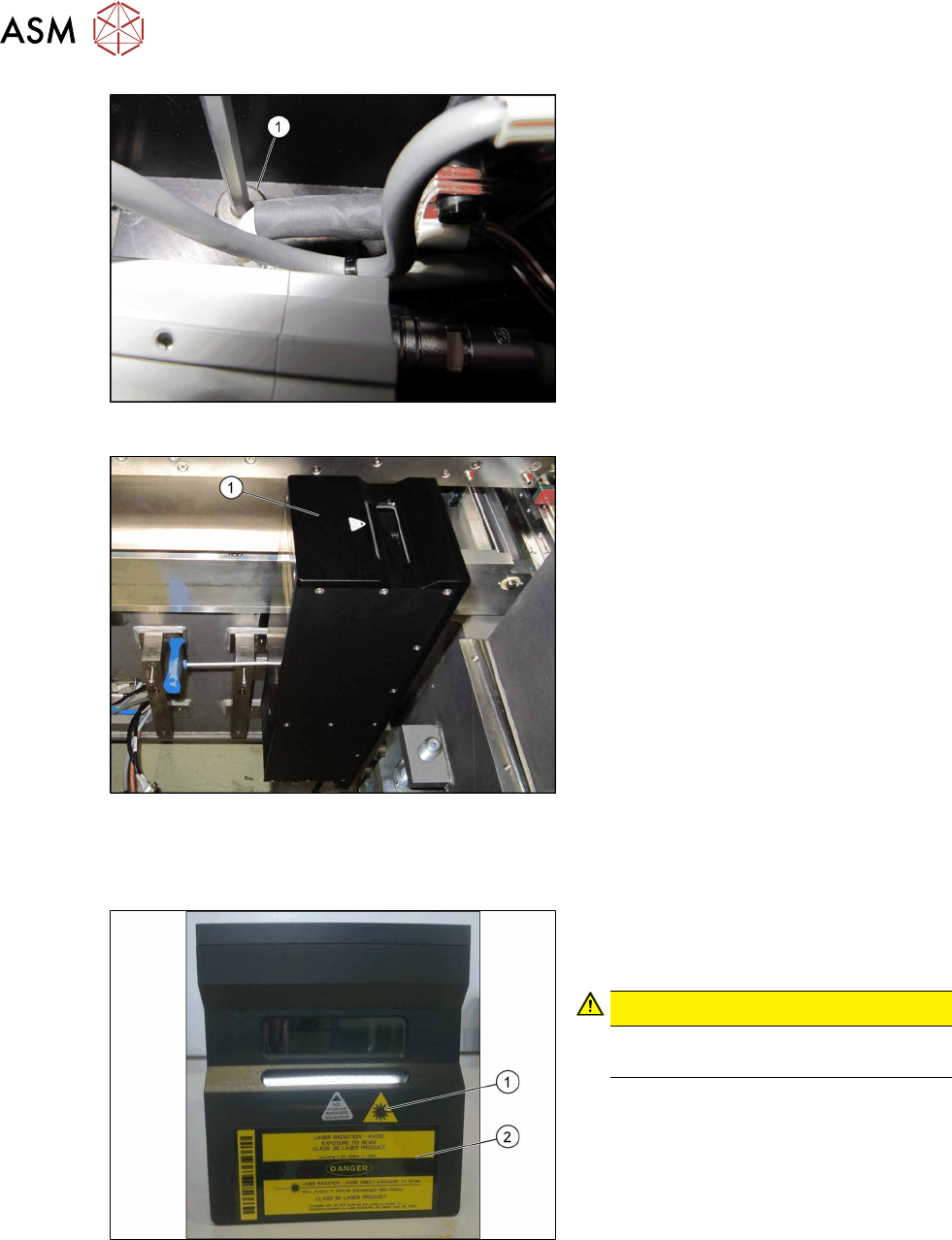

Fig.15: Inserting the fitting screws

► Insert the top fitting screws M8x12 (1),

before you fit the 3D coplanarity mod-

ule.

Fig.16: Installing the coplanarity module

► Position the 3D coplanarity module (1)

on the holder.

► Loosely insert the two lower screws.

► Tighten the screws only after all screws

have been loosely inserted.

► Fit the cover onto the 3D coplanarity

module.

3.4 Sticking the Laser Warning Labels Into Place

Fig.17: Adhesive label

► Stick both labels (1) and (2) to the top

side of the 3D coplanarity module as

shown.

 CAUTION!

Now, it is clearly visible that a class 3B

laser is installed.

3 Installation

3.5 Removing the Station Computer

Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 103

3.5 Removing the Station Computer

Up to serial no. Gxxxx:

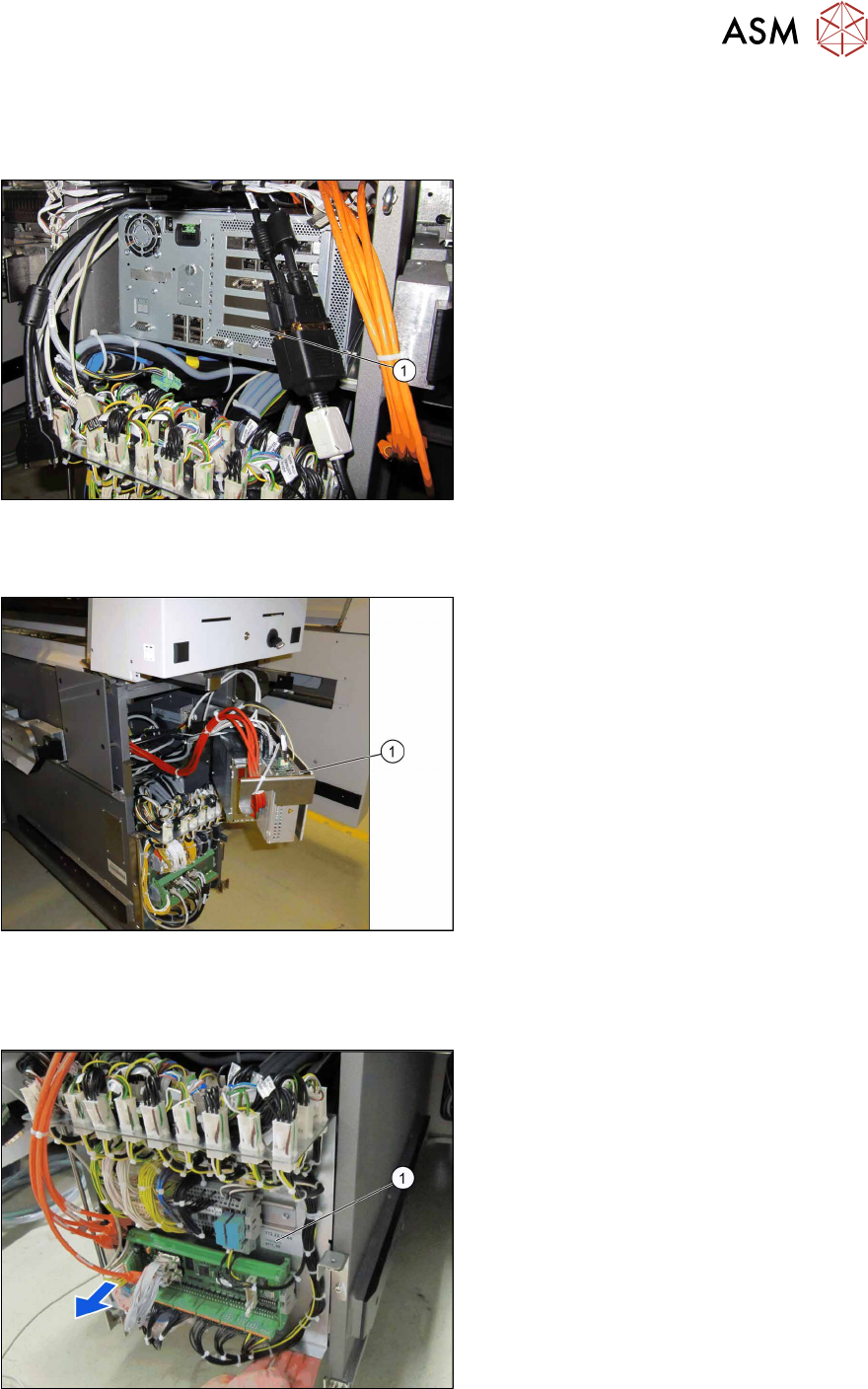

Fig.18: BoxPC (example of 827C)

► Unplug all connections of the

BoxPC(1)

. If necessary, mark their po-

sitions to make clear assignment easier

later on.

► Lift the BoxPC slightly so that it is re-

leased from the Velcro fixtures.

► Pull it out towards the front.

From serial no. Hxxxx:

Fig.19: BoxPC (example of 627C)

► Unplug all connections of the

BoxPC(1)

. If necessary, mark their po-

sitions to make clear assignment easier

later on.

► Remove the screws fastening the

BoxPC and remove the BoxPC from

the machine.

3.6 Running the cable for the coplanarity computer

Fig.20: Supply door

► Open the supply door (1).

3 Installation

3.6 Running the cable for the coplanarity computer

104 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

Fig.21: Removing the cable ties

► Remove any existing cable ties (1).

Fig.22: Power cable

Up to serial no. Gxxxx:

► Unplug the present power cable

[03076481‑xx](1)

from the station com-

puter.

► Connect the power cable [03076481-

xx] to the new "Adapter cable power

BoxPC and coplanarity PC" [03090848-

xx](2)

from the set of cables.

The "Adapter cable power BoxPC and co-

planarity PC" [03090848‑xx] is split into two

parts. It merges into a long cable and a short

cable with a connector.

► Plug the short end of the adapter cable

into the station computer.

In the next steps, the long end is run through

the machine and then connected to the co-

planarity computer.
