3 Installation 3.15 Reconnecting the Station Computer Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 125 3.15 Reconnecting the Station Computer Fig.63: Win7 adhesive label ► Reconnect the …
3 Installation
3.14 Installing station software 7xx on the coplanarity computer
124 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
Fig.60: Configurator: Installation 3
► Select the configuration 70x Coplan
Vision computer.
ð The "Coplan Vision Computer" in-
stallation will be started.
► Follow the instructions on the screen.
► After successful installation, remove
the CD.
► Insert the station software CD. If the
station software does not start automat-
ically, run the EXE file from the station
software CD.
Fig.61: SIPLACE Choice Center dialog
► Go to the SIPLACE Choice Center
dialog and click on the Coplan Vision
computer(1) icon, to start the installa-
tion.
► Acknowledge all following popup win-
dows with Accept
, until the installation
has been completed.
► Check the network settings for the LAN
connection. The connection must be
set to Connected
.
► If the connection is not set to Connec-
ted, make sure that the LAN cable has
been correctly connected to the station
computer.
Fig.62: Device manager
► Perform a restart.
► Check the Devices Manager (System
Control), to make sure that the camera
link card from National Instruments(1)
has been properly recognized.
► Shut down the computer and switch off
the machine.
3 Installation
3.15 Reconnecting the Station Computer
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 125
3.15 Reconnecting the Station Computer

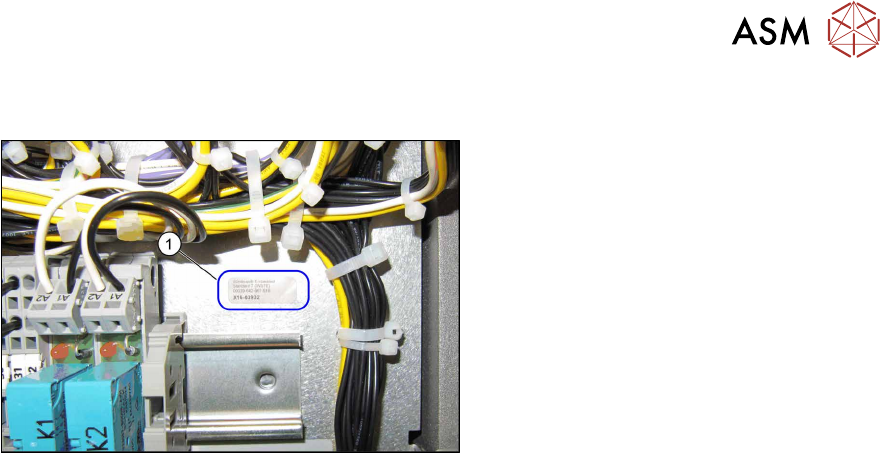

Fig.63: Win7 adhesive label
► Reconnect the monitor and keyboard to
the station computer.
► Wire the machine according to the ori-
ginal configuration.
► Switch the station computer on again.
► Stick the Win7 label (1) supplied onto
the supply unit, so that it is easily seen,
next to or under the coplanarity com-
puter label.
3.16 Configuring the LAN card in the station computer (from
Hxxxx)
► Switch on the machine.
On the station computer, configure the IP settings for the LAN card as follows:
► Log on as administrator.
► Connect the LAN cable of the coplanarity computer [03103204‑xx] to X3 (see overview of con-
nections3.10
"Fitting the station computer (from Hxxxx)" [}115]).
ð In the Control Panel → Network and Internet → Network Connections menu, you now
find two new network connections (Local Area Connection).
ð The connection that is not connected is indicated by a red cross.
► The connection that is connected does not have a red cross. Rename this connection into
"Connection to machine LAN".
► Configure the IP address 192.168.255.249 and the subnet mask 255.255.255.240 for this
connection.
3 Installation
3.17 Commissioning with SW 70x
126 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
3.17 Commissioning with SW 70x
3.17.1 Adapting the Configuration

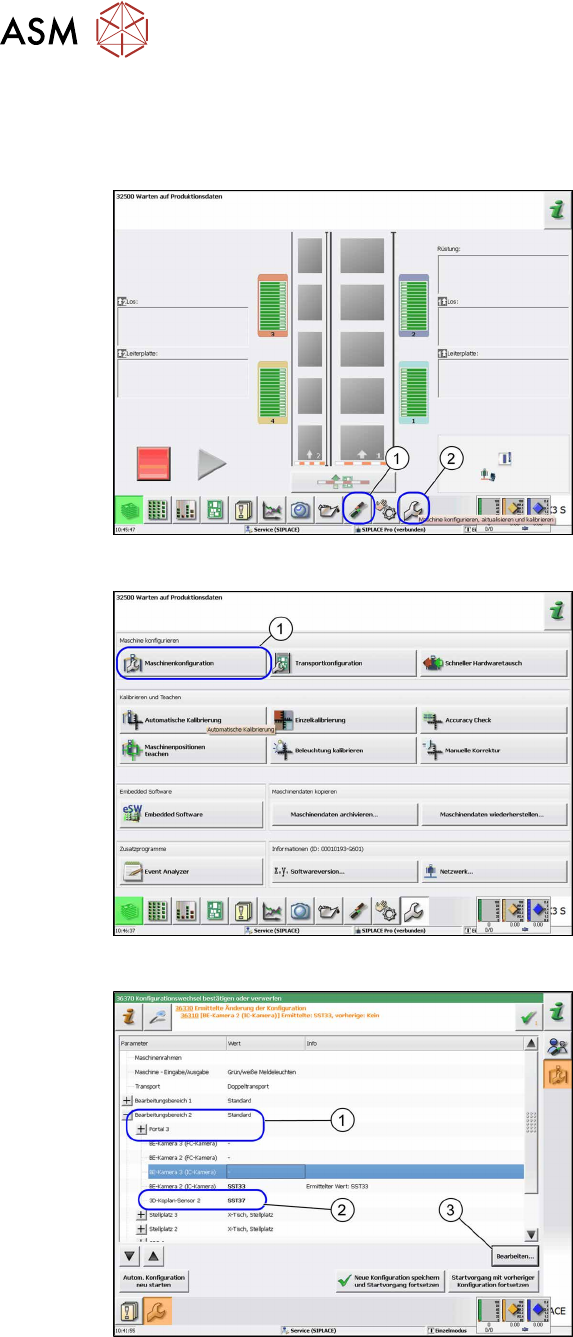

Fig.64: Start screen
► Switch on the machine.
► Reboot the station computer.
► Click on the Settings and Options (1)
icon.
► Log in as Service.
► Click on the Configure, update and
calibrate the machine (2) icon.
ð The Configure, update and cali-
brate the machine view will be
shown.
Fig.65: Machine configuration
► Go to Configure machine and click on
Machine Configuration
(1).
ð The Machine Configuration view
will be shown.
Fig.66: Example of SIPLACE X2 S, X3 S
► Switch over to the processing area 2
(1).
► Switch over to 3D coplanarity sensor
2.
► Click on the Edit (3) button or click in
the (2)
field to open a list.
► Click SST37 (2) in the list.
► Click on the Save changes and re-
start machine button.
