3 Installation 3.12 Installing the Coplanarity Computer 118 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 3.12 Installing the Coplanarity Computer CAUTION Highly Sensitive Electrostatic De…
3 Installation
3.11 Installing the station computer (up to Gxxxx)
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 117

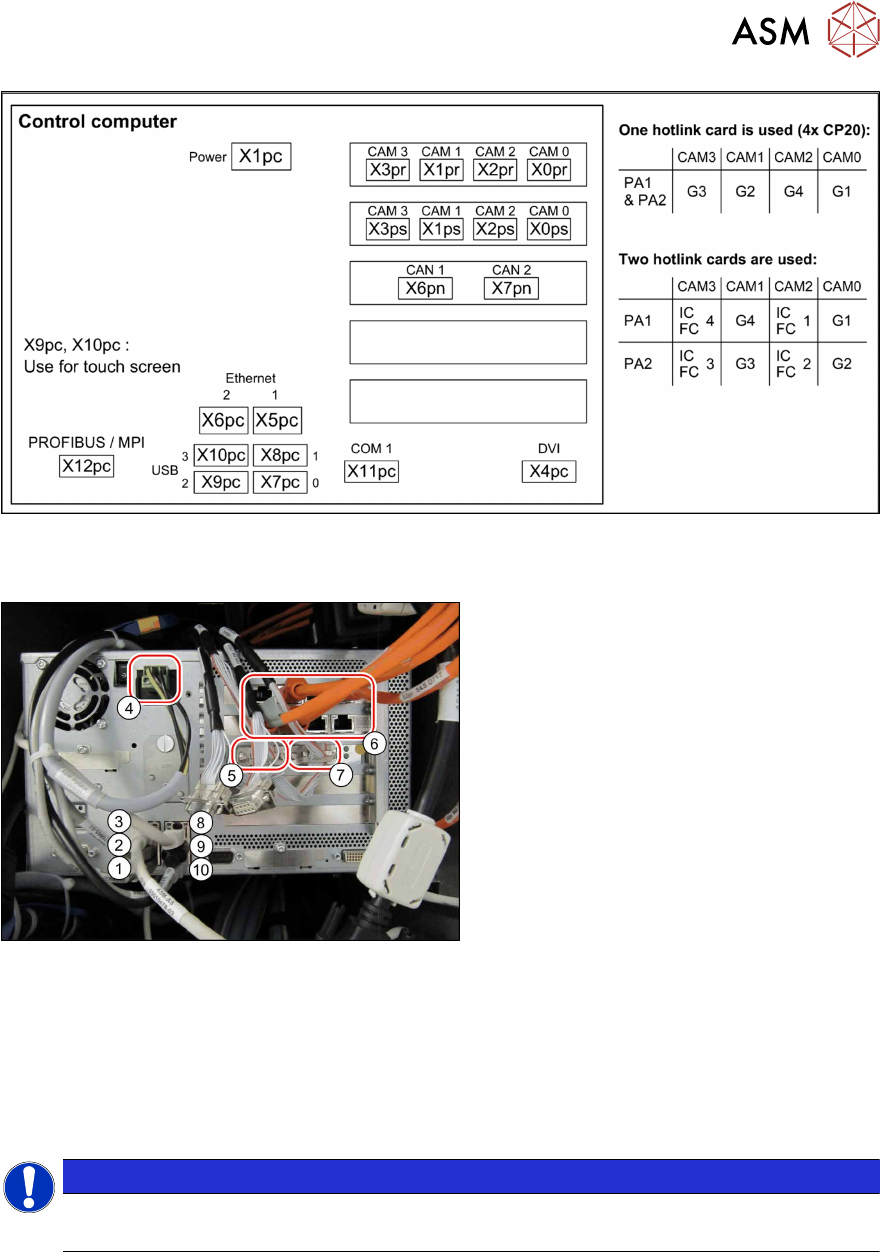

Fig.42: Connections for BoxPC 627x/827x
Connecting the cables to the station computer
Fig.43: Connections on the station computer
► Connect the cable [03076862-xx] to the
USB connection at the bottom right
(10)
.
► Connect the cable [03076864-xx] to the
connection on the right, above the USB
cable (9)
.
► Connect the touchscreen cable
[03076865-xx] on the left, next to the
cable [03076864-xx] (2)
.
► Plug in the touchscreen cable
[030766866-xx] on the left, next to the
USB cable (1)
.
► Plug in the BoxPC voltage supply (4).
► Plug in the CAN bus cable x6pn on the left, to the CAN bus card connection CAN1 (5).
► Connect the CAN bus cable x7pn to the CAN2 (7).
► Plug in the Vision cables (6).
► Plug the newly fitted LAN cable into the right port (8).
► Plug the SIPLACE Pro LAN cable into the left port (3).
NOTICE
Monitor
Do not plug in the monitor cable yet.
3 Installation
3.12 Installing the Coplanarity Computer
118 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
3.12 Installing the Coplanarity Computer
CAUTION
Highly Sensitive Electrostatic Devices
Observe the instructions in section 1.3.3 "ESD guidelines" [}91].
3.12.1 Preparing the Coplan Computer
Fig.44: Removing the cover (BoxPC 627 shown as exam-
ple)
► Remove the screws (1) of the cover on
the coplanarity computer.
► Remove the cover.
Fig.45: Inserting the RAM (BoxPC 627C)
Fig.46: Inserting the RAM (BoxPC ABP402-A iBase)
► Insert the RAM extension "SDRAM
DDR3 PC3-8500 2GB" [03099405-xx]
into the slot(1)
. Make sure that it fits
correctly.
3 Installation
3.12 Installing the Coplanarity Computer
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 119
Fig.47: Inserting the interface board (BoxPC 627C shown as
example)
► Insert the new "camera link interface NI
PCI-1428" board [03052591-xx] (1)
into
the slot(2)
. Make sure that it fits cor-
rectly.
Fig.48: Converting the plug-in card support
► iBase BoxPC only: Remove the plug-
in card support(1)
from the left side
and fit to the right side. If you do not do
this, parts on the camera link interface
could be damaged.
Fig.49: Fitting the cover (BoxPC 627C shown as example)
► Close the cover of the coplanarity com-
puter.
► Tighten the screws(1).
