3 Installation
3.17 Commissioning with SW 70x
132 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
From SW 712.x

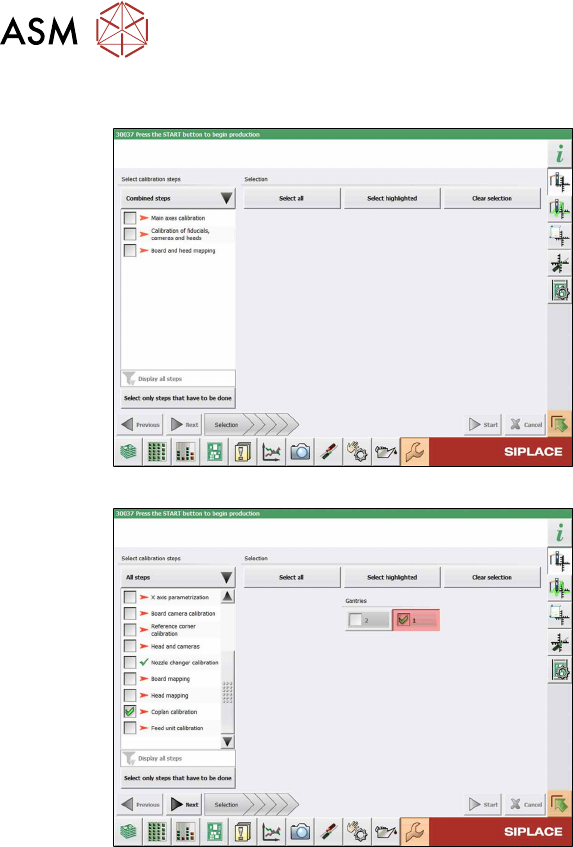

Fig.79: Calibration (combined steps)
Fig.80: Calibration (all steps)
You can choose between Combined steps
and All steps.
The procedure for All steps is described
below.
► Go to Select calibration steps and se-
lect All steps
.
► Select Coplan Calibration.
► Select the relevant gantries and then
click on the Next
button.
Follow the instructions on the next pages.
► The next step is to check the calibration
conditions (calibration tool etc.). Follow
the instructions provided.
After this step, the calibration will begin. All
required intermediate steps will be per-
formed automatically.
3 Installation
3.17 Commissioning with SW 70x
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 133
3.17.4 Performing the MFU
Perform a 3D coplanarity MFU with the FCCS tray.

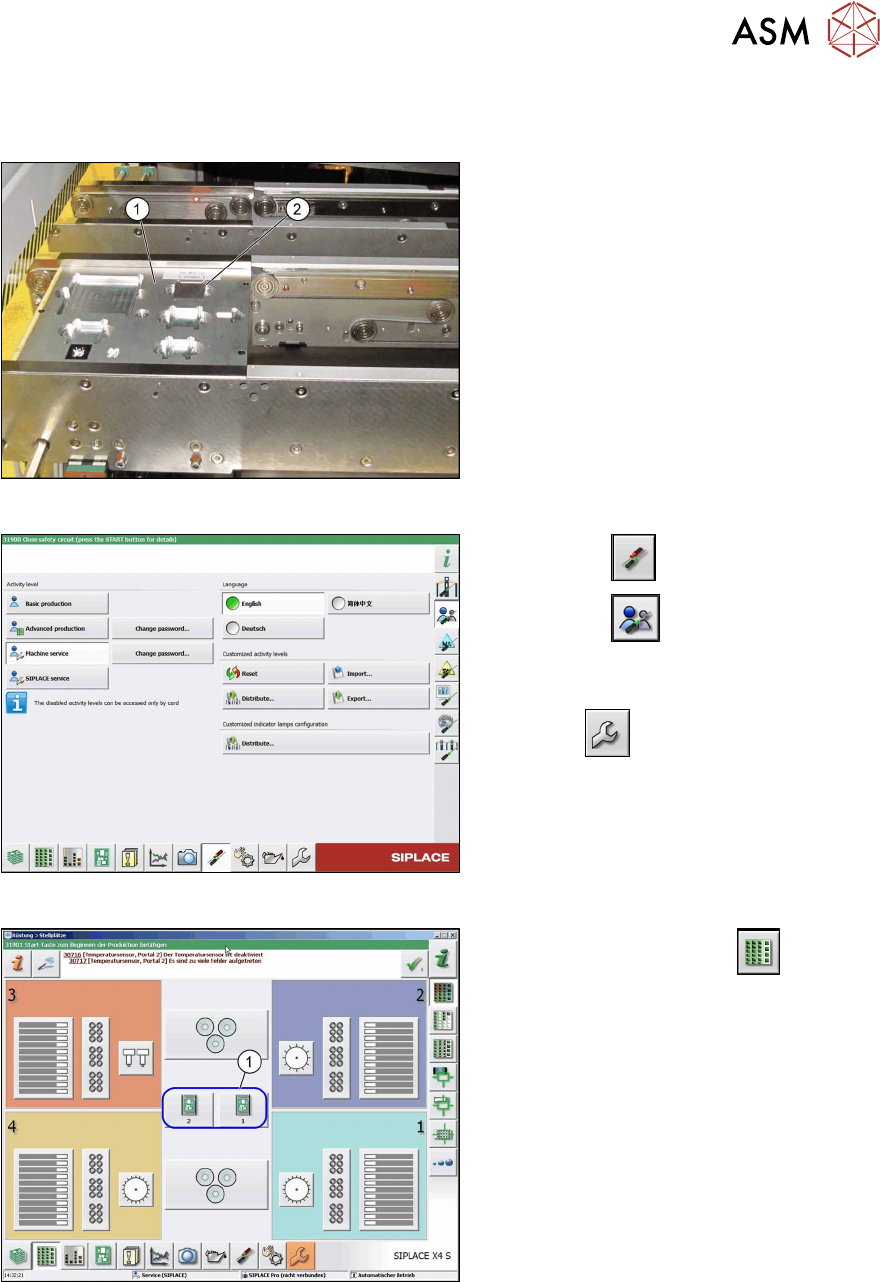

Fig.81: Input conveyor with FCCS tray
► Replace the nozzles on the TwinHead
for nozzles of type 519.
► Place the FCCS tray (1) on the input
conveyor of the machine.
► Place the MFU tool into the marked
groove (2)
.
Fig.82: Select operator level
► Select the button.
► Select the button.
► Switch over to the operator level Ma-
chine service.
ð The button will be shown.
Fig.83: View: setup locations
► Switch over to the menu .
► Select the relevant location(1).
ð The placement section view will be
opened.
3 Installation
3.17 Commissioning with SW 70x
134 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

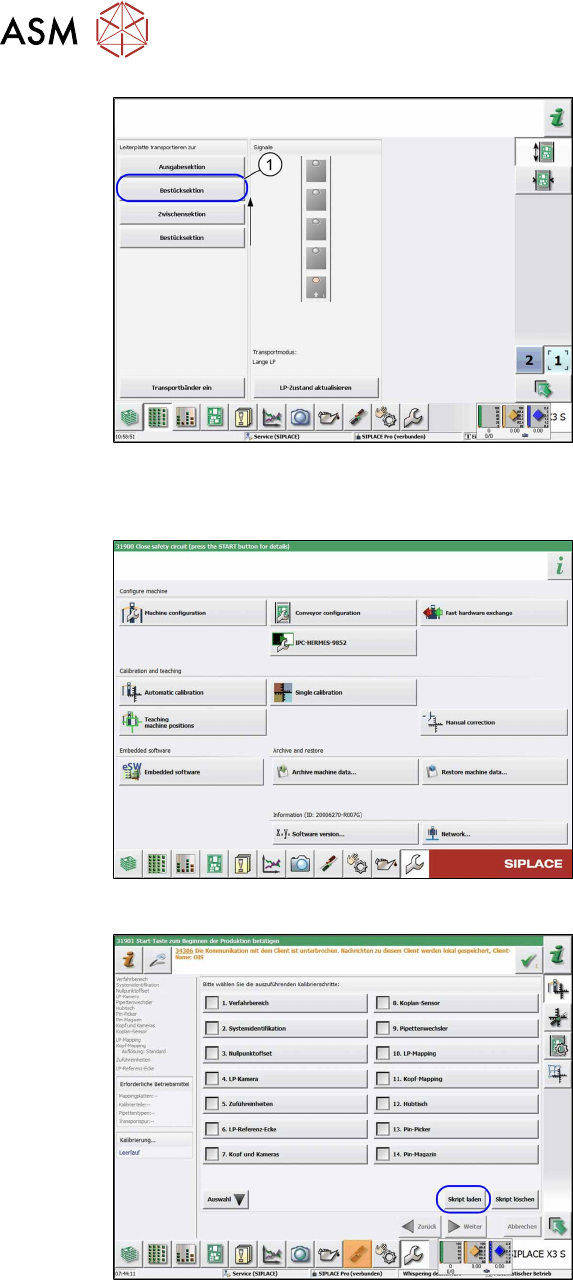

Fig.84: Placement sections view
► Click on the following buttons in se-
quence Placement section, Interme-
diate section and Placement sec-
tion(1).
ð The board moves into placement
section 2.
Up to SW 711.x
Fig.85: Automatic calibration
► Select the Automatic calibration but-
ton.
ð The calibration selection view will be
opened.
Fig.86: Calibration step "coplanarity sensor" option
► Go to the Automatic calibration menu
and select the Load script
button.
ð The Load calibration scripting file
view will be opened.
