IC Camera Type 33: Fixing the Camera Module

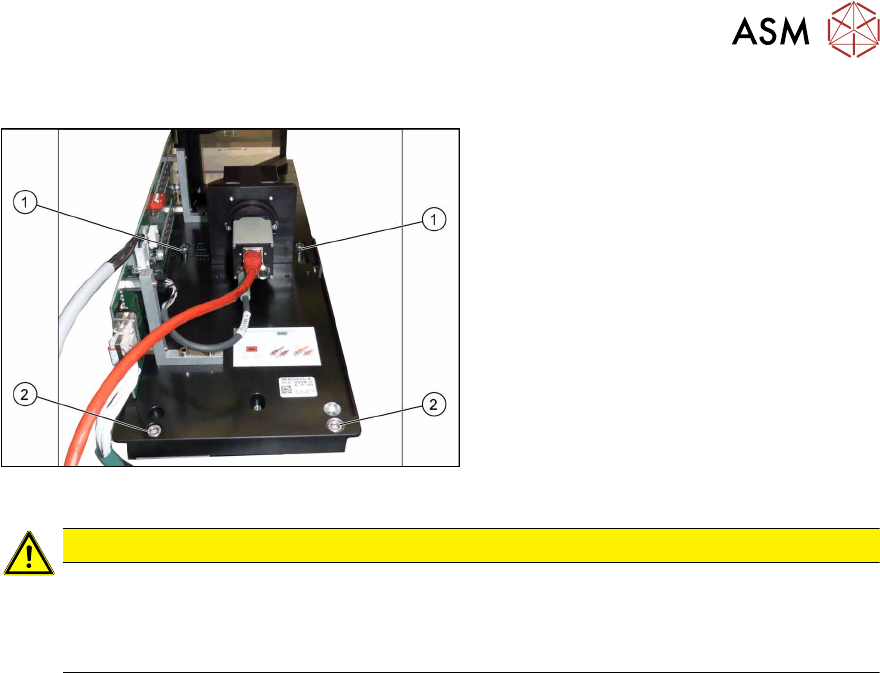

Fig.105: Lower section of camera

► Hook the upper holes (1) on the lower

section of the camera onto the screws

already fitted.

► The camera can only be fitted at one

height. Fix the lower section of the

camera accordingly with the two bot-

tom screws(2).

► Tighten all four screws.

CAUTION

Observe the installation height

After installation, check the installation height. The camera may not protrude over the upper

edge of the conveyor!

Otherwise there is the danger of a crash!

Locations 2 and 3

► If you do not have to install an FC camera at the same location, continue by attaching the

camera cables (see section Connecting the Cable).

► If you also install an FC camera at the same location, proceed with section Fitting the FC

Camera of Type 25 - Location 2 and 3

Locations 1 and 4

► Continue by attaching the camera cables (see section Connecting the Cable).

4 Appendix

4.3 Excerpt from the assembly instructions "SIPLACE X-Series S - stationary camera type

25/33" [00197397‑xx]

146 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

4.3 Excerpt from the assembly instructions "SIPLACE X-

Series S - stationary camera type 25/33" [00197397‑xx]

The following chapter shows excerpts from the assembly instructions. More details can be found in

the assembly instruction manual itself.

4.3.1 Fitting the Camera

Configurations

IC cameras of type 33 can be installed at all four locations (exception: no installation at PA1 pos-

sible at SIPLACE X4i S).

FC cameras of type 25 can only be installed at locations 2 and 3, only in combination with IC cam-

era type 33.

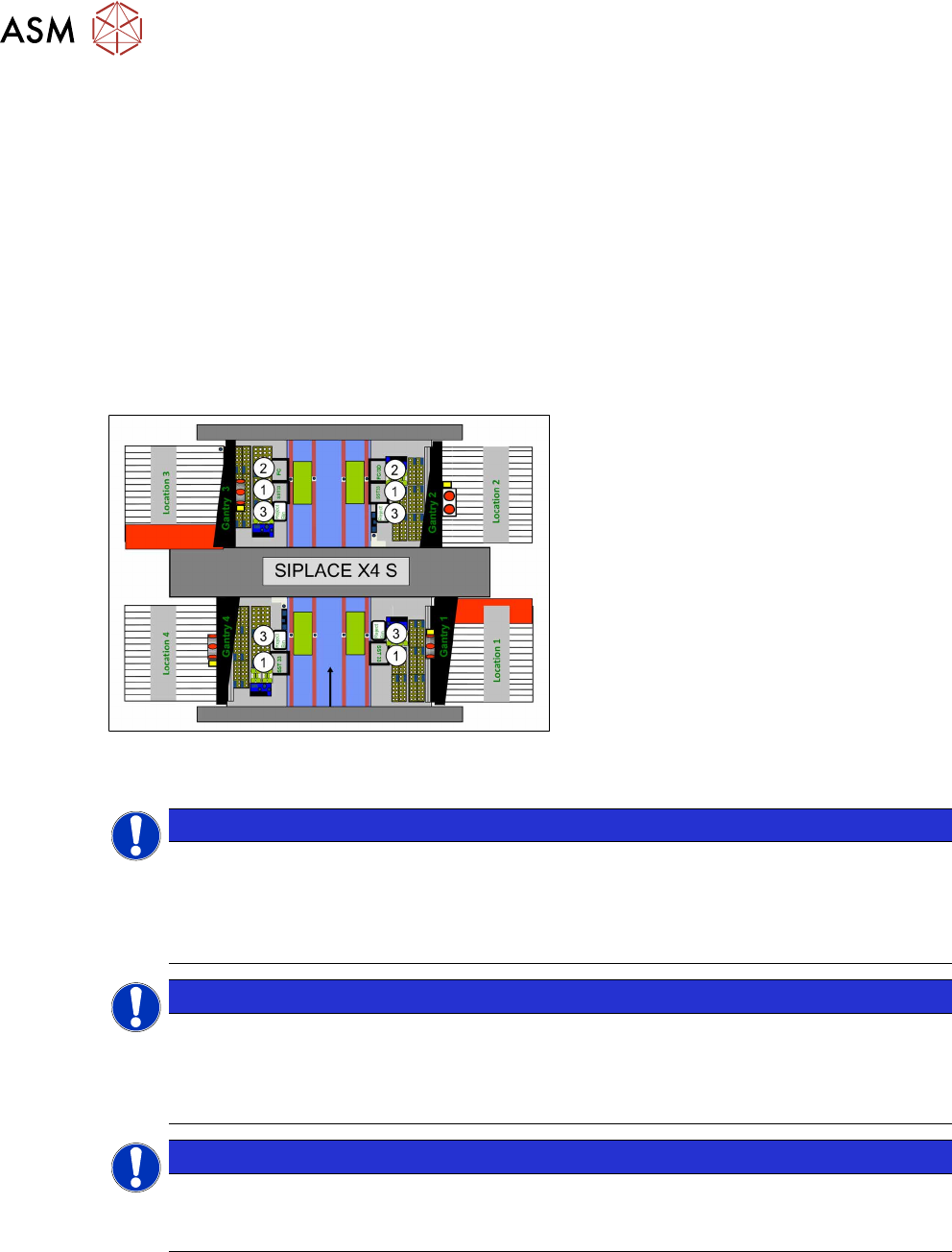

Fig.106: Installation position of cameras (using example of

SIPLACE X4 S)

1. IC camera, type 33

2. FC camera / 3D coplan (location2

only)

3. Component reject bin

NOTICE

SIPLACE Twin

The FC camera and the 3D coplan module are only possible together with a SIPLACE

Twin. Only one of these options can be fitted at the same location, meaning that either the

FC camera or the 3D coplan module can be used and only in combination with an IC cam-

era.

NOTICE

SIPLACE CPP

► A 3D coplan module can be fitted together with an IC camera and a SIPLACE CPP.

► The combination of an IC camera with a FC camera and a SIPLACE CPP is not pos-

sible.

NOTICE

3D coplan

If a 3D coplanarity is fitted, this only being possible at location 2, the stationary camera (IC

camera) must also be fitted at location 2.

4 Appendix

4.3 Excerpt from the assembly instructions "SIPLACE X-Series S - stationary camera type

25/33" [00197397‑xx]

Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 147

4.3.1.1 Adjusting the Camera Jumper Setting

NOTICE

Coding the DIP switch

IC cameras of type 33 up to version 07 are equipped with an 8-pin DIP switch. IC cameras

of type 33 from version 07 are equipped with a 6‑pin DIP switch.

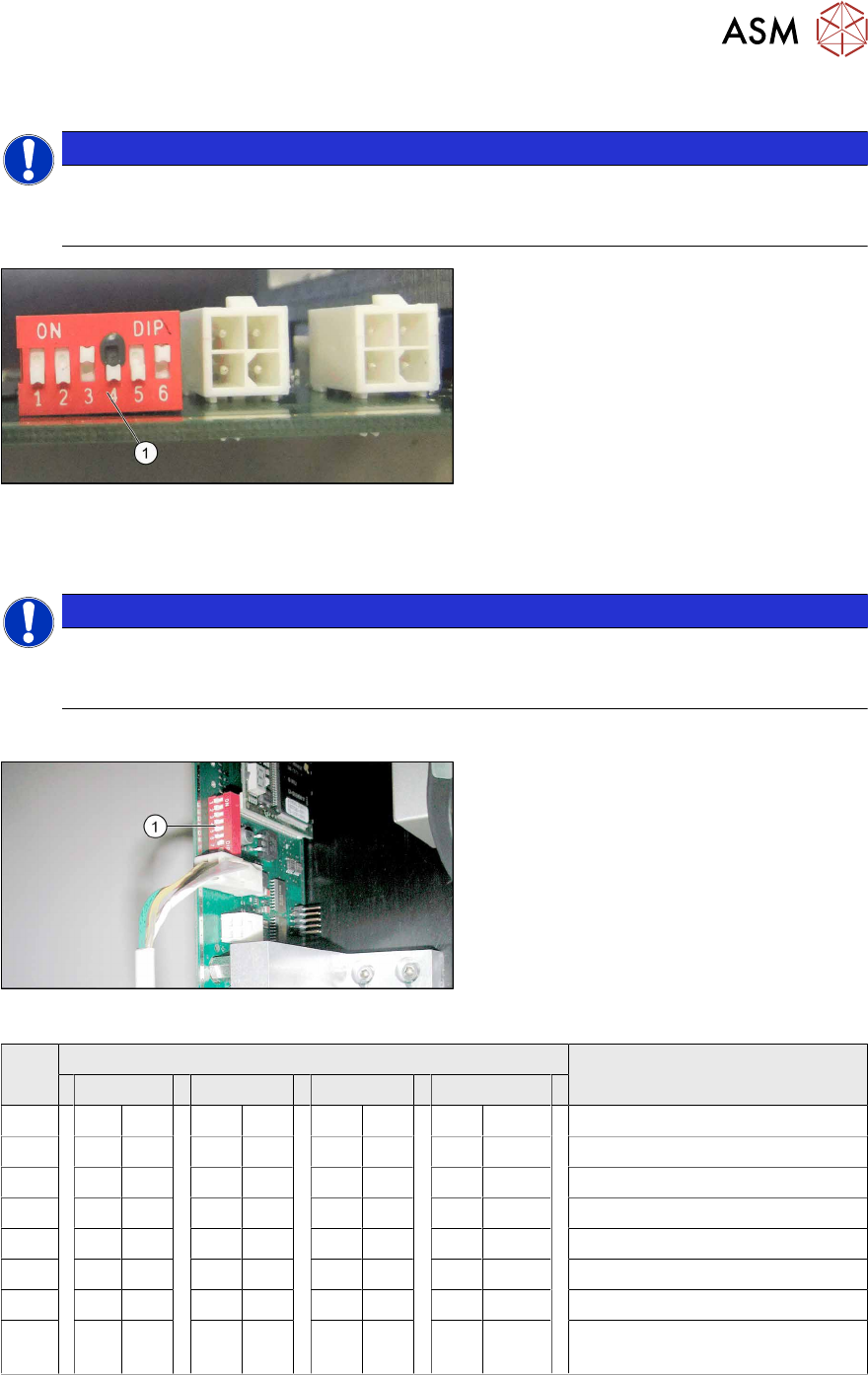

Fig.107: Setting the DIP switch – example of 6-pin switch

shown

► Remove the lighting unit and the cover

from the camera.

► Set the DIP switch (1) at the camera,

according to the configuration and DIP

switch type (see section 4.3.1.1.2

"Cod-

ing the DIP Switch (6 Pin)" [}148]or

4.3.1.1.1

"Coding the DIP Switch (8

Pin)" [}147]).

► Make a note of the jumper setting on the relevant label on the camera housing.

NOTICE

Exchanging the camera housing when there is more than one camera

When fitting the cover and the lighting unit, make sure that this is not confused with the one

for a different camera.

Coding the DIP Switch (8 Pin)

Fig.108: Setting the DIP switches

► Set the DIP switch (1) on the camera.

S Setting for gantry* Comments

1 2 3 4

1 OFF OFF OFF OFF Boot

2 OFF OFF OFF OFF Reset

3 OFF ON OFF ON Gantry ID 0

4 OFF OFF ON ON Gantry ID 1

5 OFF OFF OFF OFF Test

6 OFF OFF OFF OFF CAN terminator

7 ON ON ON ON 1 Mbit/s

8 x x x x x x x x x = OFF: FC camera (type 25)

x = ON:

IC camera (type 33/36)

* Not all gantries may be available, depending on the machine type.
