3 Installation 3.7 Connecting the Cable to the (M)GCU Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 107 Fig.28: Cable tie ► Secure the cable with a cable tie (1) and push the GCUs back in…
3 Installation
3.7 Connecting the Cable to the (M)GCU
106 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
Fig.26: Running the "Axis signals 3D sensor" cable
► Pull one end of the "Axis signals 3D
sensor" [03055217-xx] cable (1)
through the traverse (2) to location2.
3.7 Connecting the Cable to the (M)GCU
Fig.27: MGCU / GCU
Also observe the following sections:
●
Up to serial no. Gxxxx:
3.7.1
"Overview of GCUs" [}108]
●
From serial no. Hxxxx:
3.7.2
"Overview of MGCUs" [}110]
► Pull the GCU slide to a certain extent
out of the machine. You need to loosen
the fastening screw at the bottom left.
► Connect the other end of the "Axis sig-
nals 3D sensor" cable (see in the
table).
Connection of the "Axis signals 3D sensor" cable [03055217-xx] in X-Series S
Machine GCU up to serial no. Gxxxx MGCU from serial no. Hxxxx
X2S GCU gantry 3, X74Ouc MGCU position 3, X74O_c
X3S GCU gantry 3, X74Ouc MGCU position 3, X74O_c
X4S GCU gantry 2, X74Otc MGCU position 2, X74O_c
3 Installation
3.7 Connecting the Cable to the (M)GCU
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 107

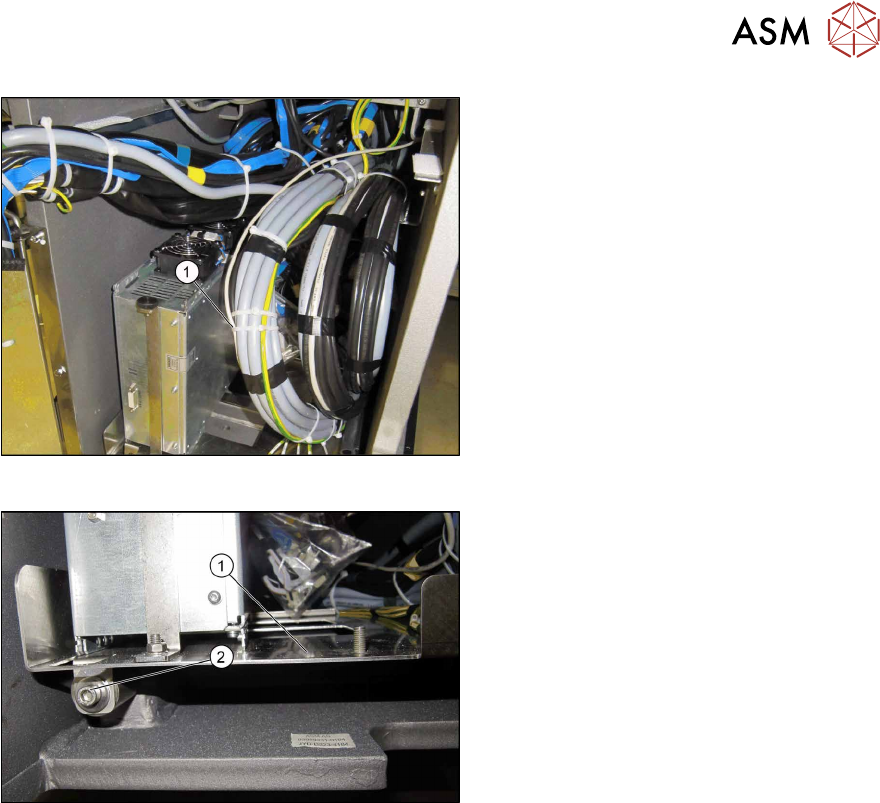

Fig.28: Cable tie
► Secure the cable with a cable tie (1)
and push the GCUs back into the
machine.
Fig.29: Securing the slide
► Tighten the screw (2) fastening the
slide (1)
.
3 Installation
3.7 Connecting the Cable to the (M)GCU
108 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

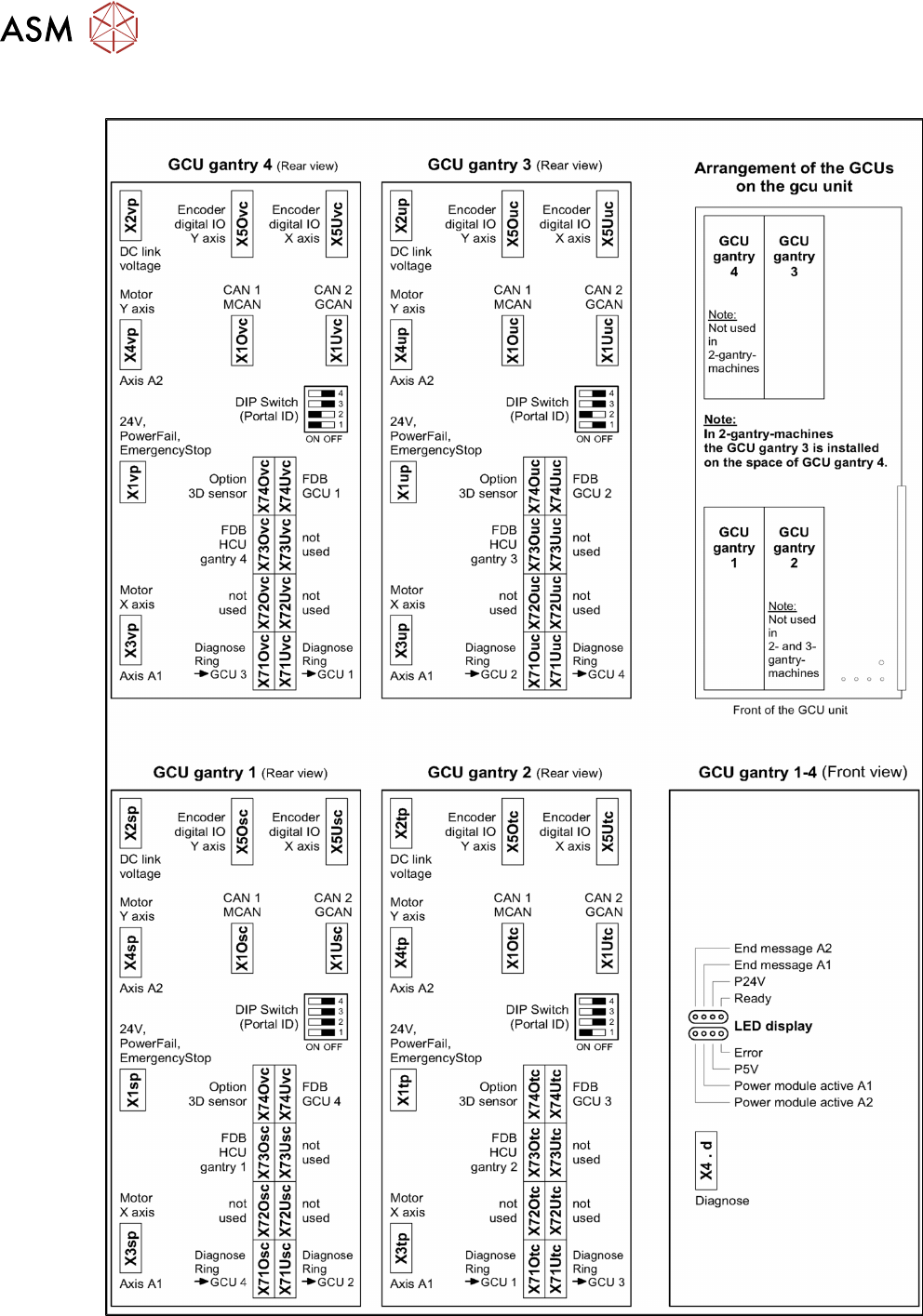

3.7.1 Overview of GCUs
Fig.30: Overview of GCUs
