4 Appendix
4.3 Excerpt from the assembly instructions "SIPLACE X-Series S - stationary camera type
25/33" [00197397‑xx]
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 151
Spacer plates for locations 1 and 4
Fig.115: Spacer plates
Wide spacer plate for locations 1 and 4 with
plug-in screws for fixture to machine frame
Fitting the spacer plates
Fig.116: Left: location 2 and 3; right: location 1 and 4
► Use the screws (M6x45) to fix the spacer plates to the screw fixing points in the machine
frame (1)
. Make sure that the IC label indicates upwards.
► At position (2), tighten the two screws (M6x20) for the camera suspension holder, until the
screw shaft protrudes approx. 15mm above the mount.
4 Appendix
4.3 Excerpt from the assembly instructions "SIPLACE X-Series S - stationary camera type
25/33" [00197397‑xx]
152 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
IC Camera Type 33: Fixing the Camera Module
Fig.117: Markings for different installation heights (1)
► Hook the camera on its screws onto the
spacer plates.
Fig.118: Lower section of camera
► Hook the upper holes (1) on the lower
section of the camera onto these two
screws. (Key hole principle for cameras
of type 33 from version 06.)
► Use the two lower screws (2) to adjust
the lower section of the camera to the
correct installation height at position I
(1)
and tighten all four screws.
CAUTION
Observe the installation height
When fitting the camera, observe the correct installation height. Otherwise there is the
danger of a crash!
Locations 2 and 3
► If you do not have to install an FC camera at the same location, continue by attaching the
camera cables (see section Electrical connections).
► If you need to install an FC camera at the same location, continue with section Fitting the FC
Camera of Type 25 - Location 2 and 3
Locations 1 and 4
► Continue by attaching the camera cables (see section Electrical connections).
4 Appendix
4.4 Circuit Diagrams
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 153
4.4 Circuit Diagrams
4.4.1 Circuit diagrams (up to Gxxxx)

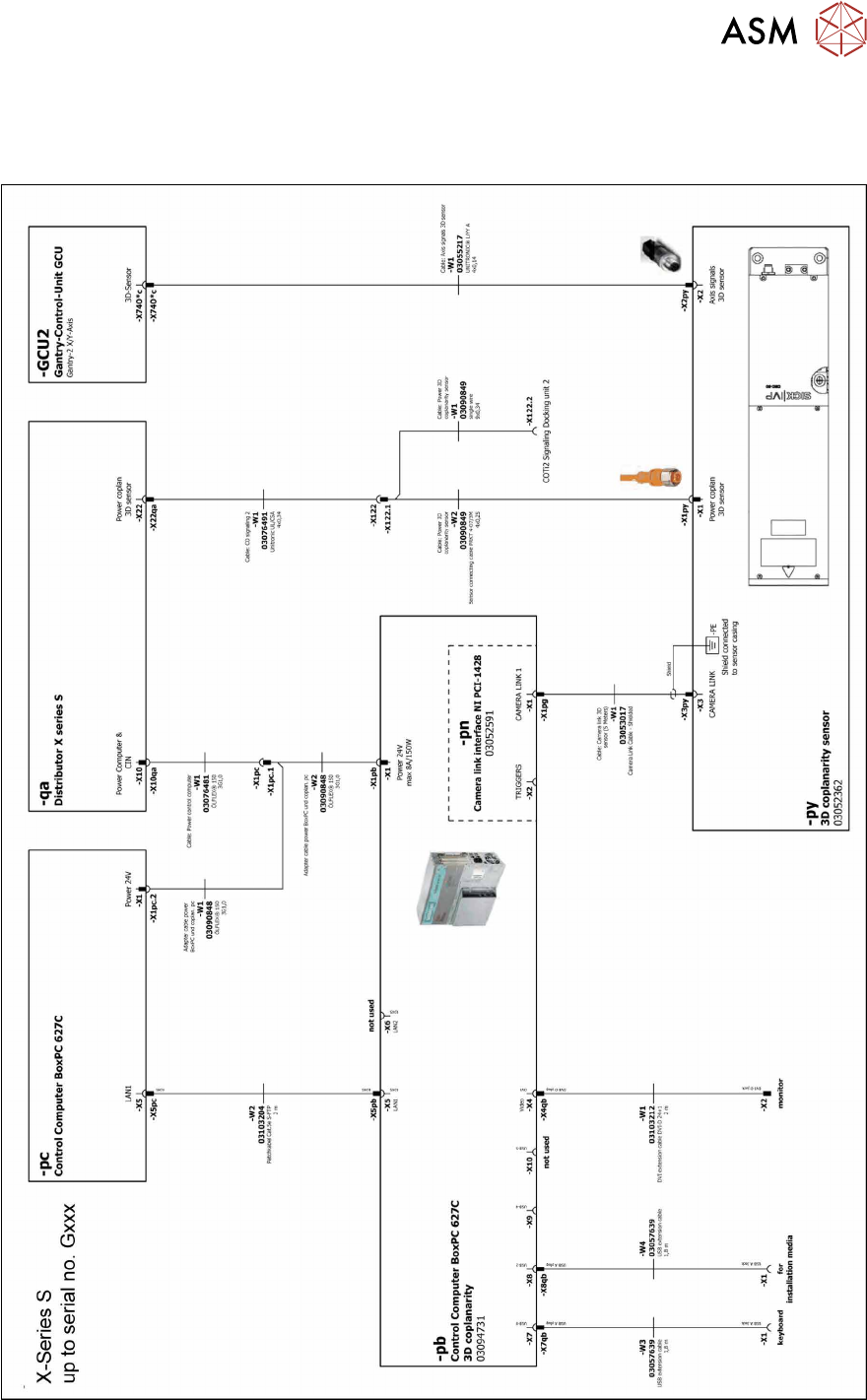

Fig.119: BoxPC 627C and GCU2
