3 Installation 3.7 Connecting the Cable to the (M)GCU Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 111 Fig.32: Overview of MGCUs on X3 S
3 Installation
3.7 Connecting the Cable to the (M)GCU
110 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020
3.7.2 Overview of MGCUs

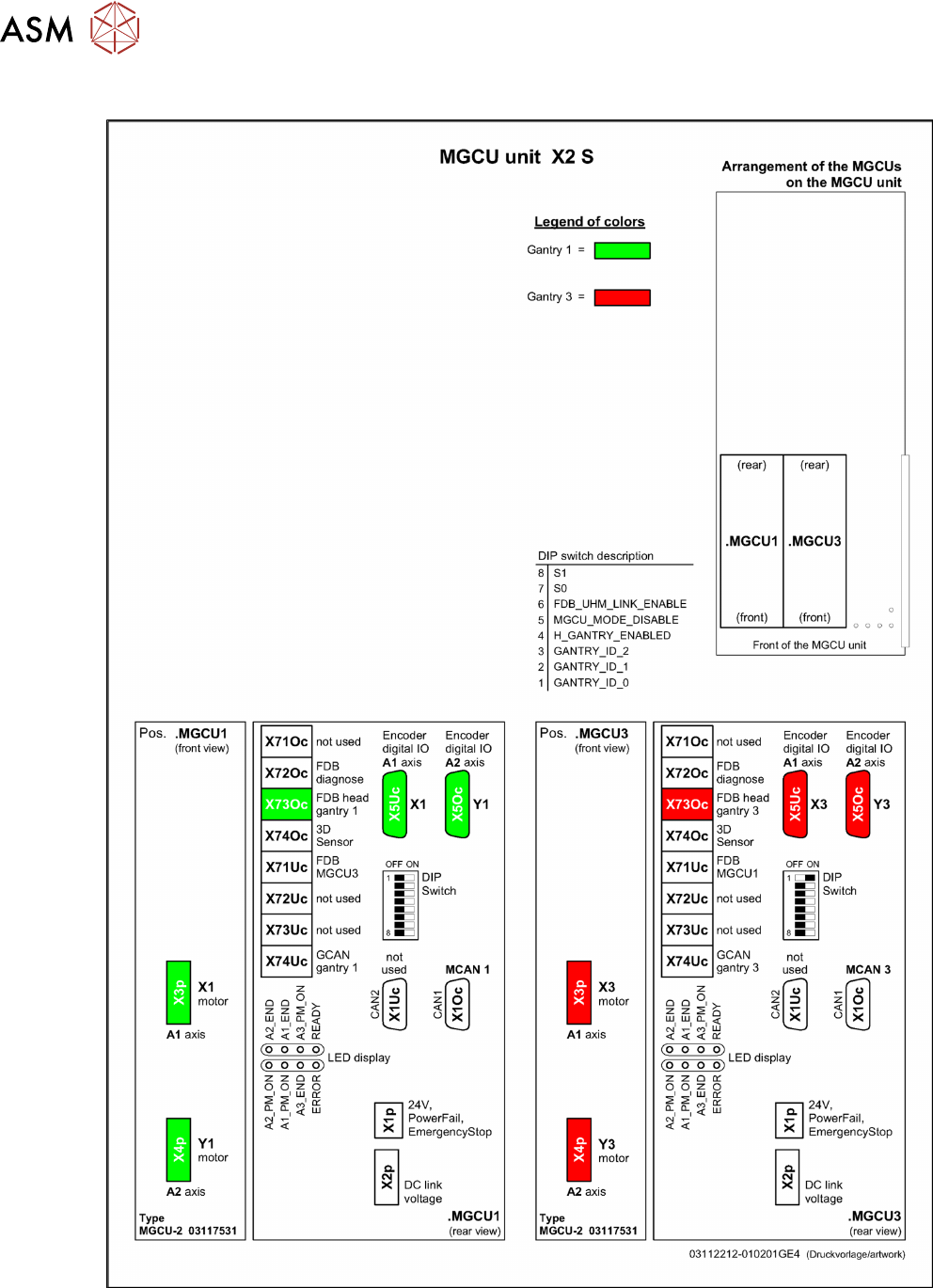

Fig.31: Overview of MGCUs on X2 S
3 Installation
3.7 Connecting the Cable to the (M)GCU
Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020 111

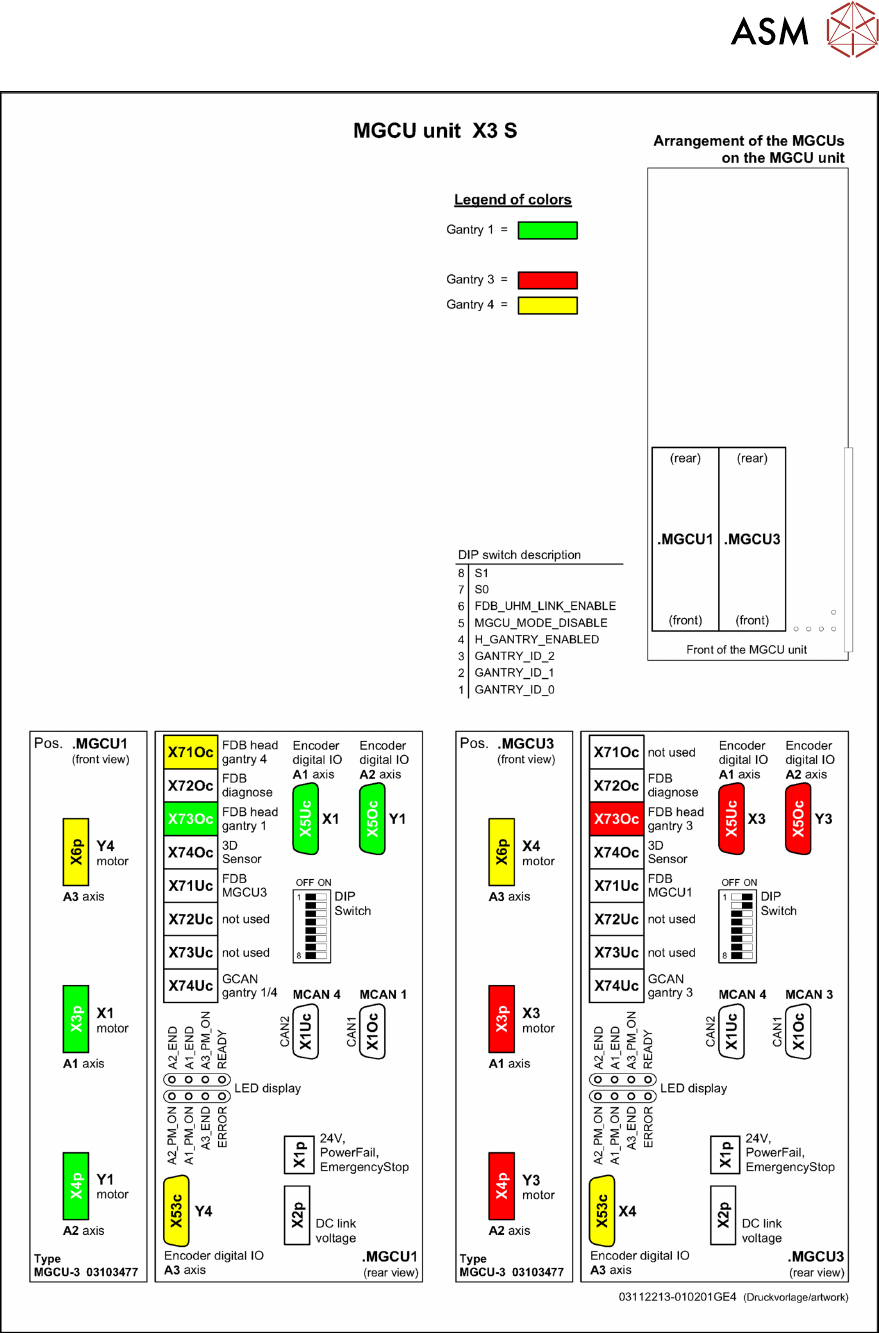

Fig.32: Overview of MGCUs on X3 S
3 Installation
3.7 Connecting the Cable to the (M)GCU
112 Assembly Instructions / Montageanleitung SIPLACE X-Series S 3D-Sensor 06/2020

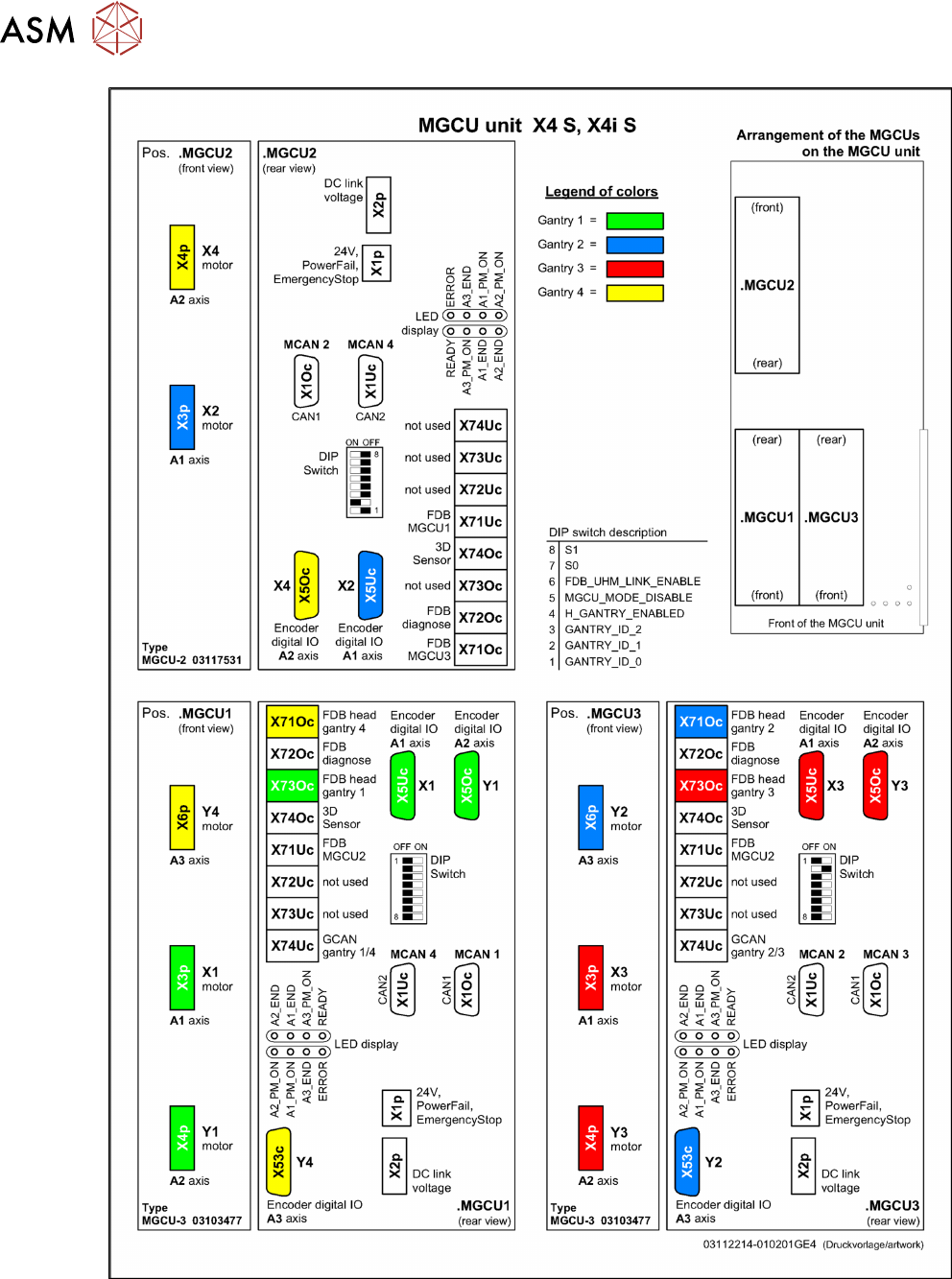

Fig.33: Overview of MGCUs on X4 S and X4i S
