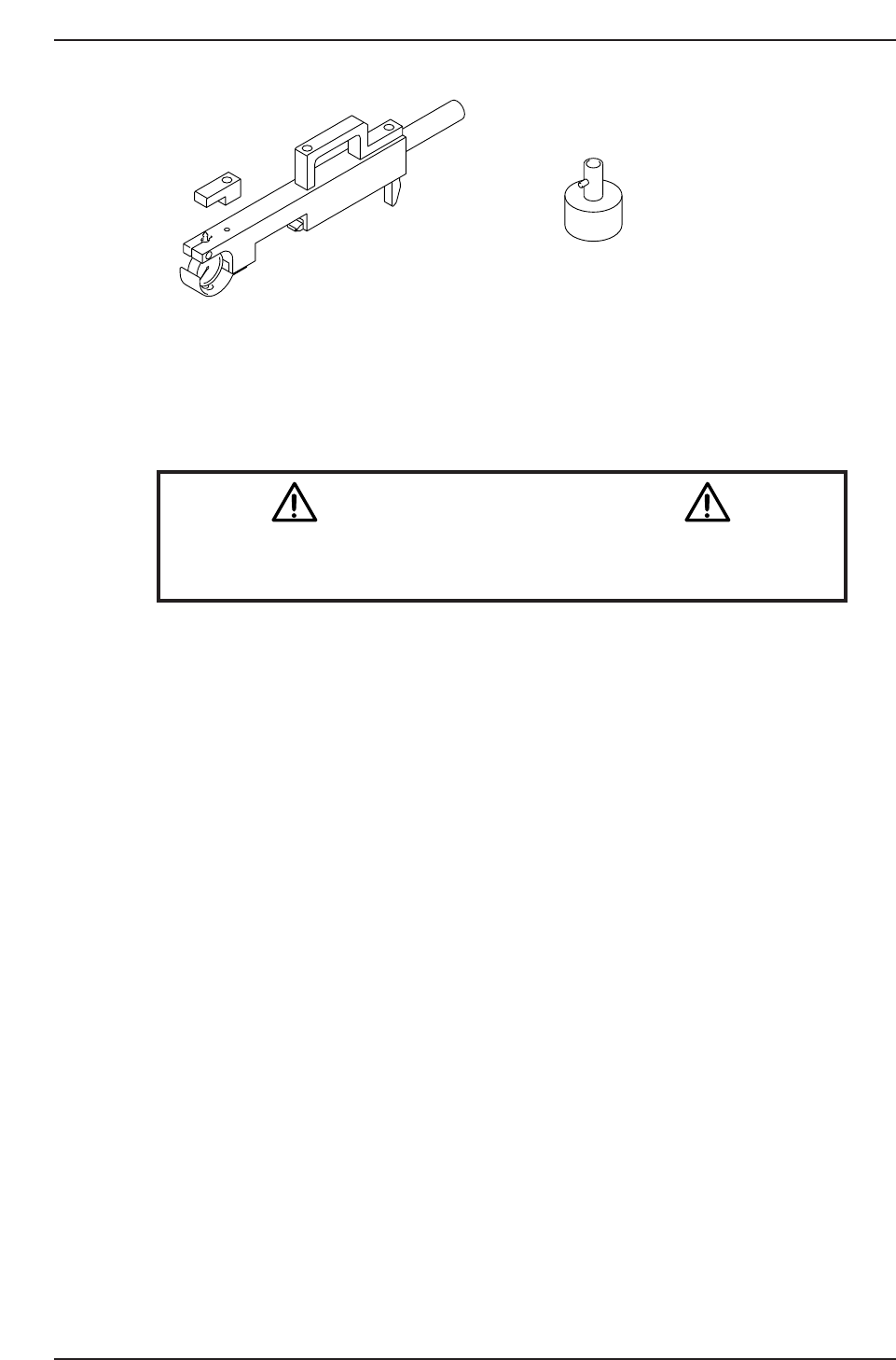

6.1.1 Removing the NZ-Axis Motor Procedure: 1. Turn OFF the machine power. 2. Disconnect both electrical connections to the motor. 3. Loosen the coupling in order to separate the motor from the NZ-axis. 4. Remove the two…

Resolution: 0.002 mm/pulse World (Zero)

Affected Calibration data: NZ Origin Pos.→ MC0PPNZO

Caution

Ensure that a back-up of Proper data is taken prior to replacing the

motor.

CN001

Z9426ADCPJ8240 DCPJ0620

CP7T36002

Chapter 6 6.1 Replacing the NZ-Motor

Edition 2.0 6-2 CP-7-series Level 3 Tutorial

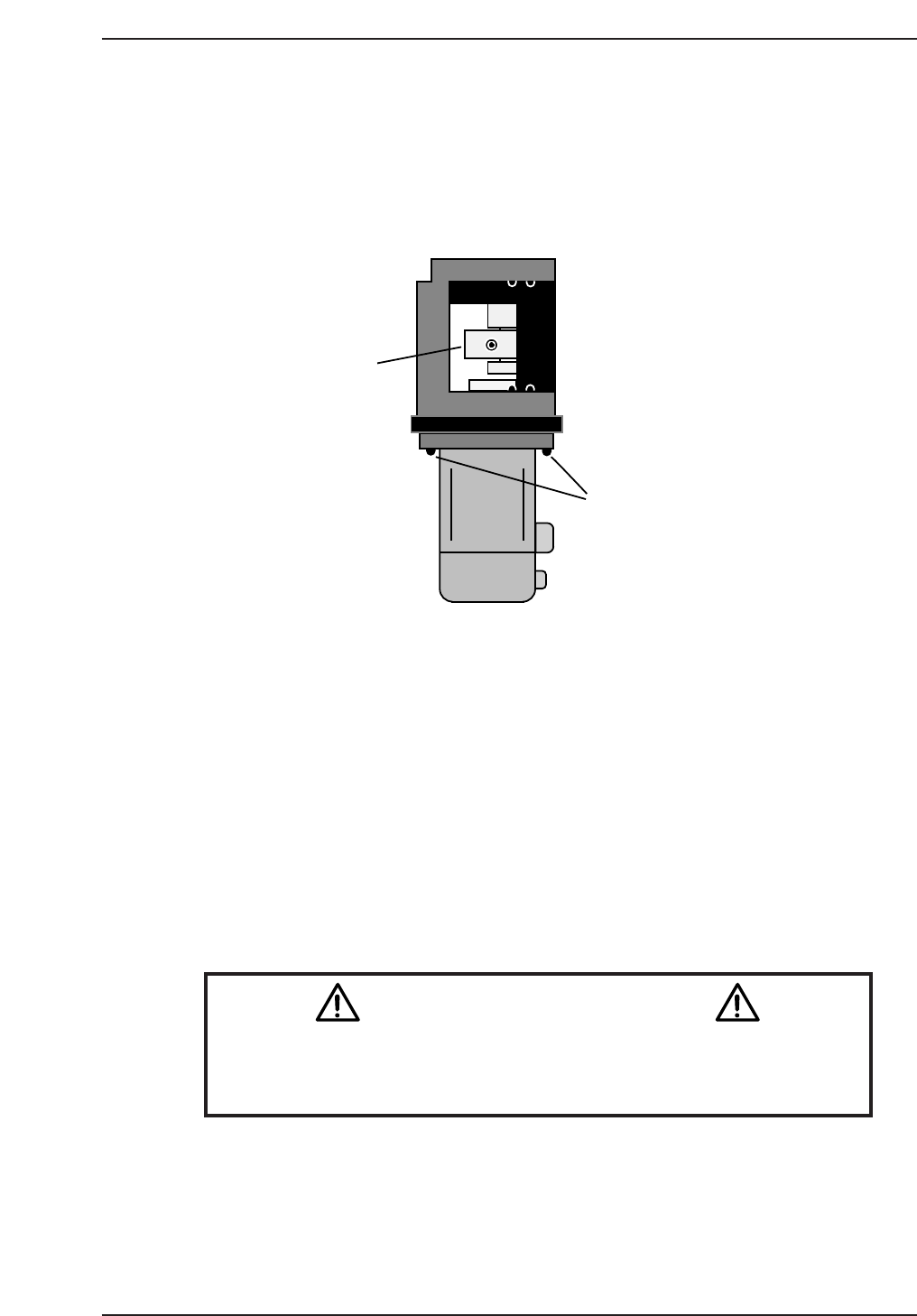

6.1.1 Removing the NZ-Axis Motor

Procedure:

1. Turn OFF the machine power.

2. Disconnect both electrical connections to the motor.

3. Loosen the coupling in order to separate the motor from the NZ-axis.

4. Remove the two (2) mounting bolts holding the motor to the coupling

bracket and remove the motor.

6.1.2 Installing the NZ-Axis Motor

Procedure:

1. Secure the new motor to the machine with the two (2) mounting bolts.

2. Reconnect the two (2) electrical connectors to the motor.

Note: Do not tighten the coupling at this stage.

Notice

Note that as the CP-7 utilizes absolute encoders on all axes, it is no

longer necessary to boot up the machine in Mechacheck mode when

performing motor adjustments.

N001

Remove both

mounting bolts

Coupling

CP7T36003

Chapter 6 6.1 Replacing the NZ-Motor

Edition 2.0 6-3 CP-7-series Level 3 Tutorial

Notes:

Chapter 6 6.1 Replacing the NZ-Motor

Edition 2.0 6-4 CP-7-series Level 3 Tutorial
