7.1.1 Mark Camera Removal
Procedure:

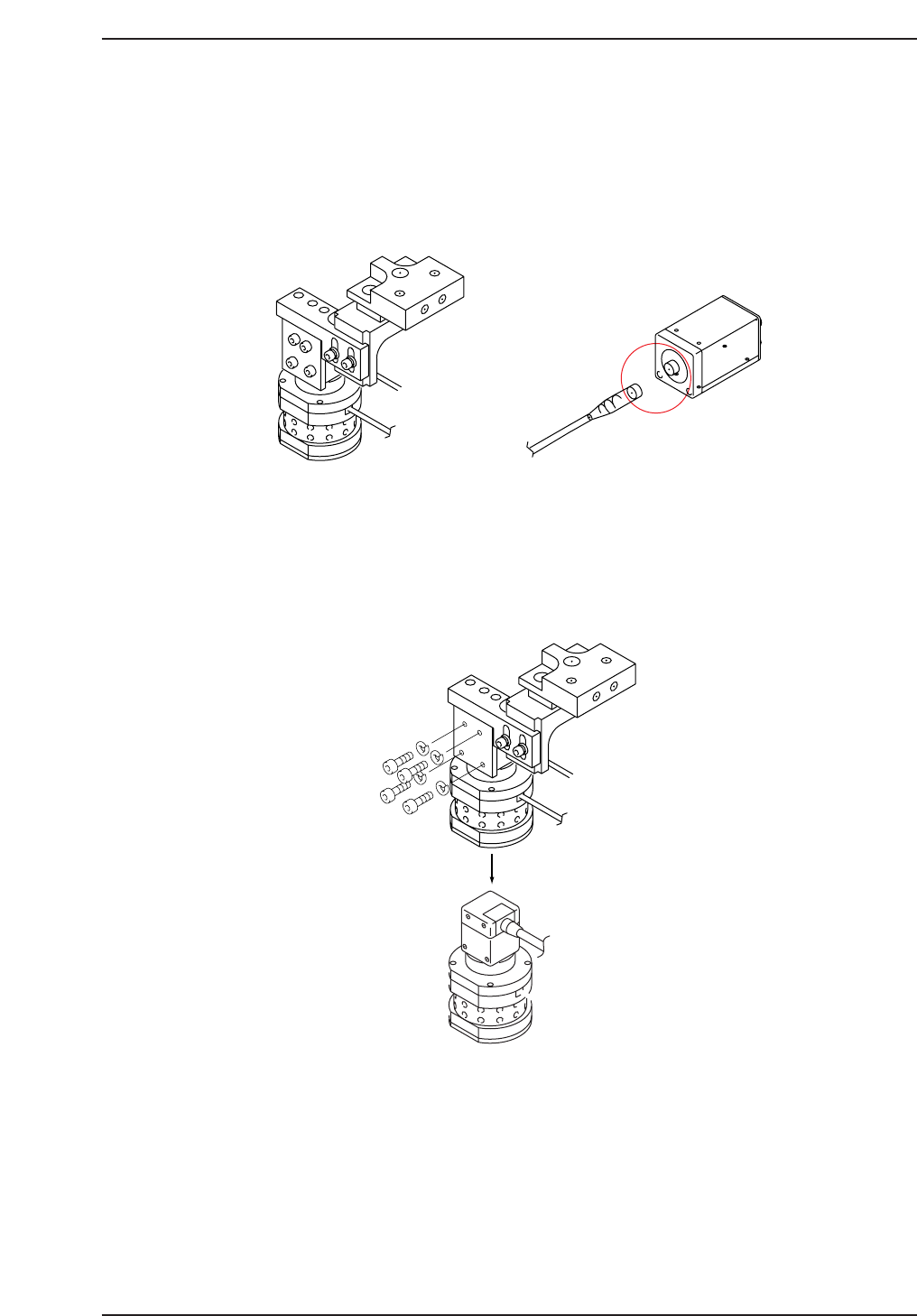

1. With the machine powered OFF, remove the mark camera by
disconnecting the video cable from the power supply unit (refer to the
figure below).
2. Remove the four (4) CCD module mounting bolts and physically remove
the camera CCD module from the machine (refer to the figure below).
Note: In the case of the CP-742E(ME), it is also necesary to remove the 3 bolts holding the
aluminium plate over the CCD Module mounting bolts.
3. Unscrew the aluminum housing to gain access to the lens unit.
Note: The lens unit and CCD camera have been pre-assembled. Therefore, it is not necessary to
adjust the half mirror.
CCD Module
Mounting Bolts
CP7T37004
CP7T37003
Chapter 7 7.1 The Mark Camera
Edition 2.0 7-3 CP-7-series Level 3 Tutorial
7.1.2 Mark Camera Installation
Procedure:
1. Use a small amount of glue (Loctite 425) when reattaching the aluminum
housing to the camera unit, and tighten using a torque wrench (torque:
4–5 Nm).
2. Reattach the camera unit with the four (4) module mounting bolts and
reconnect the video cable to the power supply.
Chapter 7 7.1 The Mark Camera
Edition 2.0 7-4 CP-7-series Level 3 Tutorial
7.2 Mark Camera Adjustments
7.2.1 Focus Adjustment
Procedure:
1. Set the switch at the rear of the amplifier as shown in the diagram below.
2. Attach the tooling pin jig to the reference side of the main conveyor, and
then clamp the fiducial jig plate on the conveyor, adjusting the movable
pin on the tooling pin jig appropriately.
3. Move the fiducial jig plate to the read position using the following
commands:
[MAINTENANCE] → [CALIBRATION] → [MARK CAMERA
RESOLUTION] → [MOVE] → START.
The X, Y and Z-axes will now move to their respective read positions.
4. Loosen the two (2) adjustment bolts as shown on the following page, and
adjust the height to improve the focus.
Loosen
CP7T37006
1/30N
1/60N
1/30I
DC IN/SYNC
DC IN12V
SHUTTER
VIDEO
ON
OFF
SELECT
GAIN
SELECT SWITCH
GAIN SWITCH
SHUTTER SWITCH
1/30N
OFF
F
F
CP7T37005
Chapter 7 7.2 Mark Camera Adjustments
