7. With the cam at 180°, move the XY-table until the centering jig is directly below Station 9. Position the needle of the dial gauge against the side surface of the centering jig and set to zero. 8. While rotating the d…

Affected Calibration Data: Placing Position X → MC0PPX

Placing Position Y → MC0PPY

Procedure:

1. Verify that the Station 9 solenoid valve is off.

2. Remove the right hand side claw from the fixed side of the main

conveyor clamper.

3. Attach the pin holder jig to the XY-table. As the CP-732 does not support

the use of tooling pins, it is necessary to use this jig as a temporary

reference pin holder. From the front side, align the jig to the upper right

hand corner.

Note: In the case of either the CP-742E or the CP-742ME, which do support tooling pins,

simply remove the reference tooling pin and spring, and insert the jig in its place.

4 Use the inching keys to move the reference tooling pin insertion position

near station 9. Turn the servo power OFF.

5. Manually lower the Z-axis to the minus mechanical stopper position (-

1000 pulses) and insert the centering jig into the reference pin insert

position.

6. Remove the nozzle holder from shafts P, A, and B and install the dial

holder and dial gauge to holder A as shown opposite.

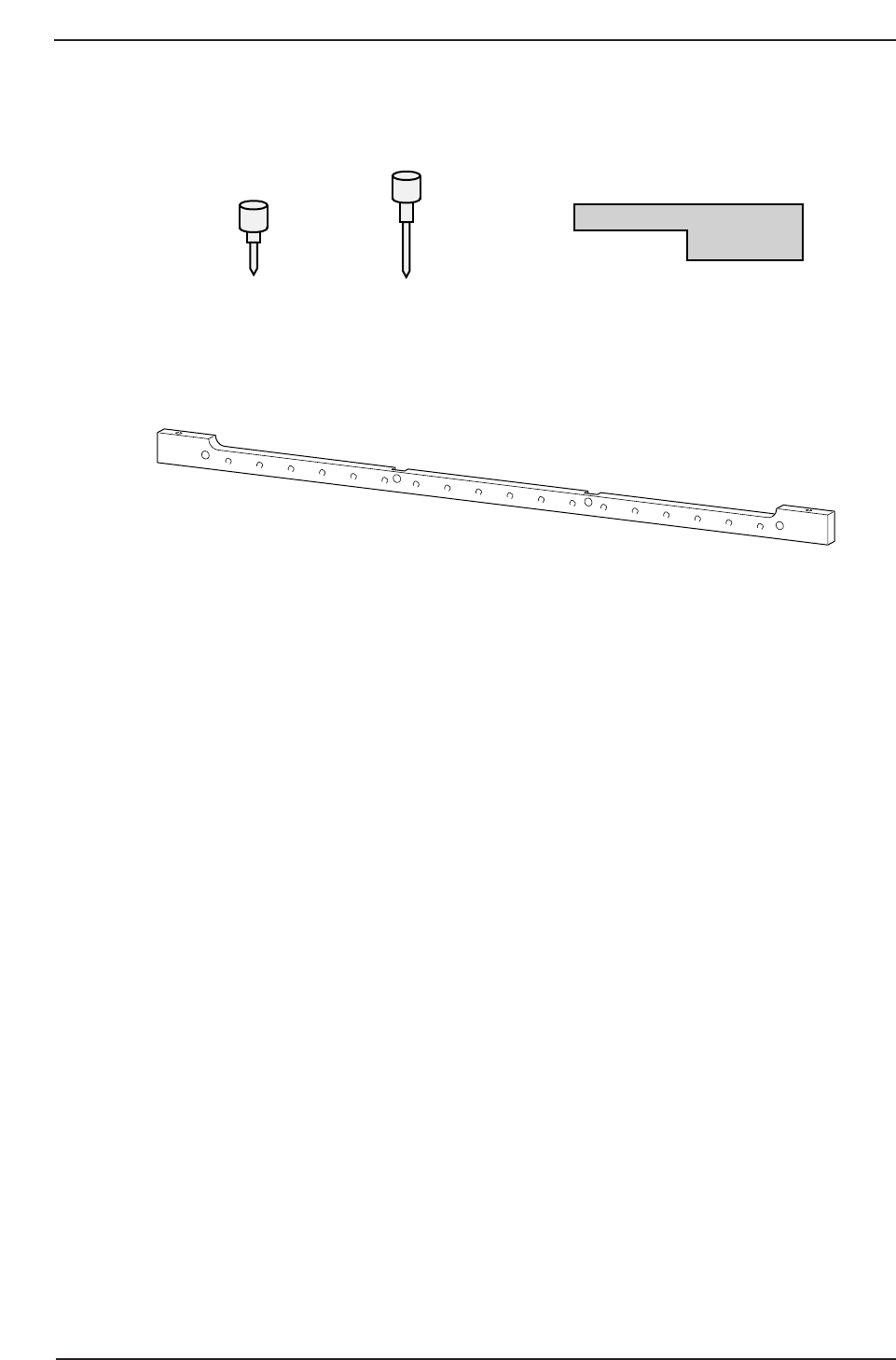

Centering jig

Dial holder (GPJ1030)

Pin holder jig Z9426DCPJ4451

CP7T32002

DGPJ0030DCPJ0250

CP-732E

CP-742E(ME)

CP-732E Only

Chapter 2 2.1 Placing Position (XØ, YØ)

Edition 2.0 2-2 CP-7-series Level 3 Tutorial

7. With the cam at 180°, move the XY-table until the centering jig is directly

below Station 9. Position the needle of the dial gauge against the side

surface of the centering jig and set to zero.

8. While rotating the dial gauge around the centering jig, manually move

the XY-table in the X and Y-direction until the dial reads zero on all

sides. Tolerance = 0 ± 0.01 mm. This position is XØ, YØ.

9. Register the motor pulse counts of the X and Y-axes at this point in

calibration data using the following commands:

[MAINTENANCE] → [CALIBRATION] → [PLACING REFERENCE] →

[SET] (XØ, YØ).

CP7T32004

Shaft A

CP7T32003

Chapter 2 2.1 Placing Position (XØ, YØ)

Edition 2.0 2-3 CP-7-series Level 3 Tutorial
