9.1.8.5 Machine Data Format
The format at a cam speed of 80% is detailed below.
Head A X MC0A1POX -10.000
↑↑ ↑ ↑
Head Axes CCIMF name Machine data
CCIMF names for other nozzles display as shown below.
MCO [A – P] [1 – 6] PO [X,Y]
A – P: Head A – P
1 – 6: Nozzle 1 – 6
X, Y: Axes
The format at a cam speed of 100% is detailed below.
Head A X MC0A1POX100 -10.000
↑↑ ↑ ↑
Head Axes CCIMF name Machine data
CCIMF names for other nozzles display as shown below.
MCO [A – P] [1 – 6] PO [X,Y] 100
A – P: Head A – P
1 – 6: Nozzle 1 – 6
X, Y: Axes
Chapter 9 9.1 PAM
Edition 2.0 9-9 CP-7-series Level 3 Tutorial

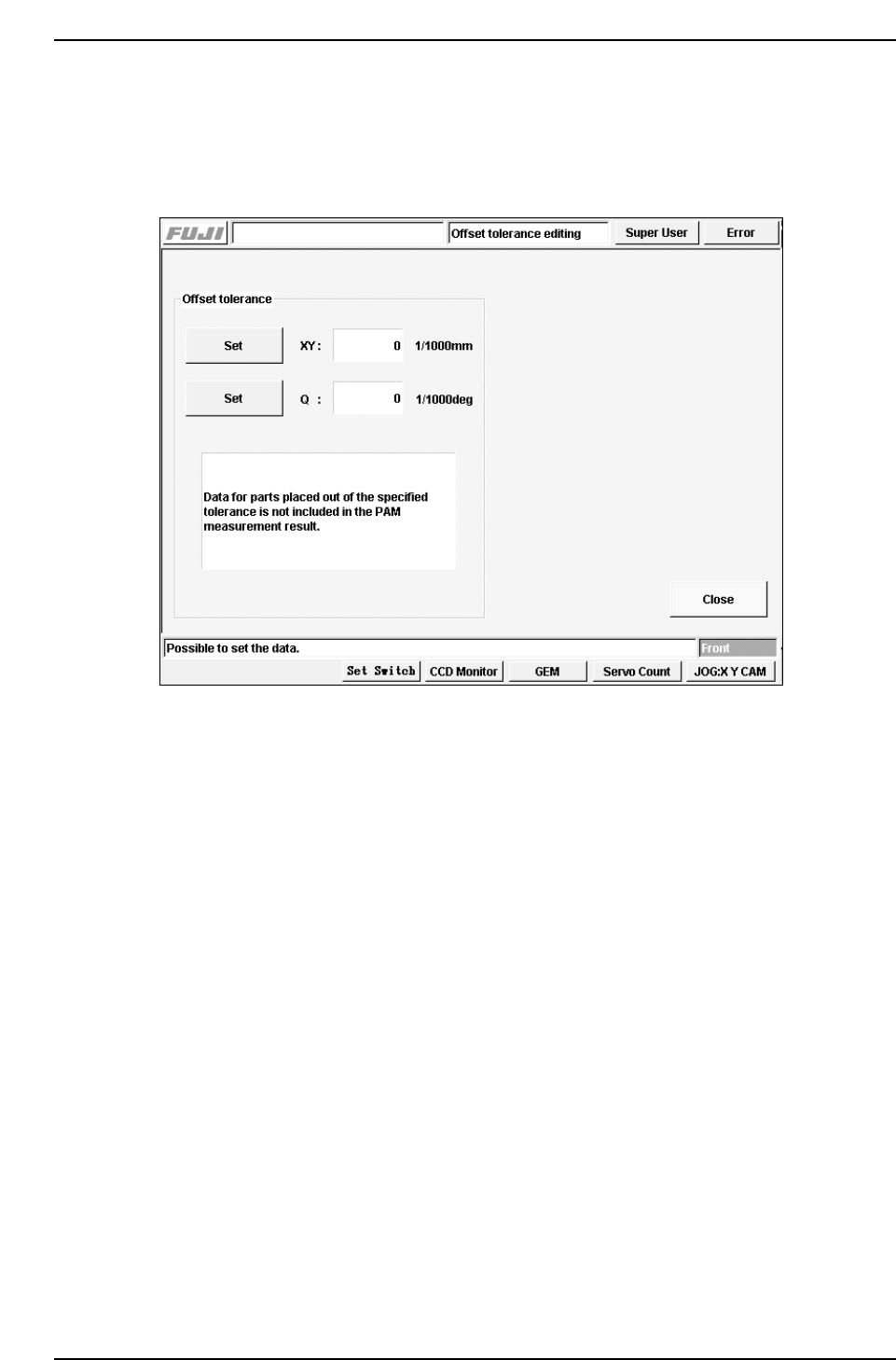

9.1.9 Editing the Offset Tolerances
Press [Maintenance] - [PAM Measure] - [100%/80%] - [OK] - [PAM Measure] - [Setting
offset tolerance] to display the following screen. The offset tolerances can be set at this
screen.
9.1.9.1 Set
Press [Set] to the left of the item to be edited, and input the setting using the numerical
keypad.
9.1.9.2 Offset Tolerances
PAM parts which are found to be outside these tolerances when they are inspected
during the PAM placement measurement are treated as error data.
Parts which fall within the range indicated by the following function are regarded as
valid. Parts outside this range are treated as errors.
- Offset tolerance < Inspection result < + Offset tolerance
CP7T39009
Chapter 9 9.1 PAM
Edition 2.0 9-10 CP-7-series Level 3 Tutorial
9.1.10 Production Program Settings
In order to use the [PAM Equip] and [PAM Measure] commands, the nozzle name
(GNANAM) used in the production program must be set at the part data special nozzle
name (PENNZN). By making this setting, the parts are only placed using the specified
nozzle.
"UNIT", "NOZZLE"
"BLOCK", "CP732+"
"GNANN", "GNANAM"
1, "R08-007"
2, "R08-010"
3, "R08-013" ← This nozzle must be set in part data.
4, "R16-018"
5, "R16-025"
6, "R08-004"
"UNIT", "PARTS"
Omitted
"ELEMENT", "VISION-"
"PTPVICVT", 10
"PENVILIT", 0
"PTPVILCA", 0
"PTPVILB", 0
"AUTOHEIGHTCHK", 1
"PARTHEIGHTTOL", 0
"PTPVIPL", 0
"ELEMENT", "ENVDT"
"LEVEL1", "CP732ENVDT-"
"PENNMI", 1.3
"PENNMA", 1.3
"PENNZN", "R08-013" ← For PAM placement and measurement.
"PENBLM", 9
Omitted
