Chapter 5 NC-Axis Objective: Given a CP-7-series machine, technical documentation and required tools, remove, replace and calibrate the NC-motor to FUJI specifications.

Notes:

Chapter 4 4.3 Training Evaluation

Edition 2.0 4-8 CP-7-series Level 3 Tutorial

Chapter 5

NC-Axis

Objective:

Given a CP-7-series machine,

technical documentation and

required tools, remove, replace and

calibrate the NC-motor to FUJI

specifications.

5.1 Replacing the NC-Motor

The NC motor is responsible for changing the nozzle size on each of the machine’s

placing heads. Nozzle change is only performed if the next pickup operation

requires a different sized nozzle.

Any failure of the NC-motor and nozzle holder clutches to align will result in

various NC related problems. NC-motor adjustments should be carried out in the

following situations.

- After replacement of the NC-motor.

- After replacement of the NC tension belt

Required Tools: 1 Set of Allen Wrenches

1 Phillips Screwdriver

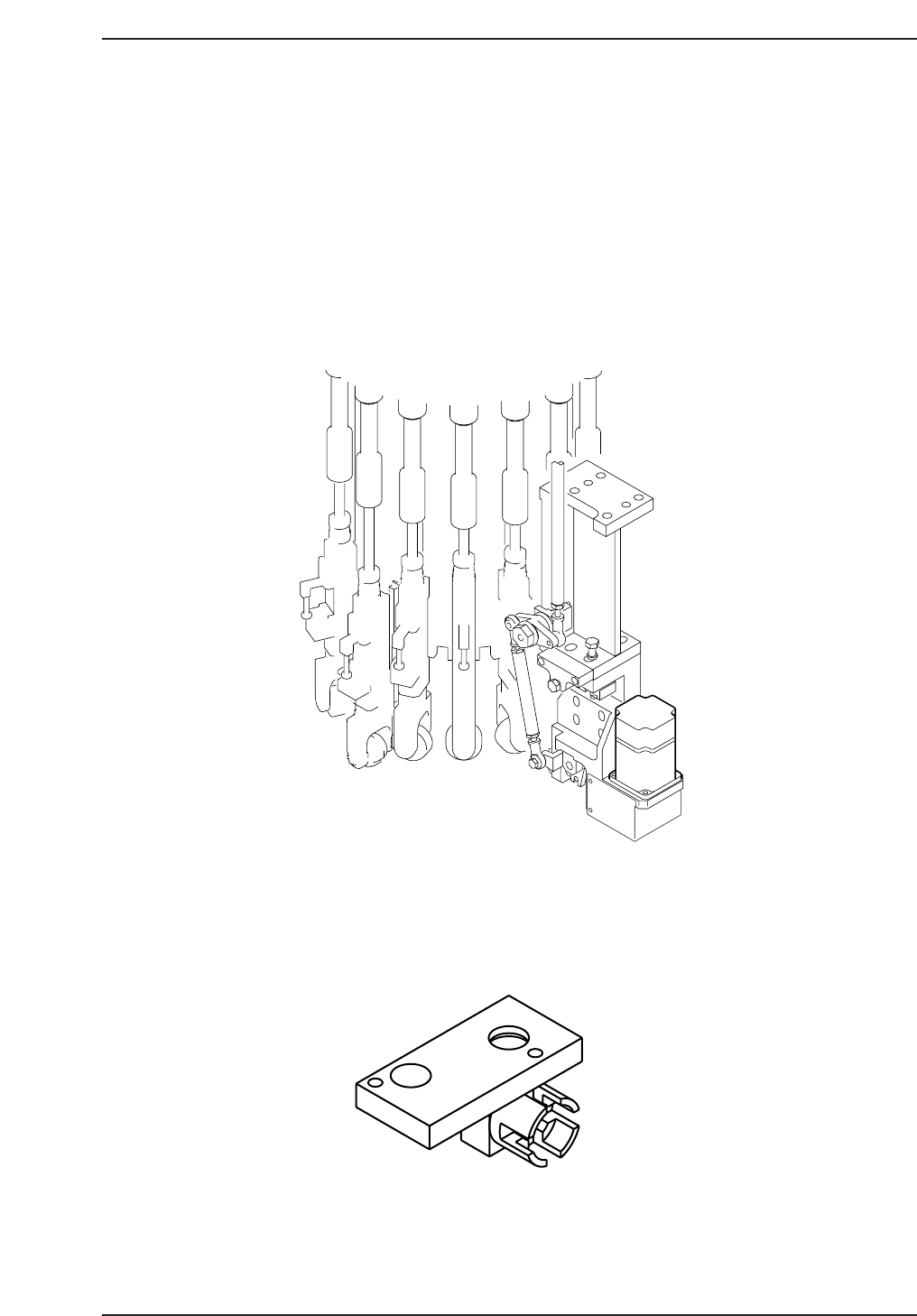

Required Jig: Nozzle Axis Alignment Jig

ADCPJ8040

CP7T35002

NC Motor

CP7T35001

Chapter 5 5.1 Replacing the NC-Motor

Edition 2.0 5-1 CP-7-series Level 3 Tutorial
