4. Safety Labels
To warn the operator of hazards, safety labels are attached to the machine at the
positions indicated in the figure below.
Familiarize yourself with each label and its message before operating the machine.
1
11
7
7
7
5
4
2
5
5
3
9
2
9
9
6
5
1
8
8
1
1
1
5
1
3
7
7
7
7
10
11
C73S0001
Front Side
Rear Side
Safety Guidelines
Edition 2.0 8 CP-7-series Level 3 Tutorial
1
4
2
6
5
Never insert your hand
inside an operating machine.
Moving parts may cause injury.
DANGER
3
7
8
WARNING!
The Cam/Turret will move if the cam spring
tension is not relieved. To avoid serious
personal injury, ALWAYS lock out/tag out this machine before
performing maintenance. NEVER reach into this area unless spring
tension to the Cam/Turret is first relieved and the Cam/Turret is
at a resting position.
Cam/Turret maintenance should only be performed by one person at a time.
ATTENTION!
La came/tourelle est susceptible de bouger
sousl'effet des ressorts de cames.
Pour eviter dommage corporel. TOUJOURS couper l'alimentation
electrique et pneumatique avant toute intervention de maintenance.
NE JAMAIS approcher cette zone sans s'etre assurre gue les
ressorts de la came/tourelle sont detendus, et que la come/tourelle
est au repos.
DO NOT PLACE FEET
ON OPERATION BOX.
NE PAS MARCHER
SUR LE BOITIER
DE COMMANDE
11
INTERNAL CONDUCTOR AMPACITY
Conductor Size
AWG or MCM (
mm
2
)
Ampacity
in Enclosure (A)
14
12
10
8
6
4
(2.1)
(3.3)
(5.3)
(8.4)
(13.3)
(21.2)
60/75 ºC field installed
copper conductors are required.
20
25
40
60
80
105
<WARNING>
THE MACHINE MAIN CIRCUIT BREAKER
MUST BE SWITCHED OFF DURING ALL SERVICING.
ENSURE THAT THE UPS IS SWITCHED OFF AT
THE UPS UNIT DURING ALL SERVICING.
CAUTION
<CAUTION>
AN EXPLOSION MAY OCCUR IF THE BATTERY IS NOT REPLACED
PROPERLY. USE THE BATTERY TYPE SPECIFIED BY FUJI (OR
EQUIVALENT BATTERY TYPE).USED BATTERIES MUST BE
DISCARDED FOLLOWING THE MANUFACTURER'S INSTRUCTIONS
C73S0002
9
10
<Caution>
Use appropriate tap on transformer when
wiring power supply cable to primary side.
WARNING WARNING
THE BAYPASS KEY OVERRIDES
SAFETY DOOR INTERLOCKS.
EXERCISE EXTREME CAUTION
DURING USE
[High Voltage] [Danger]
Safety Guidelines
Edition 2.0 9 CP-7-series Level 3 Tutorial

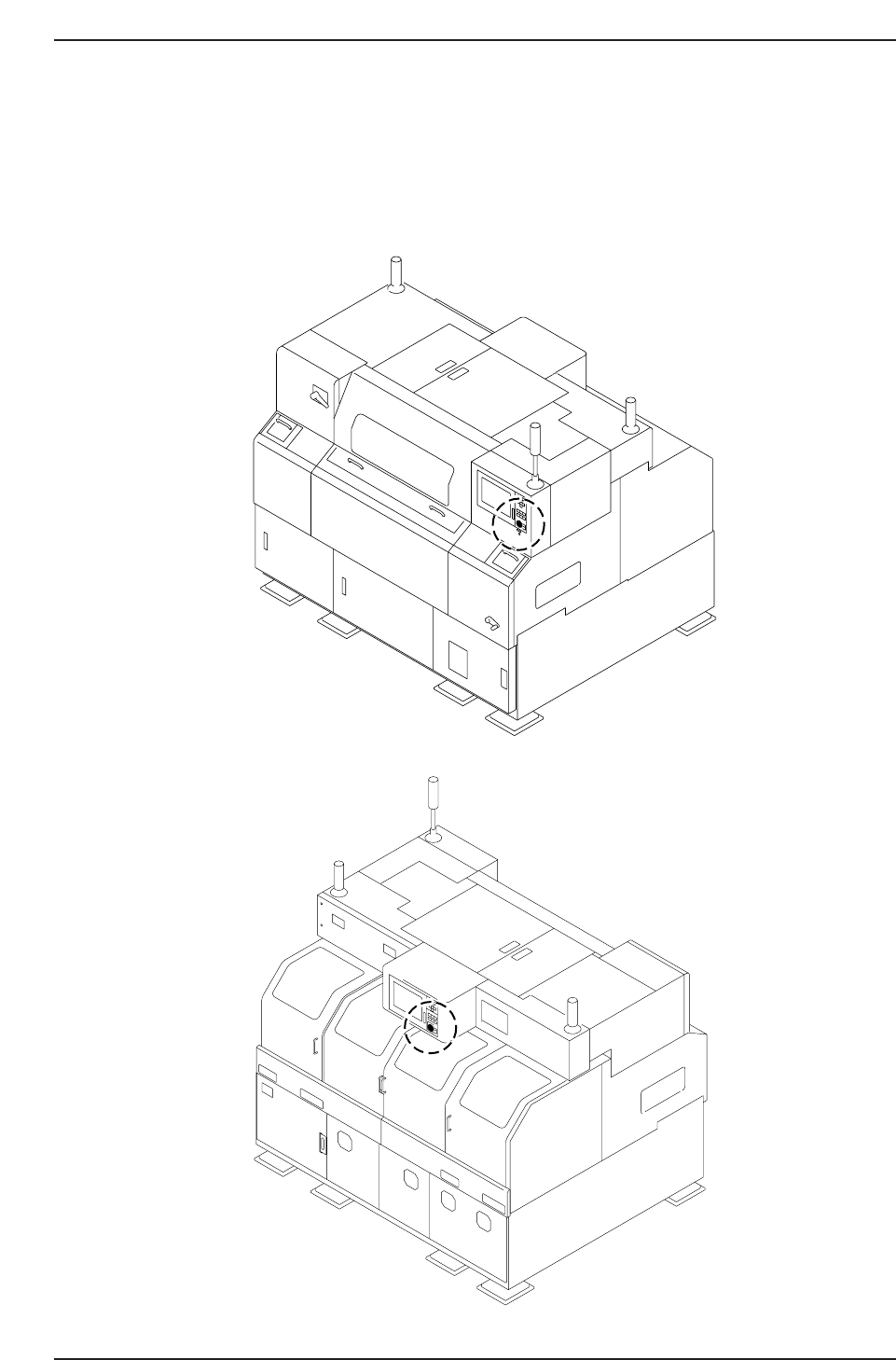

5. The EMERGENCY STOP Buttons
In the event of an emergency, press any of the red EMERGENCY STOP buttons located
on the machine at the positions indicated in the figures below.
Note: The same applies for the CP-742E and CP-742ME machines.
Front Side
Rear Side
C73M0003
Safety Guidelines
Edition 2.0 10 CP-7-series Level 3 Tutorial
