This page int entionally left blank. 6 I nterdependent C alibrations Requir ed for Individual Checks Us er’ s Ma nual Auto Cal Prog ram 6.4 I nt erd epen de nt C ali br at io ns on th e MS- 102 , 128, 1 32 Mac hine s Sof…

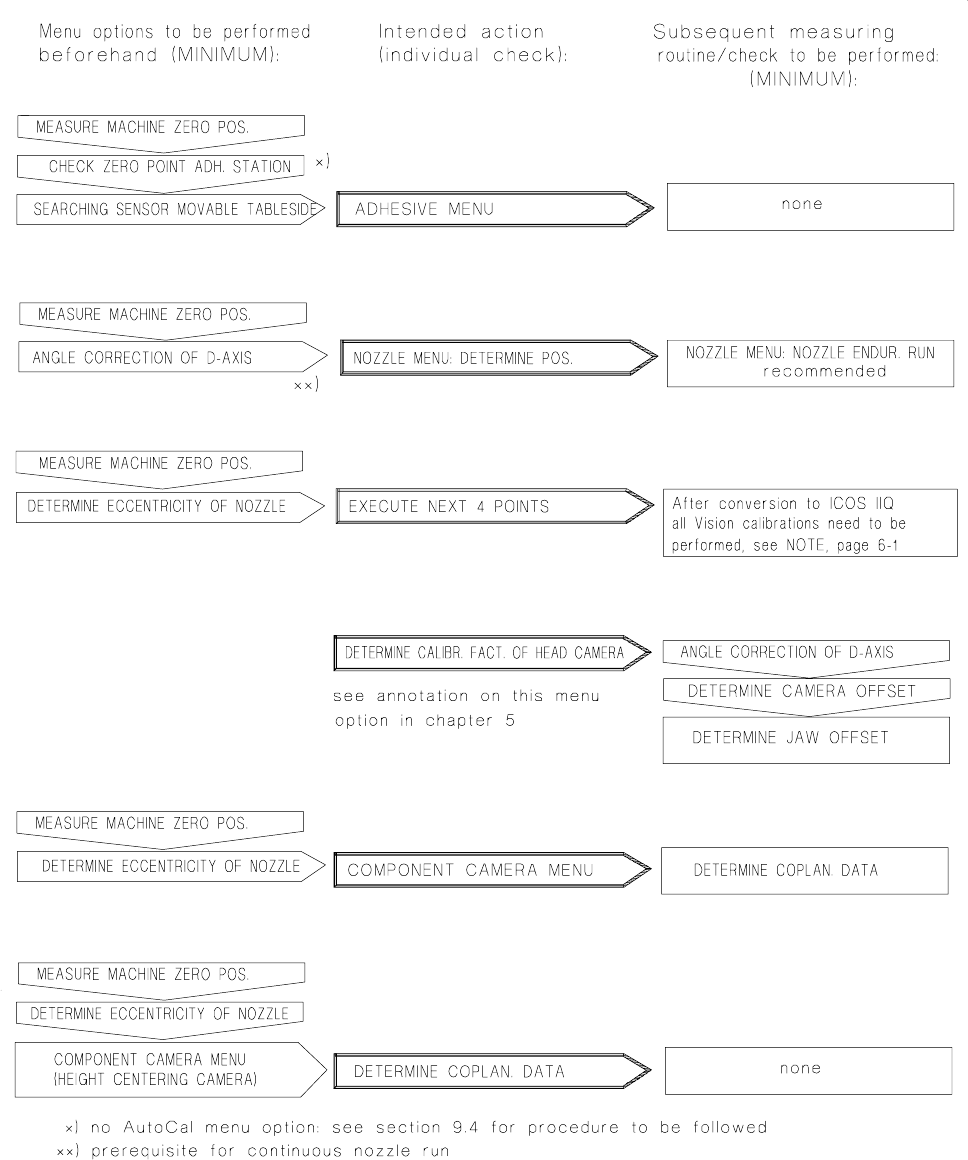

Fig. 6.6 Interdependend Calibrations on MS-102, -128, -132 Placement Stations (continued)
User’s Manual AutoCal Program 6 Interdependent Calibrations Required for Individual Checks
Software Version 114.xxx 6.4 Interdependent Calibrations on the MS-102, 128, 132 Machines
6 - 7
This page intentionally left blank.
6 Interdependent Calibrations Required for Individual Checks User’s Manual AutoCal Program
6.4 Interdependent Calibrations on the MS-102, 128, 132 Machines Software Version 114.xxx
6 - 8
7 AutoCal Measuring Sequence: Routine Checks on
HS-180 Placement Stations
DANGER
∆
!
∆
!
∆
!
DANGER OF ACCIDENT / DANGER OF CRASH
For the performance of the work described in the following it is prerequisite that you be familiar with the
contents of chapter 2 "Safety" and the description of the respective menu option in chapter 5! For the per-
formance of individual checks, chapter 6 must be observed in addition!
1. For the HS-180, start the AutoCal program as described in section 4.2.6 or 4.2.7.
The Machine selection menu (see section 1.4.1) is displayed.
When starting from diskette and using the set of DD-diskettes: At this point, insert installation diskette 2.
NOTE
UNIX machine data can only be processed if the following was selected from the machine selection
menu: Test HS-180 using SV 2.03 / 2.08 / 2.09 / UNIX
Please note: During the measurement of the machine, the station configuration (files "_.sk" and "_.kd")
on the line computer must not be changed as the changes will be overwritten upon restoring the master
data (from the work diskette). The work diskette (write protection deactivated) containing the MA-Data is
to remain in the disk drive of the station computer during the performance of the measurement!
2. Insert the work diskette containing the complete MA-data of the line into the disk drive.
3. Select the machine type to be calibrated together with the corresponding software version:
NOTE
On UNIX-based systems no file with the name "MA_DATEI" (on the DOS diskette) is allowed to be in the
disk drive, as first the MA_DATEI is searched for and only thereafter the UNIX files ("_ .sk" and "_ .kd").
➤ At this stage, the program performs a check as to which files will be required (e.g. MA_ZUSATZ) and
whether these are available and errorfree. If applicable, the following error message may be displayed:
"NO MACHINE DATA FOUND" or "MA_ZUSATZ NOT LOADED"
Remedy: Insert work diskette with the complete MA-data into the disk drive→ "AGAIN".
(Select END to exit from the program.)
➤ If the MA-data are not compatible with the selected machine type, a message appears on the screen,
as for example:
SELECTED SW VERSION DOES NOT CORRESPOND TO MA_DATEI VERSION
MA_DATEI-VERSION V2.01
SW-VERSION V2.03 /2.08 /2.09 / UNIX (ICOS 2 Q)
PLEASE CHECK FILE VERSION.
➤ If this error message is displayed it is absolutely necessary that the AutoCal program be restarted:
User’s Manual AutoCal Program 7 AutoCal Measuring Sequence: Routine Checks on HS-180 Placement Stations
Software Version 114.xxx
7 - 1
