Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
设定STEP MOTOR DRIVER DIP SWITCH
Page
3-7-12
Note

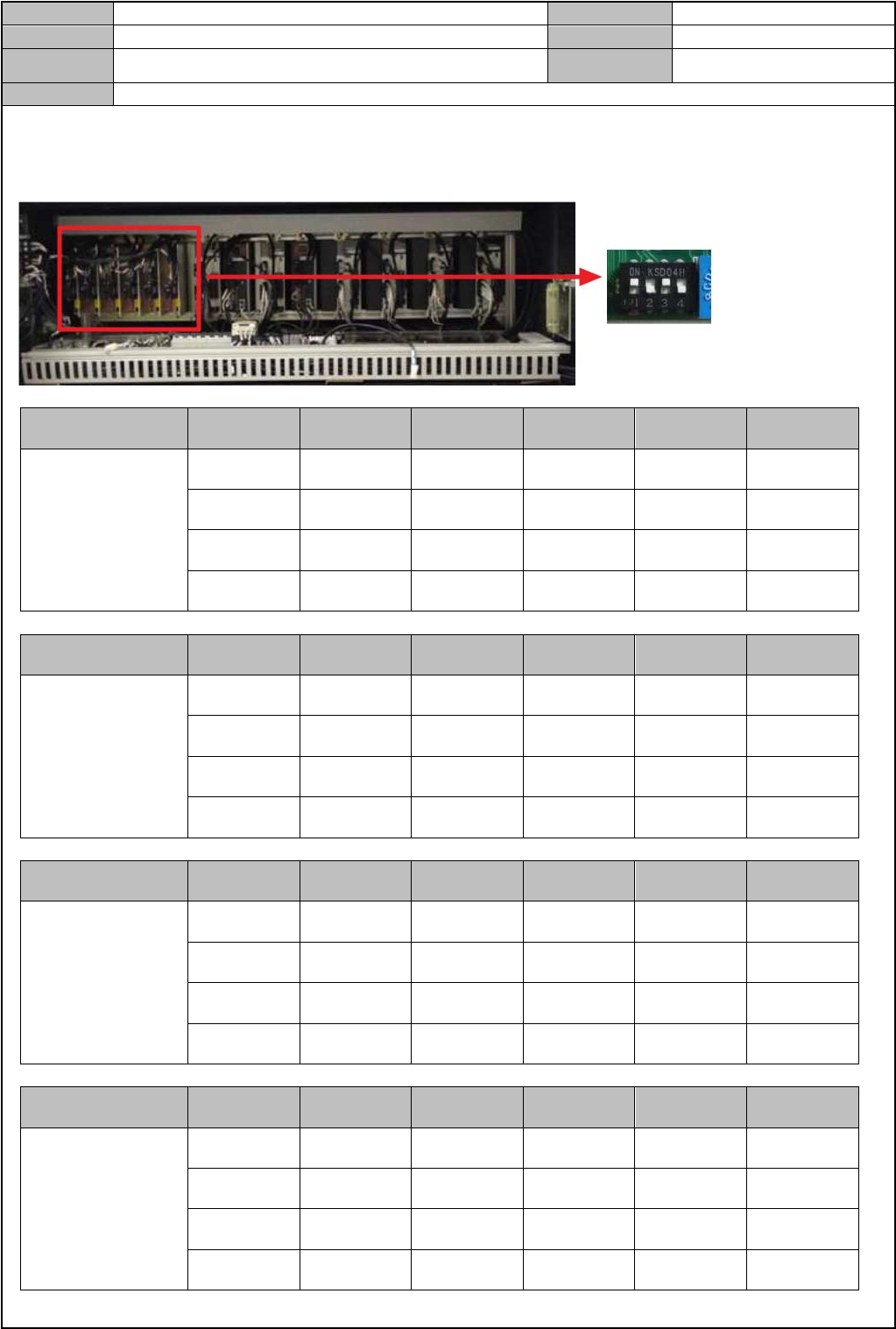

[设定 STEP MOTOR DRIVER DIP SWITCH]
Conveyor选项
MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (1-2-1)
ON ON ON ON ON ON
ON OFF OFF ON OFF OFF
ON ON ON ON ON ON
OFF OFF OFF OFF OFF OFF
Conveyor选项
MS1 WS1 WW1 MS2 WS2 WW2
Full Dual
ON OFF ON ON OFF ON
ON OFF OFF ON OFF OFF
OFF OFF ON OFF OFF ON
OFF OFF OFF OFF OFF OFF
Conveyor选项
MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (2-2-1)
ON OFF ON ON ON ON
ON OFF OFF ON OFF OFF
OFF OFF ON ON ON ON
OFF OFF OFF OFF OFF OFF
Conveyor选项
MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (1-2-2)
ON ON ON ON OFF ON
ON OFF OFF ON OFF OFF
ON ON ON OFF OFF ON
OFF OFF OFF OFF OFF OFF
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
检查参数(Y1, Y2)
Page
3-7-13
Note

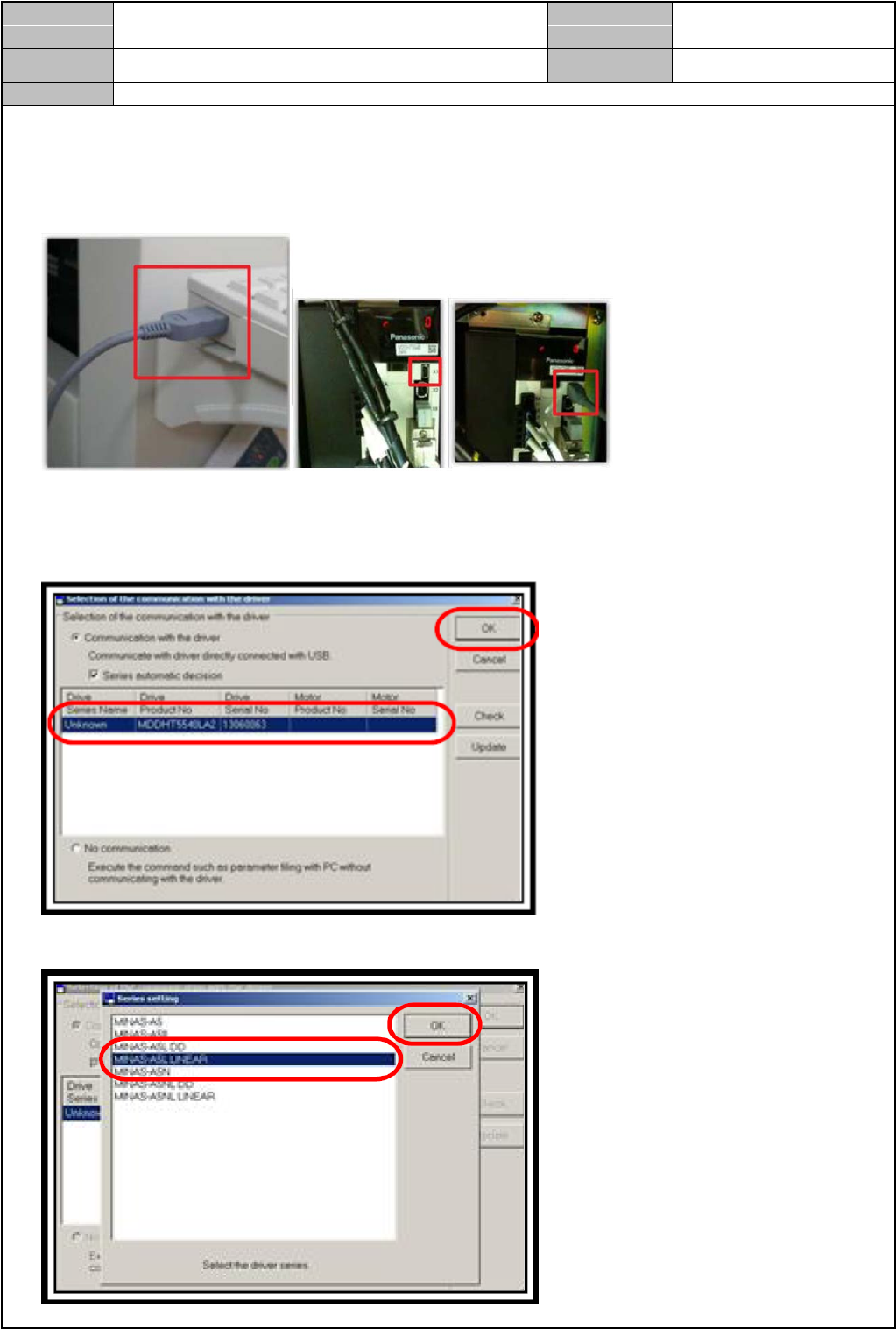

[检查参数(Y1, Y2)]
1. 用 Parameter Cable 连接 Keyboard USB Port 和 Y1 Motor Amplifier 的 X1 端子
2. 执行 PANATERM Ver.5.0 程序
3. 选择<MDDHT5540LA2>后，按下[OK]
4. 选择< LINEAR>后，按下[OK]
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
检查参数(Y1, Y2)
Page
3-7-14
Note
5. 选择<PARAMETER> → <READ-OUT FROM THE DRIVER> → <OK>
6. 选择<PARAMETER LIST>标签
7. 确认 CLASS 3 的 No.26
