Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.8 IT, LTS
Version
01
Title
安装IT功能(DEVICE NET DRIVER)
Page
3-8-16
Note
5. 按下[Finish]
PC自动发现硬件后，安装驱动程序
6. 在设备管理器，确认<CIF Communication Interface - CIF 4Channel PCI Adapter (PLX9030)>
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Total Pages
11
目录
[检查 DOCKING CART 启动] ............................................................................... 2
[设定 FEEDER BASE SLOT] ............................................................................... 4
[变更 FEEDER BASE SYSTEM OPTION] ........................................................... 6
[变更 FEEDER CHAGE 位置] .............................................................................. 7
[送料器浮起传感器设定] ....................................................................................... 8
[组装 FEEDER BASE]........................................................................................ 10
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
检查DOCKING CART启动
Page
3-9-2
Note

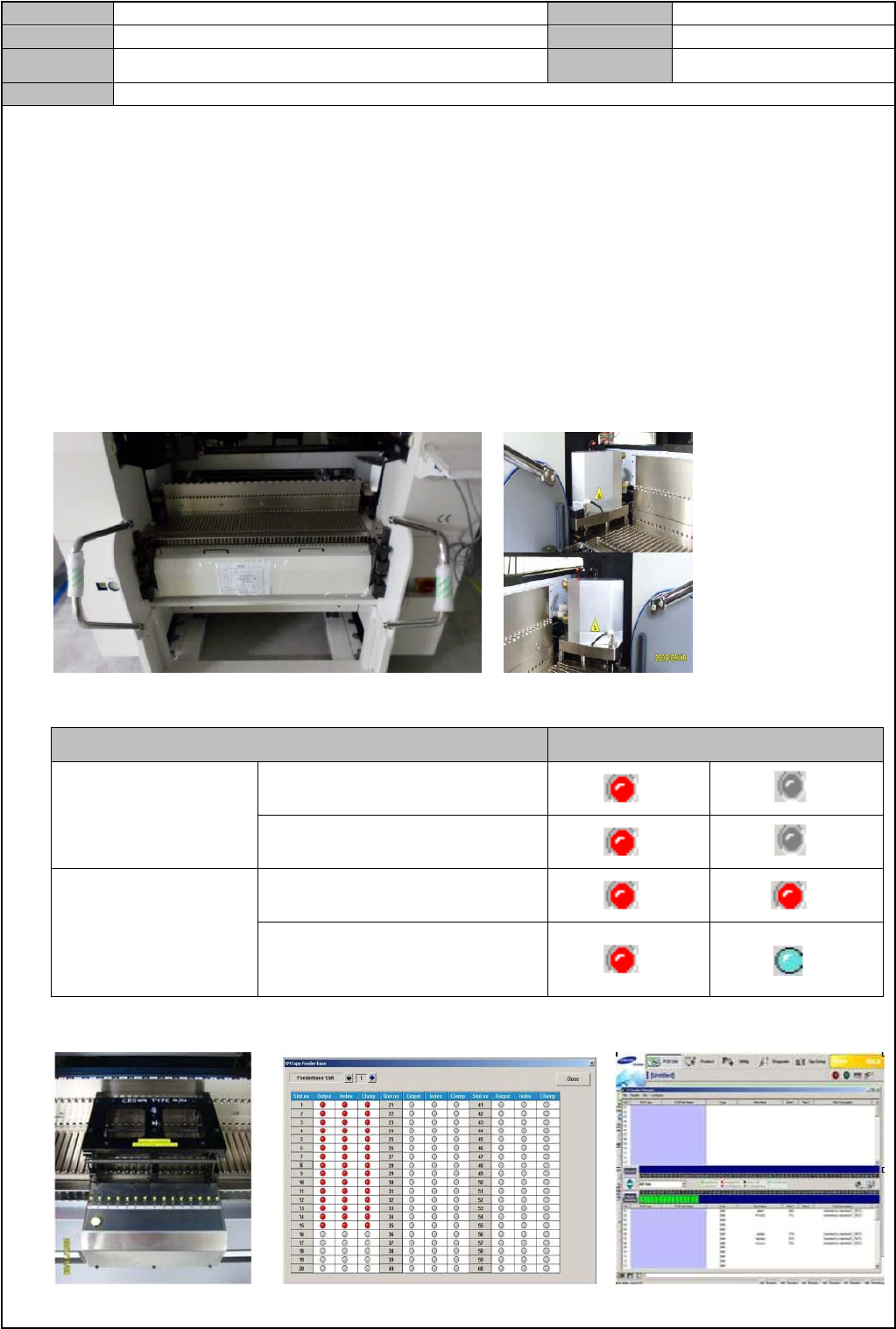

[检查 DOCKING CART 启动]
1. 确认是否将<Diagnosis> → <F2(I/O)> → <Sys.Setup> → <F4(Option)> → <Feeder Base System
Option>设定为<SM Docking 56>
2. 在<Feeder Base I/O>用送料器夹具，确认 I/O 到<Feeder Slot #1~#56>
3. 将 Docking Cart 安装于设备时，确认与 Block 的间隔是否为 20mm
4. 安装 Docking Cart 后，上下移动时，确认是否保持左右水平
5. 按照有无安装 Docking Cart，确认 Sensor IO 状态
分类 SENSOR 状态
IN PUT SENSOR
FRONT LEFT/RIGHT
DOCKING CART
REAR LEFT/RIGHT
DOCKING CART
OUT PUT SENSOR
FRONT/REAR DOCK
CART SOL_1_AIR
FRONT/REAR DOCK
CART SOL_1_UD
6. 用 Feeder I/O 夹具，打开送料器电源时，确认<Output>、<Index>、<Clamp> IO 信号是否正常通信
