Model DECAN Series Company SAMSUNG TECHWIN Module 3.10 FEEDER V ersion 01 Tit le 更换 T APE GUIDE Page 3-10-2 Note [ 更换 T APE GUIDE] 1. 用六角扳手取出 T ape guide 的固定轴 2. 从送料器拆卸 T ape guide 后，更换
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Total Pages
16
目录
[更换 TAPE GUIDE] ............................................................................................. 2
[清洁及更换 INDEX / LOADING SPROCKET] ..................................................... 3
[清洁及更换 SPLICING SPROCKET] .................................................................. 4
[更换 INDEX MOTOR] ......................................................................................... 6
[更换 LOADING MOTOR] .................................................................................... 9
[更换 SPLICING MOTOR] .................................................................................. 12
[更换控制板] ....................................................................................................... 15
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
更换TAPE GUIDE
Page
3-10-2
Note

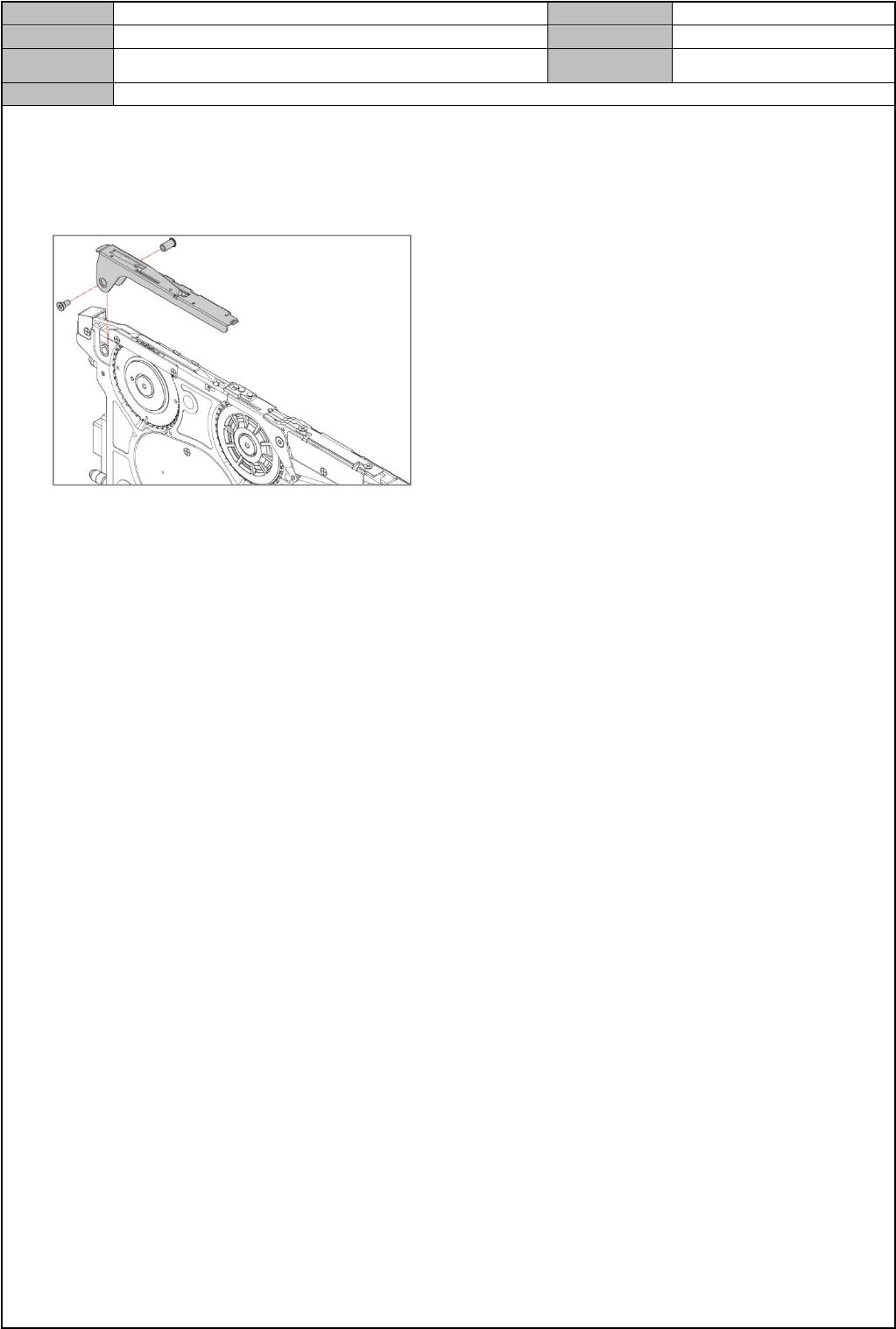

[更换 TAPE GUIDE]
1. 用六角扳手取出 Tape guide 的固定轴
2. 从送料器拆卸 Tape guide 后，更换
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
清洁及更换INDEX / LOADING SPROCKET
Page
3-10-3
Note

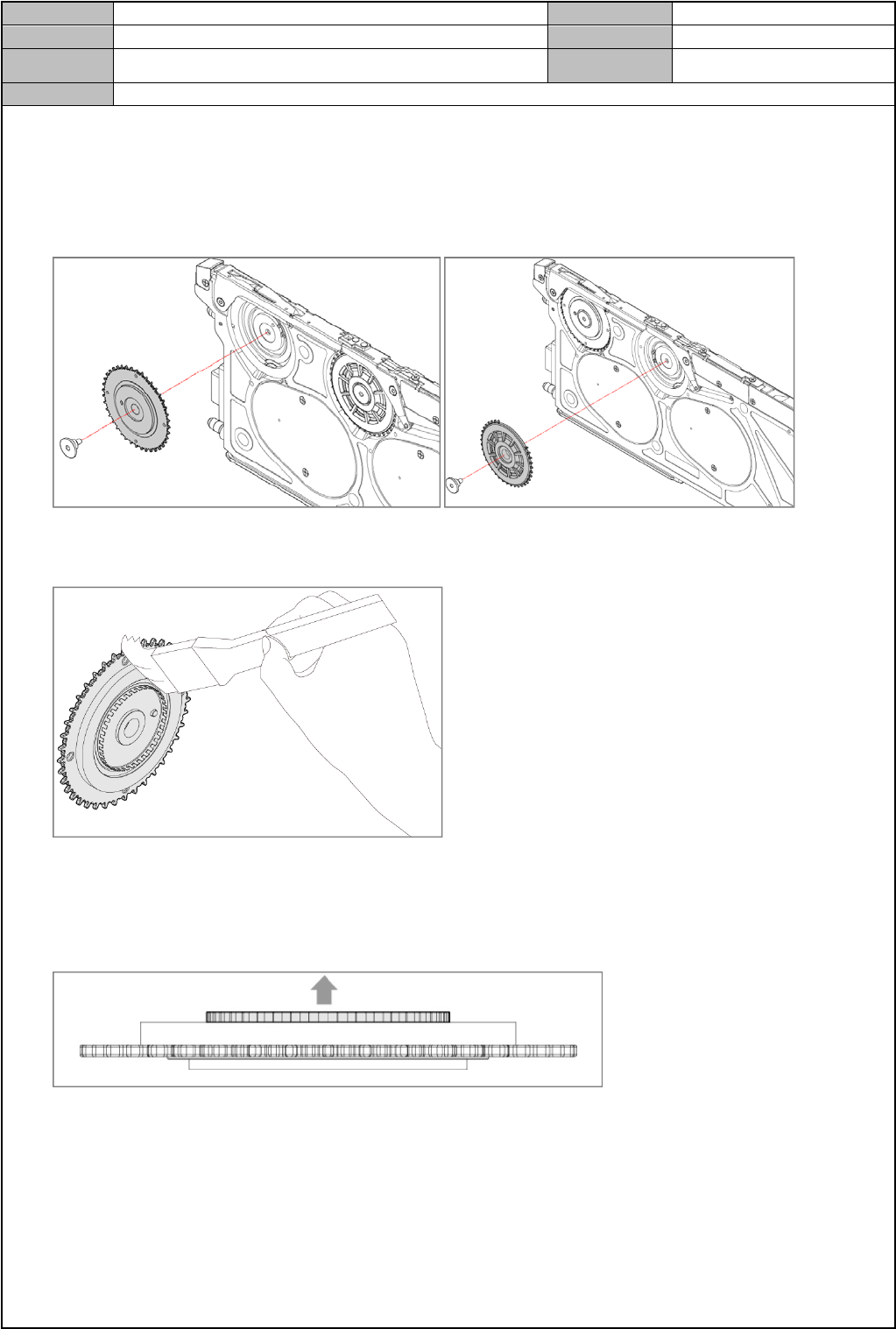

[清洁及更换 INDEX / LOADING SPROCKET]
1. 更换 Index sprocket 或 Loading sprocket 时，用六角扳手取出 Sprocket 的固定轴后，从送料器拆卸
Index sprocket
Index Sprocket Loading Sprocket
2. 用干净抹布擦拭 Sprocket 的齿轮后，涂抹润滑脂
3. 在固定轴涂抹 LOCTITE 641
* Sensor Dog必须总是向上，注意是否有异物
4. 将 Sprocket 组装到送料器主机后，设定
-设定原点、传感器初始化、映射
