Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-17
Note

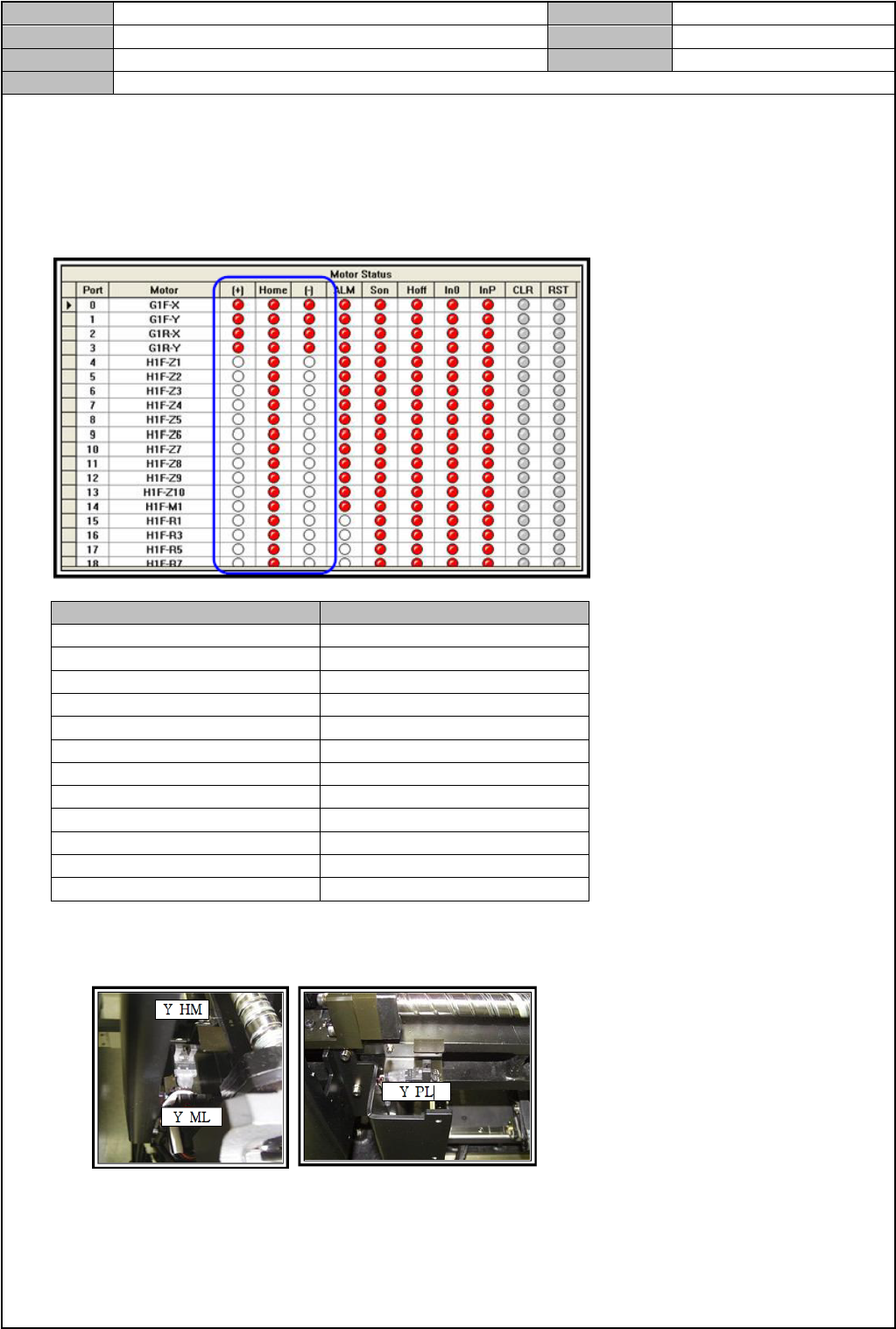

[MOTOR IO CHECK]
准备 Motor IO Check
在 MMI 选择<Diagnosis> → <Motor I/O>后，生成<Motor 状态>窗口
MMI LABEL
G1F-Y(+) FY-PL
G1F-Y(HOME) FY-HM
G1F-Y(-) FY-ML
G1R-Y(+) RY-PL
G1R-Y(HOME) RY-HM
G1R-Y(-) RY-ML
G1F-X(+) FX-PL
G1F-X(HOME) FX-HM
G1F-X(-) FX-ML
G1R-X(+) RX-PL
G1R-X(HOME) RX-HM
G1R-X(-) RX-ML
Motor IO Check
① 边移动 Y 轴，确认是否感应 G1F-Y(+, Home, -)、G1R-Y(+, Home, -)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-18
Note

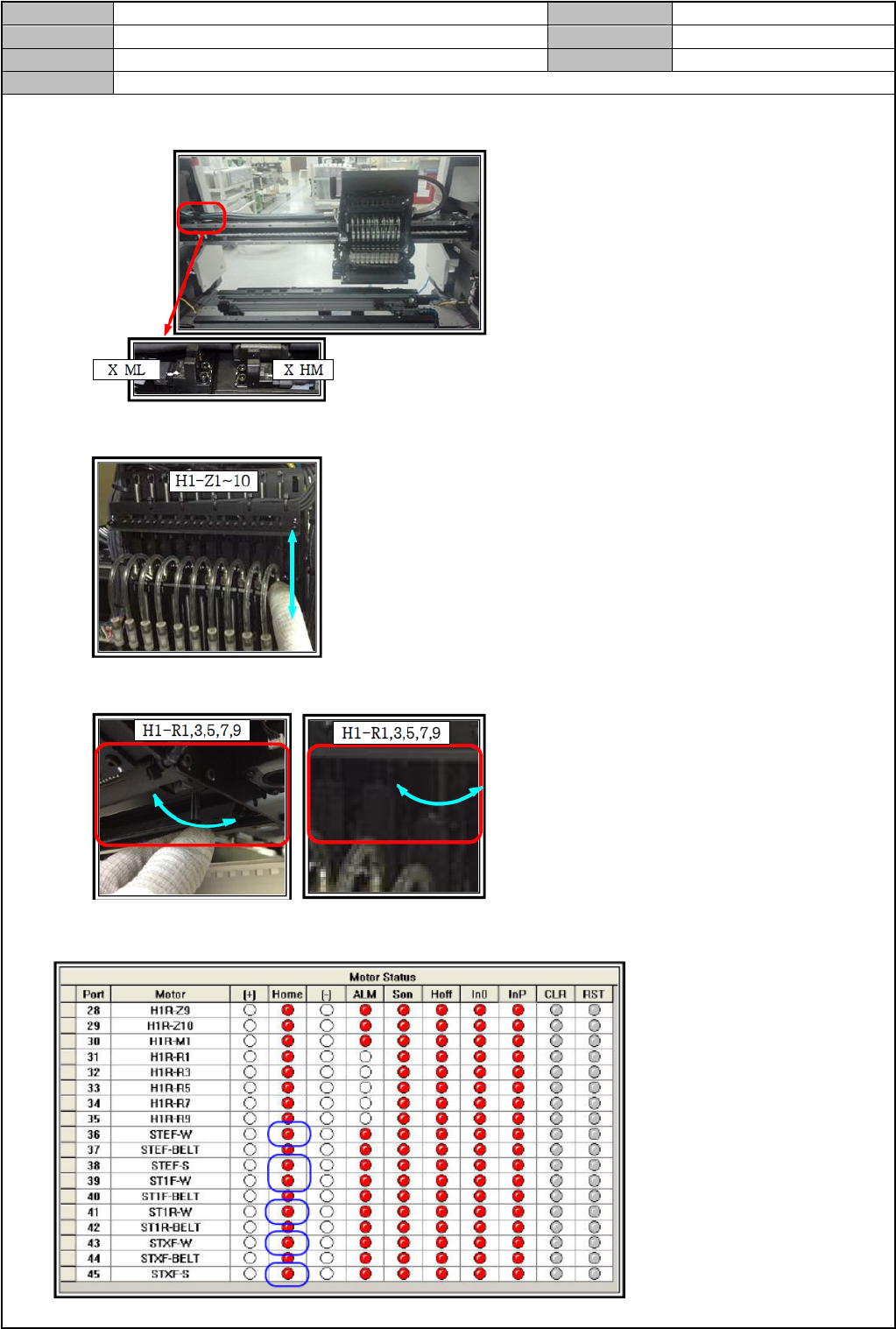

② 在移动 X 轴时，确认是否感应 G1F-X(Home, -)、G1R-X(Home, -)
③ 确认是否感应 H1F-Z1~10、H1R-Z1~10 Z 轴 Home Sensor
④ 确认是否感应 H1F-R1,3,5,7,9、H1R-R1,3,5,7,9 R 轴 Home Sensor
确认 Conveyor Sensor
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-19
Note

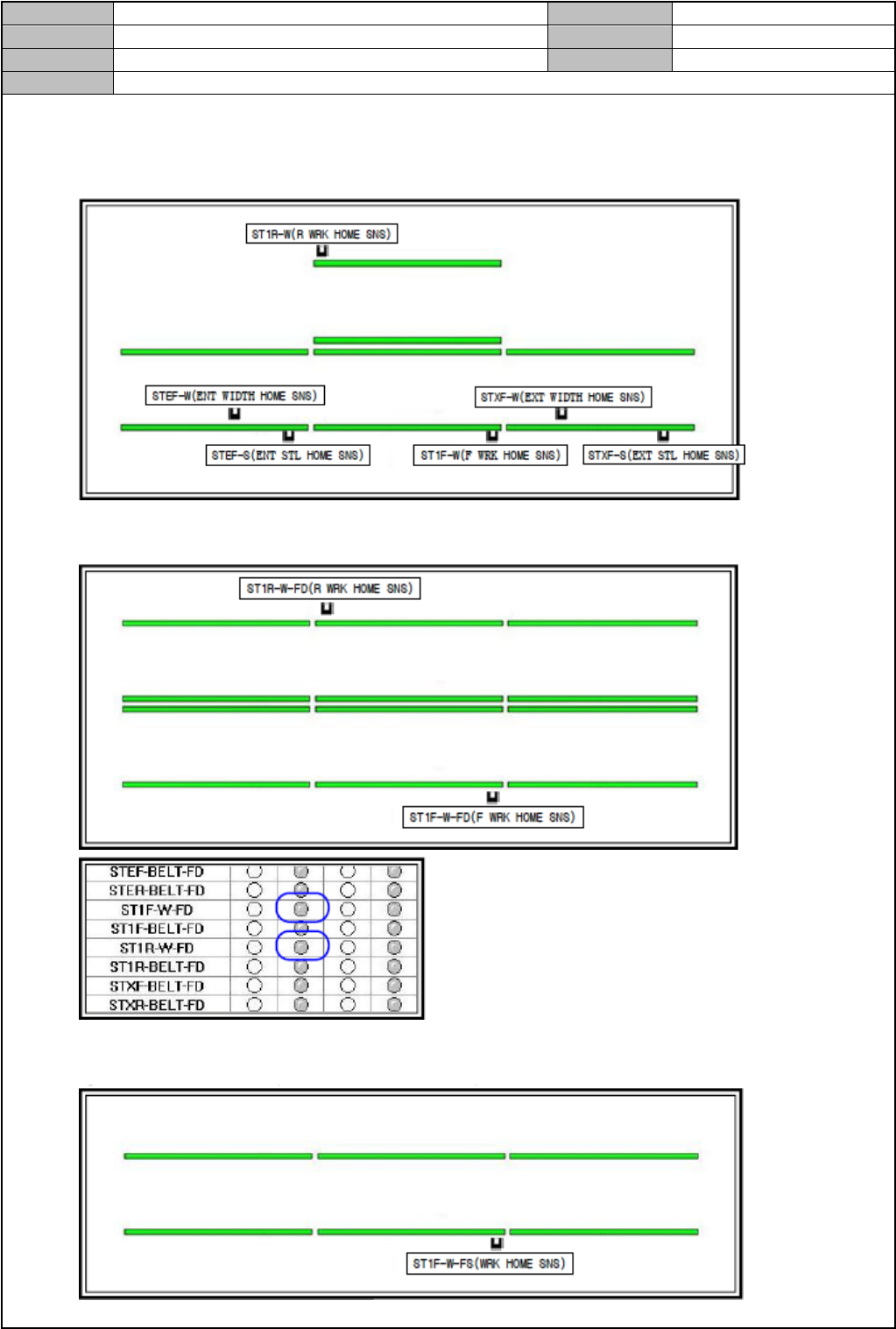

确认 Conveyor Sensor
确认是否感应 Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor
FullDual Conveyor (Dual - Dual - Dual)
FullDual Conveyor (Dual - Dual - Dual)
