Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.1 ANC
Version
01
Title
ANC安装位置及设定
Page
3-1-11
Note

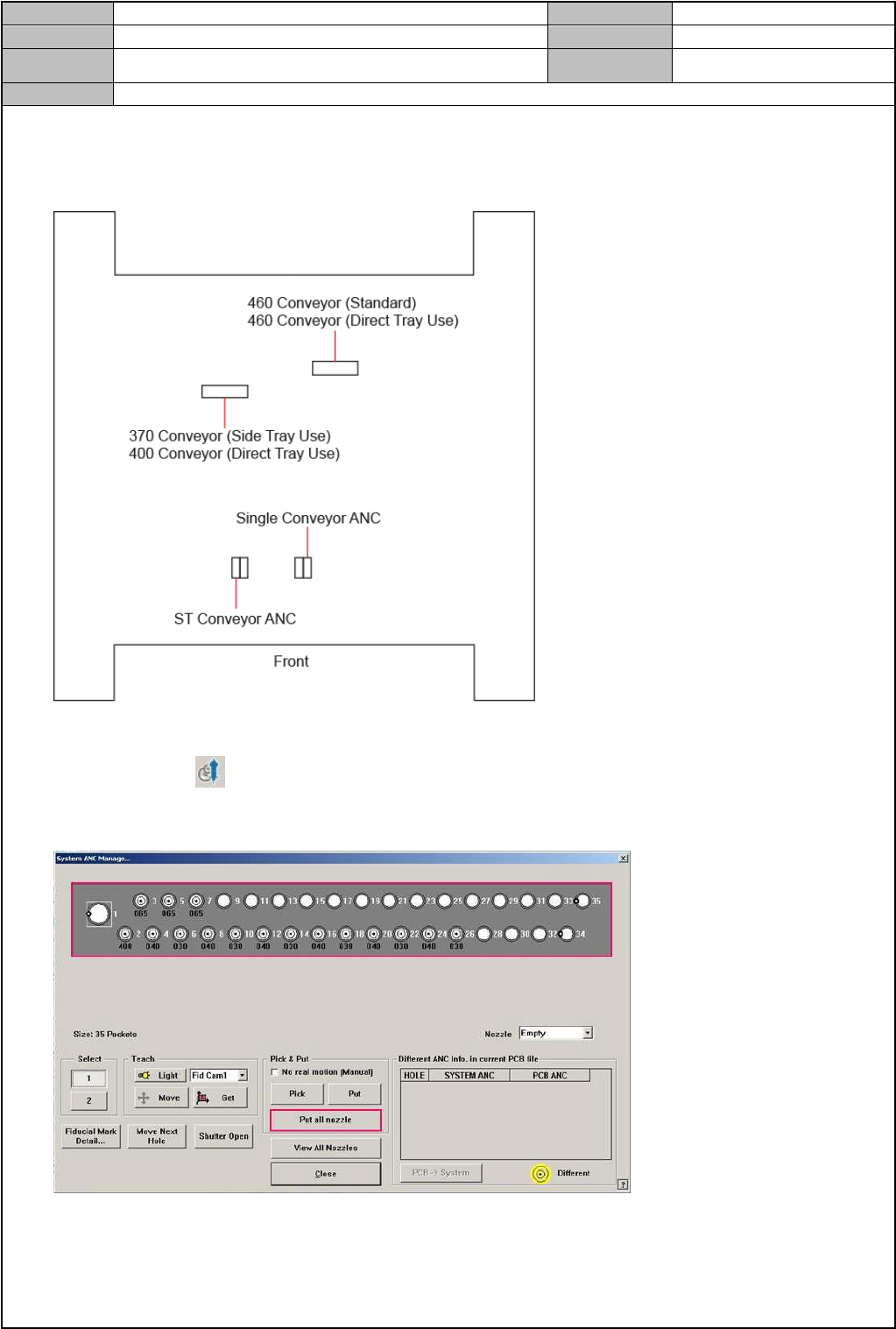

[ANC 安装位置及设定]
设定安装位置
设定 MMI
1. 点击 MMI 的 ，启用 ANC 设定窗口
2. Head 1~10 上安装 CN040 喷嘴状态下，执行 ANC 的<Put All Nozzle>，将喷嘴位于 ANC
3. 确认能否将喷嘴吸附到 Head 以及能否放置到 ANC
4. 确认启动中是否发生 ANC 错误、TSKSCH 错误等
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Total Pages
34
目录
[电路板异常时故障症状] ....................................................................................... 2
[BOARD DRIVER SETTING 检查] ....................................................................... 8
[VISION IF BOARD 及 SMPS 检查] ................................................................... 10
[CONVEYOR IF BOARD SHORT TEST] ........................................................... 11
[更换 SAFETY FROP BOARD] .......................................................................... 12
[更换 HEAD AMP BOARD] ................................................................................ 14
[更换 AXIS IO BOARD] ...................................................................................... 16
[更换 HEAD IF BOARD] ..................................................................................... 18
[更换 HEAD MOTOR IF BOARD] ...................................................................... 20
[更换 HEAD VACUUM SENSOR BOARD] ........................................................ 22
[更换 AXIS SENSOR BOARD] ........................................................................... 23
[更换 VISION IF BOARD] ................................................................................... 24
[更换 PC RACK 的各电路板] .............................................................................. 26
[更换 FEEDER BASE BOARD] .......................................................................... 28
[更换 FLY CAMERA IO BOARD] ....................................................................... 29
[更换 FEEDER IO BOARD] ................................................................................ 30
[更换 FEEDER INPUT EXT BOARD] ................................................................. 31
[更换 CAN CONVEYOR BOARD] ...................................................................... 32
[更换 CONVEYOR SUB IF BOARD] .................................................................. 34
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
电路板异常时故障症状
Page
3-2-2
Note
[电路板异常时故障症状]
分类
Head
AMP
Board
Axis
IO
Board
SBC
Board
NT
A8
Board
Back
Plane
Board
Vision
IF
Board
Feeder
IO
Board
CAN
Conveyor
Board
供给设备的气动异
常
O
Ready 启用时，所
有轴上不供应电机
电源
O
设备之间不可
Interface
O
发生发动机轴相关
报警
O
不能引入、排出
PCB(皮带启动不
良)
O
BUT 上/下移动错
误
O
不能感应Stopper
上升、下降传感器
O
发生"AMP未启
动。"错误(不能轴
复位)
O O
Edge Fixer 开启、
关闭失败
O
发生"电机或原点
位置被变更"错误
O
发生STEF或
STXF-S追踪误差
错误
O
发生输送带的宽度
调节错误
O
