Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le 检查 SHUTTLE 部连接状态 Page 3-5-15 Note Shuttle 部电缆拖链 前面部 Shuttle 布线 后面部 Shuttle 布线
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
检查SHUTTLE部连接状态
Page
3-5-14
Note
[检查 SHUTTLE 部连接状态]
Shuttle 前/后左右面 Connector 连接标签- Standard (左 → 右)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
宽度调节电机上方 ↔ IN-WD-EN EX-WD-EN ↔ 宽度调节电机上方
宽度调节电机下方 ↔ IN-WD-PW EX-WD-PW ↔ 宽度调节电机下方
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
相机传感器 ↔ IN-WD-H
EX-F-BD-OUT ↔ EX-F-BD-OUT
无 ↔ EX-F-BD-OUT EX-WF-H ↔ 相机传感器
Shuttle 前/后左右面 Connector 连接标签- Standard (左 → 右)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
↔ IN-WD-EN EX-WD-EN ↔ 宽度调节电机上方
宽度调节电机下方 ↔ IN-WD-PW EX-WD-PW ↔ 宽度调节电机下方
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
光传感器 ↔ IN-WD-H EX-WF-H ↔ 光传感器
EX-F-BD-OUT ↔ EX-F-BD-OUT
EX-F-BD-OUT ↔ 无
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
检查SHUTTLE部连接状态
Page
3-5-15
Note

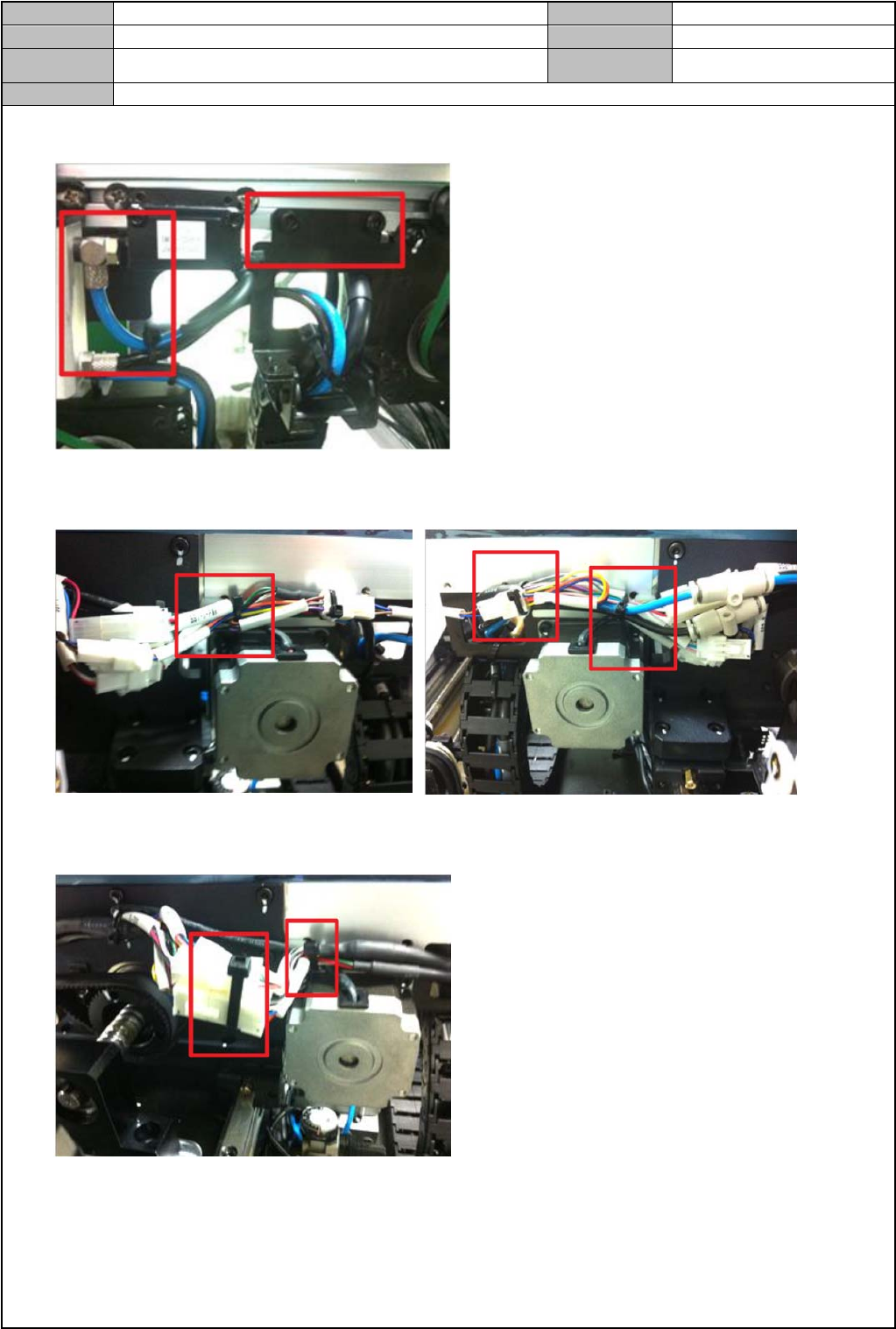

Shuttle 部电缆拖链
前面部 Shuttle 布线
后面部 Shuttle 布线
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
检查SHUTTLE部连接状态
Page
3-5-16
Note
Shuttle 前/后左右面 Connector 连接标签- Dual(左 → 右)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT3 EX-BELT3 ↔ BELT-M
IN-R-WT ↔ IN-R-WT EX-R-OUT1 ↔ EX-R-OUT1
IN-R-IN ↔ IN-R-IN EX-R-OUT2 ↔ EX-R-OUT2
无 ↔ EX-R-BD-OUT
EX-R-BD-OUT ↔ EX-R-BD-OUT
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT2 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
无 ↔ EX-F-BD-OUT
EX-F-BD-OUT ↔ EX-F-BD-OUT
Shuttle 前/后左右面 Connector 连接标签- Dual(Right → Left)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT3 EX-BELT3 ↔ BELT-M
IN-R-WT ↔ IN-R-WT EX-R-OUT1 ↔ EX-R-OUT1
IN-R-IN ↔ IN-R-IN EX-R-OUT2 ↔ EX-R-OUT2
EX-R-BD-OUT ↔ EX-R-BD-OUT
EX-R-BD-OUT ↔ 无
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT2 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
EX-F-BD-OUT ↔ EX-F-BD-OUT
EX-F-BD-OUT ↔ 无
