Model DECAN Series Company SAMSUNG TECHWIN Module 3.9 DOCKING CART & FEEDER BASE V ersion 01 Tit le 设定 FEEDER BASE SLOT Page 3-9-4 Note [ 设定 FEEDER BASE SLOT] Fix Camera 1 个时 Camera Setting → Camera Select → Fix Ca…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
检查DOCKING CART启动
Page
3-9-3
Note

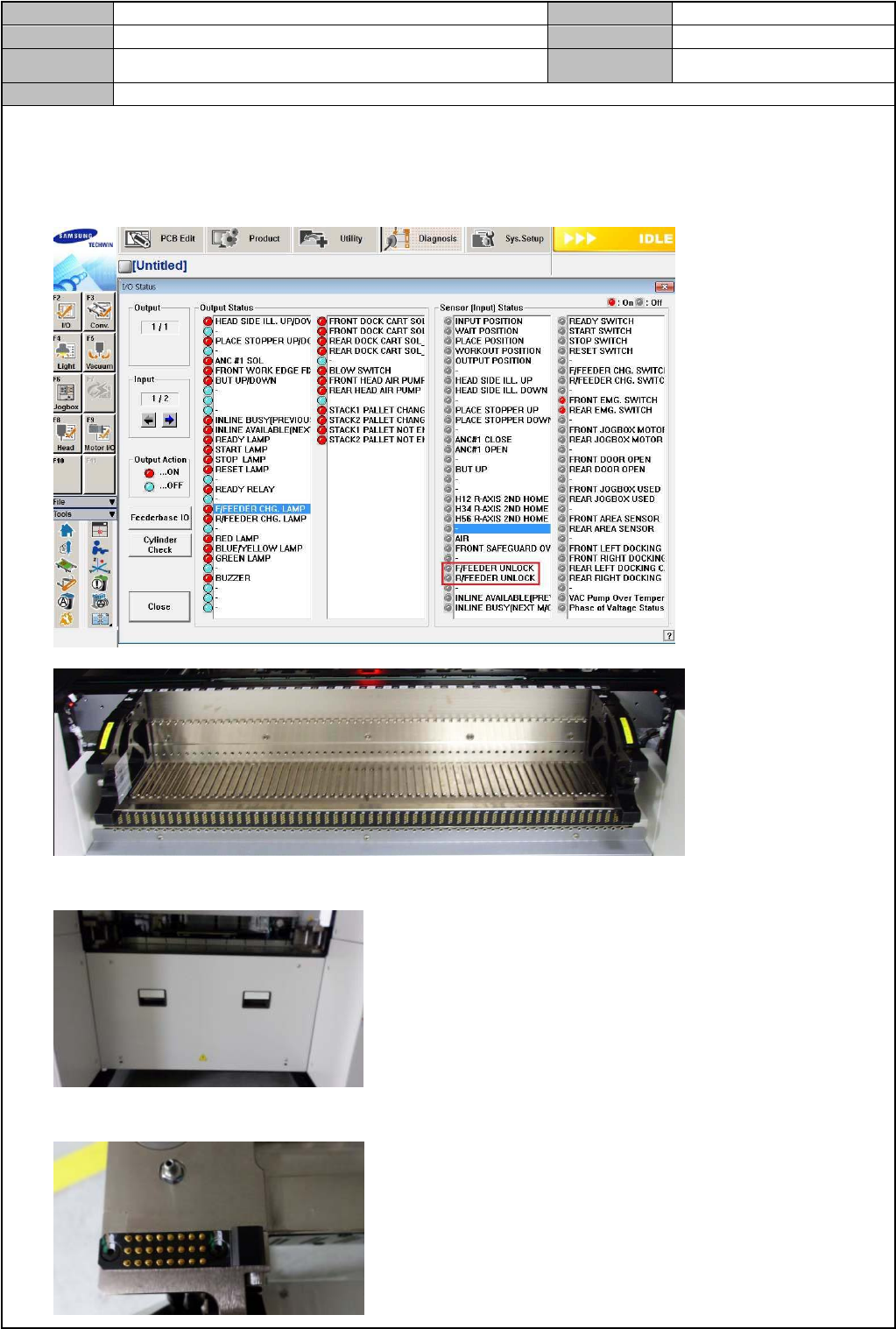

7. 依次将 Feeder Origin 夹具插入到 Feeder Slot 后，确认送料器浮起传感器的启动状态
Docking 类型送料器 : 1. 28, 55
一般送料器 : 1, 30, 59
8. Docking Feeder 时，确认前面下方盖板是否 Docking 用
9. 确认 Docking Feeder Prove Pin 有无异常
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
设定FEEDER BASE SLOT
Page
3-9-4
Note
[设定 FEEDER BASE SLOT]
Fix Camera 1 个时

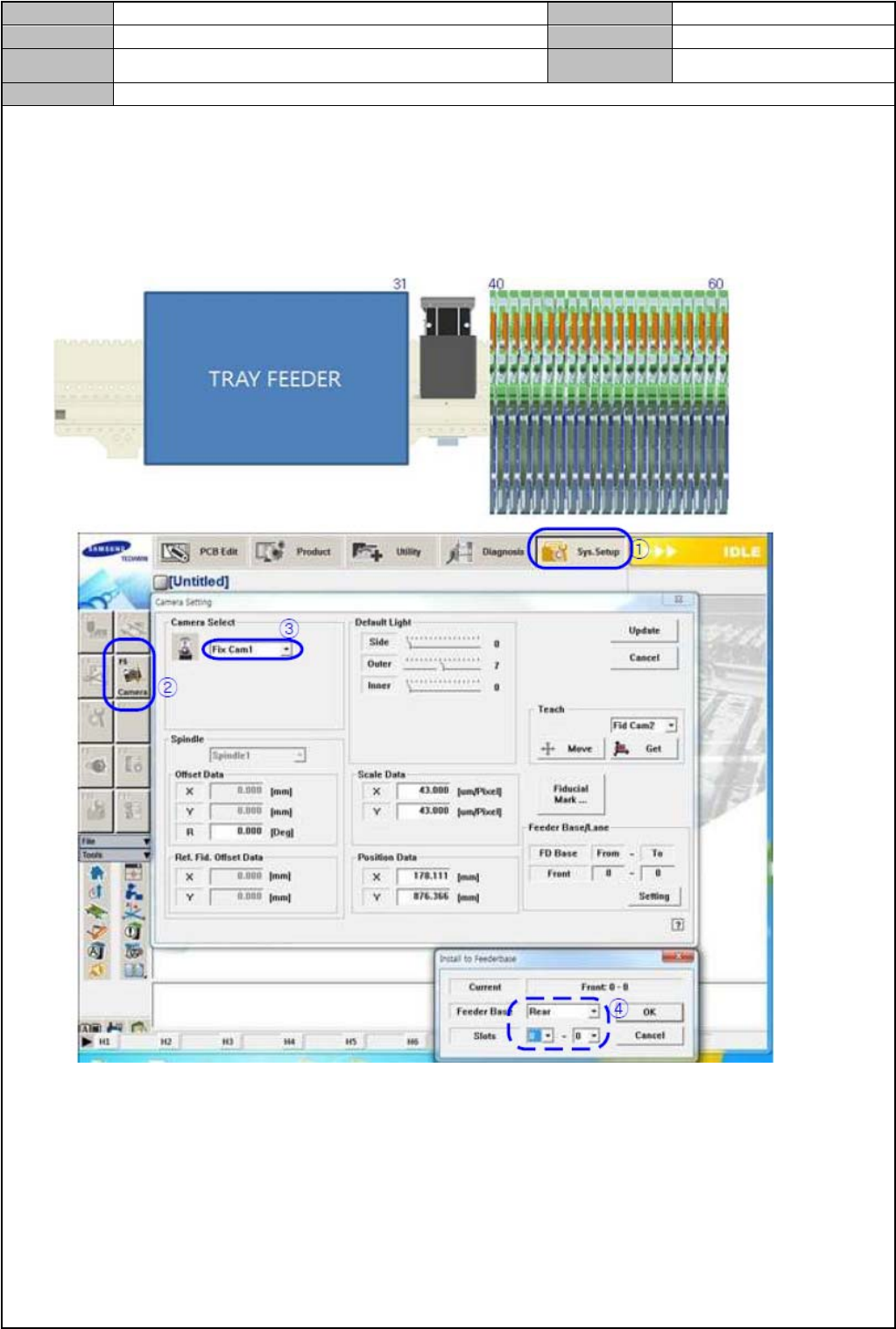

Camera Setting → Camera Select → Fix Cam1 → Setting (Slot 32~39)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
设定FEEDER BASE SLOT
Page
3-9-5
Note
Fix Camera 两个时
Camera Setting → Camera Select → Fix Cam1 → Setting (Slot 32~39, 40~45)
