Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
组装MOTOR DRIVER
Page
3-11-42
Note

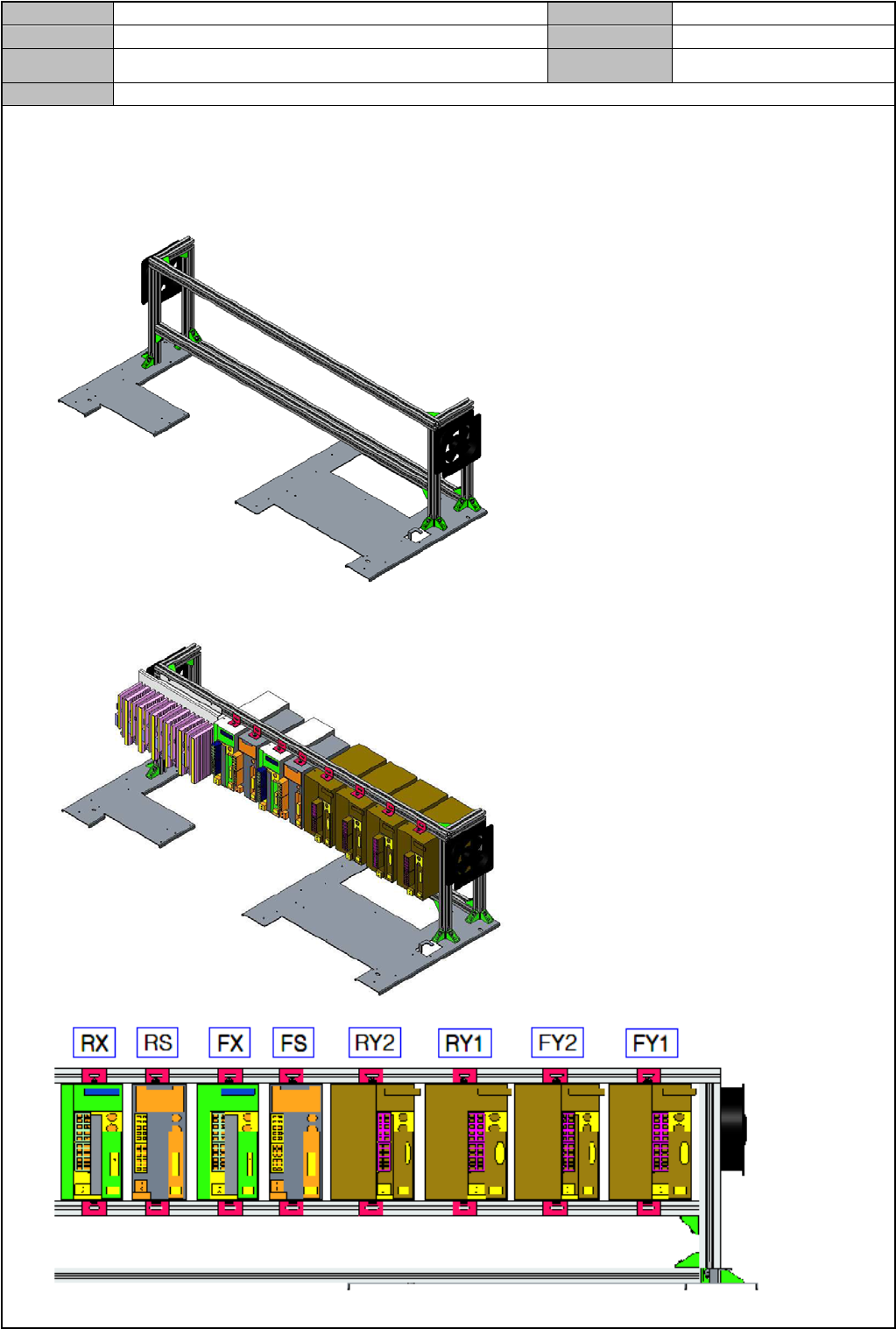

[组装 MOTOR DRIVER]
1. 准备托架
2. 组装 Motor Driver
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
组装MOTOR DRIVER
Page
3-19-43
Note

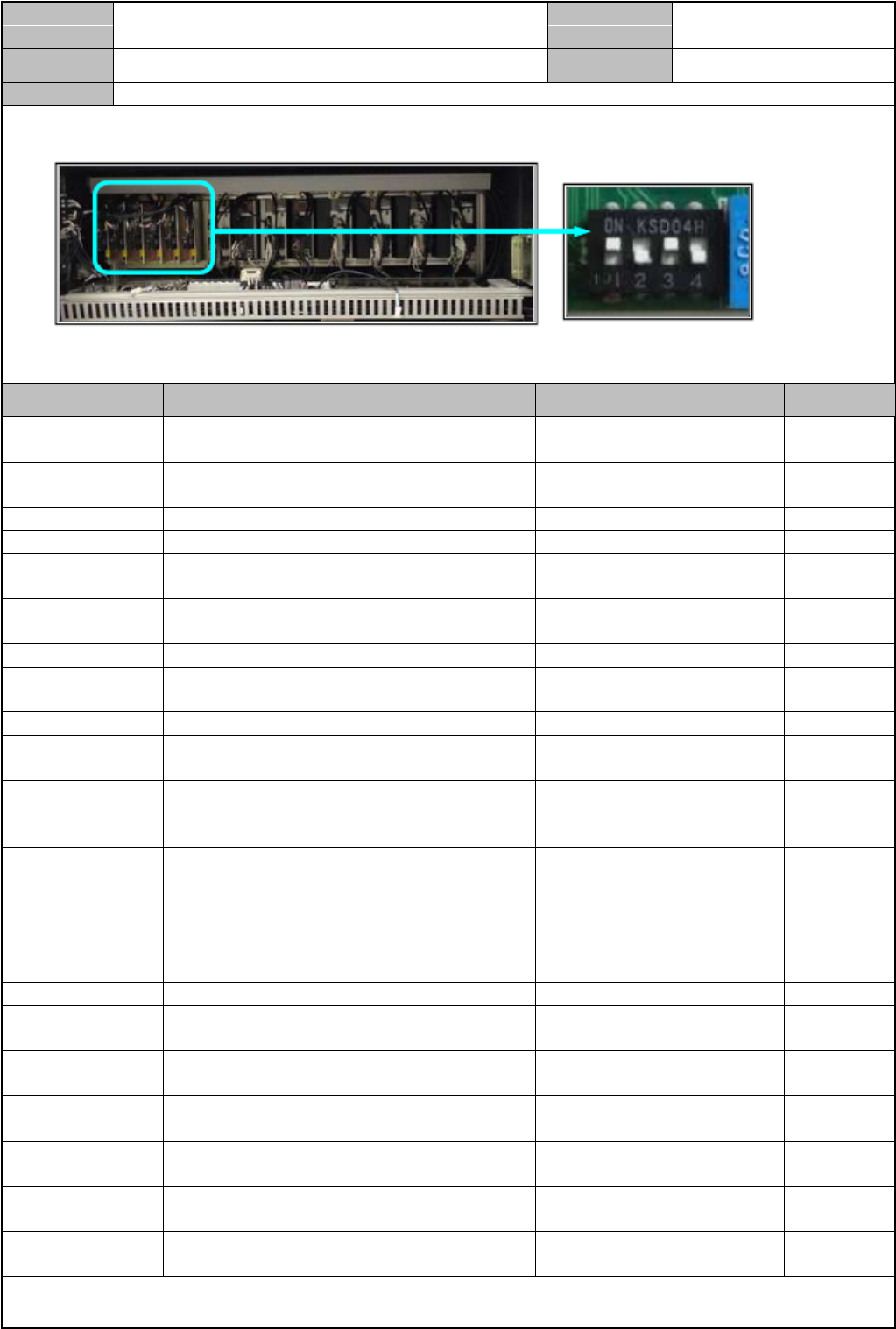

3. 设定 Step Motor Driver 的 Dip Switch
4. 连接电缆
规格 品名
START END
SM41 SC006 MC1 ENABLE CABLE ASSY
C
1/+A1,21
MC1/-A2,22
SC-CN18,
SC-CN19
SM411 PW029 SHUTTLE WIDTH PW CABLE ASSY
S
1.WS1,WW1,MS2.WS2.
W
2-CN1
DP2-CN2,
3,4,5
SM471 PW007 CABLE ASSY-CP1 TB1 MC1 TB1-1A,6A CP1-2,4
SM471 PW008 CABLE ASSY-CP2 TB1 MC2 CABLE
C
1-1,3,5TB1-13A,15A CP3-2,4,6
SM471 PW018 CABLE ASSY-FY1 FY2 SERVO POWER 1-13C,15C,17C,19C,21C
PE15,16
FY1, FY2
DRV
SM471 PW019 CABLE ASSY-RY1 RY2 SERVO POWER 1-14C,16C,18C,20C,22C
PE17,18
RY1, RY2
DRV
SM471 PW111-2 CABLE ASSY-TB1 FS1 FS2 TB1-9C,10C FS1,FS2-B
SM471 PW115 CABLE ASSY-MC1 TB1 MC1-2,4,6 TB1-17A,1
9A,21A
SM471 PW120-3 CABLE ASSY-TB1 MC1 MC1-13 TB1-11B
SM471 SC007-1 AXIO BD 1 PWR CABLE ASSY SC-CN27 AXIO#1-C
N2
SM511 PW016 L
IQI
CABLE ASSY-FX,FS SERVO POWER 1-13B,15B,17B,19B,21B
PE11,12
FX,FS-
DRV
FX,FS-PE
SM511 PW017 L
IQI
CABLE ASSY-RX,RS SERVO POWER 1-14B,16B,18B,20B,22B
PE13,14
RX, RS-
DRV
RX, RS-P
E
SM511 PW112 CABLE ASSY-FAN POWER TB1-6D, TB1-7D FS3-B, FS
4-B
SM511 PW113 CABLE ASSY-SERVO FAN POWER TB1-8D FS5-B
SM511C VM003 CABLE ASSY-FY1 FY2 DRV COMMAND AXIO#1-CN11, AXIO#1-CN
12
FY1,2-DR
V
SM511C VM004 CABLE ASSY-RY1 RY2 DRV COMMAND AXIO#1-CN13, AXIO#1-CN
14
RY1,2-DR
V
SM511C VM005 CABLE ASSY-FX FS DRV COMMAND AXIO#1-CN15, AXIO#1-CN
16
FX,RX-DR
V
SM511C VM013 CABLE ASSY-MS1 WS1 DRV COMMAN AXIO#1-CN21, AXIO#1-CN
22
MS1,WS1-
DRV
SM511C VM014 CABLE ASSY-WW1 MS2 DRV COMMAN
D
AXIO#1-CN23, AXIO#1-CN
24
WW1,MS1
-DRV
SM511C VM015 CABLE ASSY-WS2 WW2 DRV COMMAN
D
AXIO#1-CN25, AXIO#1-CN
26
WS2,WW2
-DRV
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
更换Z、R轴传感器(F2)
Page
3-11-44
Note
[更换 Z、R 轴传感器(F2)]
Z轴传感器
1. 拆卸连接到传感器的电缆
2. 松开固定传感器的固定螺栓后，拆卸
3. 更换新传感器
4. 从左侧依 Z1～Z10 顺序进行组装
5. 组装时涂抹 Loctite243
R轴传感器
1. 拆卸连接到传感器的电缆
2. 松开固定传感器的固定螺栓后，拆卸
3. 更换新传感器
4. 组装时涂抹 Loctite243
