Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.18 VACUUM DEVICE

Version

Title

更换VACUUM PUMP(OPTION)

Page

3-18-17

Note

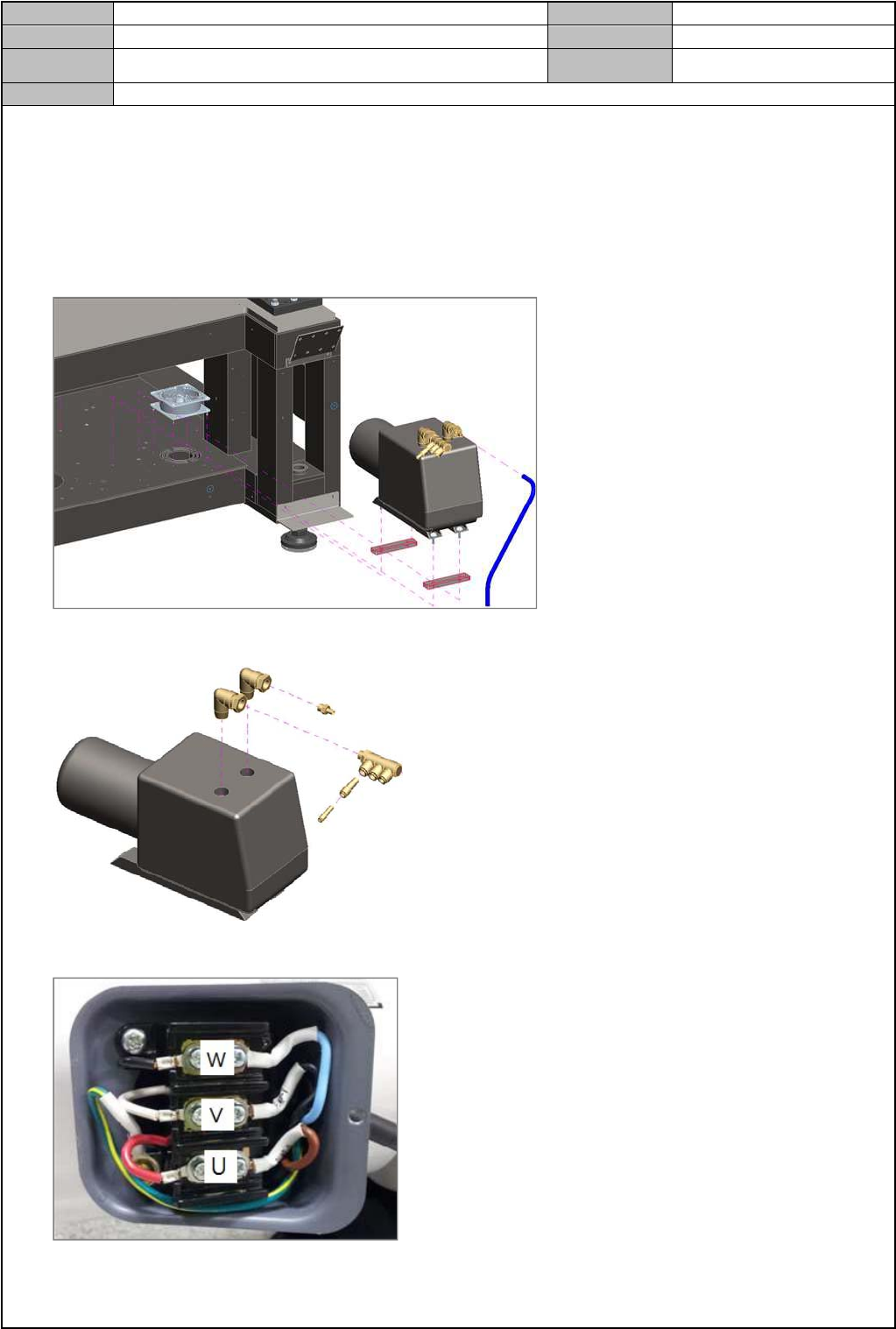

[更换 VACUUM PUMP(OPTION)]

1. 拆卸连接到设备前下方的 Vacuum Pump 的气动软管

2. 松开固定 Vacuum Pump 的固定螺栓后，拆卸

3. 拆卸组装于 Vacuum Pump 的配件

4. 更换新 Vacuum Pump 后，打开配电部后，如下布线电缆

5. 将 Vacuum Pump 组装于设备后，连接气动软管

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.18 VACUUM DEVICE

Version

Title

检查SOLENOIDE VALVE

Page

3-18-18

Note

[检查 SOLENOIDE VALVE]

 检查连接到 Solenoid Valve 的配件

 再组装连接到 Solenoid Valve 的配件

 检查连接到 Solenoid Valve 的气动软管

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.19 ELECTRIC DEVICE

Total Pages

[组装 FRONT POWER PANEL SUB] ................................................................... 2

[组装 REAR POWER PANEL SUB] ..................................................................... 4

[MAIN 电源 SHORT TEST] .................................................................................. 6

[DC 电源 SHORT CHECK] ................................................................................. 11

[电压 CHECK TEST] .......................................................................................... 12

[变更设备电源 AC380V] ..................................................................................... 23

[测定接地电阻] ................................................................................................... 24

[更换电源] .......................................................................................................... 25

[组装 MOTOR DRIVER] ..................................................................................... 27

[SMEMA 检查].................................................................................................... 29

[组装其他安装品] ................................................................................................ 30

[再连接 MOTOR DRIVER CABLE] .................................................................... 31
