Model DECAN Series Company SAMSUNG TECHWIN Module 3.12 MMI V ersion 01 Tit le MOTOR IO CHECK Page 3-12-19 Note 确认 Conveyor Sensor 确认是否感应 Shuttle Conveyor (Sh uttle - Dual - Shuttle) Sensor FullDual Conveyor (Dual -…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-18
Note
② 在移动 X 轴时，确认是否感应 G1F-X(Home, -)、G1R-X(Home, -)
③ 确认是否感应 H1F-Z1~10、H1R-Z1~10 Z 轴 Home Sensor
④ 确认是否感应 H1F-R1,3,5,7,9、H1R-R1,3,5,7,9 R 轴 Home Sensor
确认 Conveyor Sensor
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-19
Note
确认 Conveyor Sensor
确认是否感应 Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor
FullDual Conveyor (Dual - Dual - Dual)
FullDual Conveyor (Dual - Dual - Dual)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-20
Note

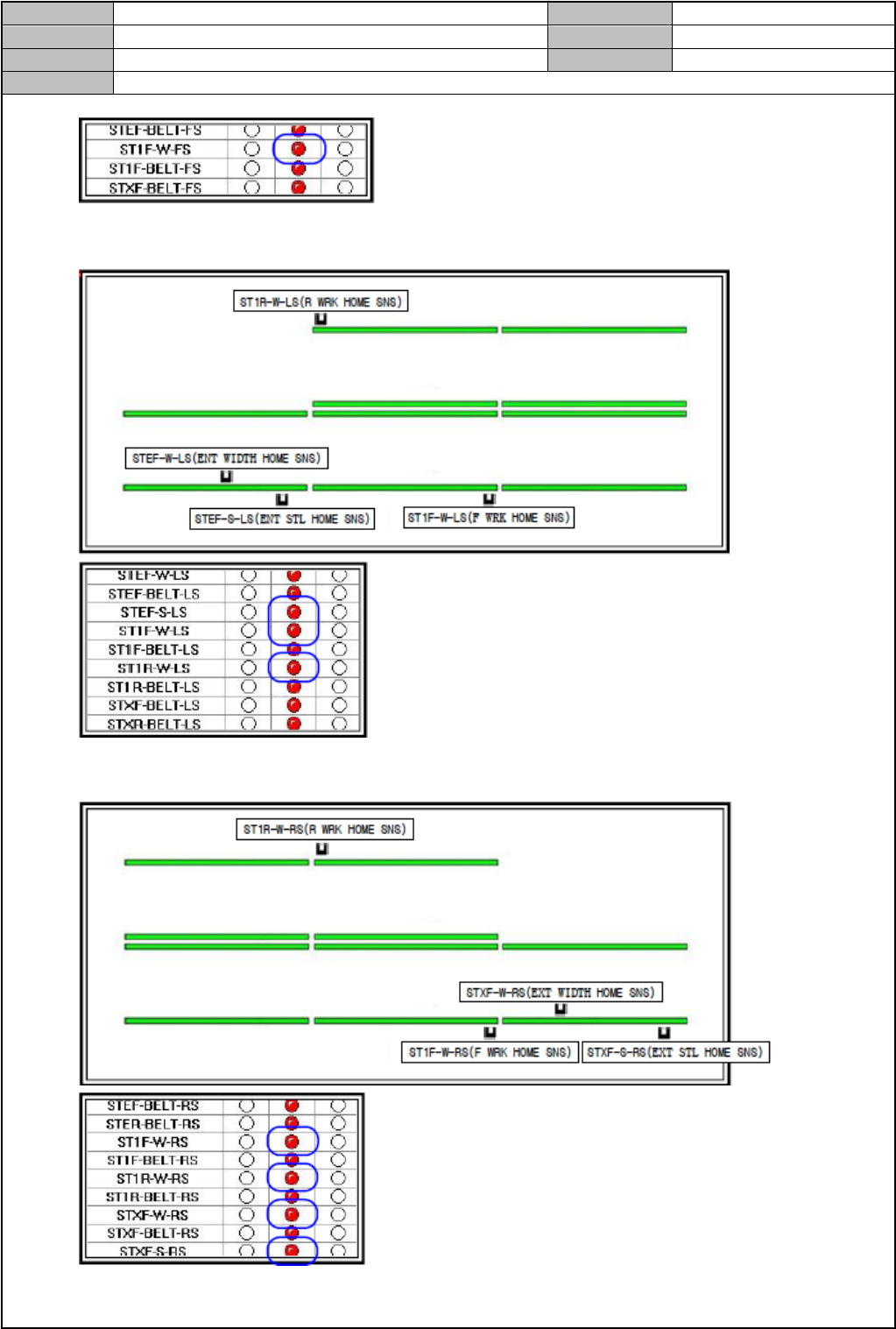

LeftOnlyShuttle Conveyor (Shuttle - Dual - Dual)
RightOnlyShuttle (Dual - Dual - Shuttle)
