Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le 更换 STOPPER CYLINDER Page 3-5-30 Note [ 更换 STOPPER CYLINDER]  组装 Stopper Cylinder 注意 Stopper T op Plate 方向后，组装  组装 Stopper Sensor  组装 Up…

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.5 CONVEYOR

Version

Title

更换传感器

Page

3-5-29

Note

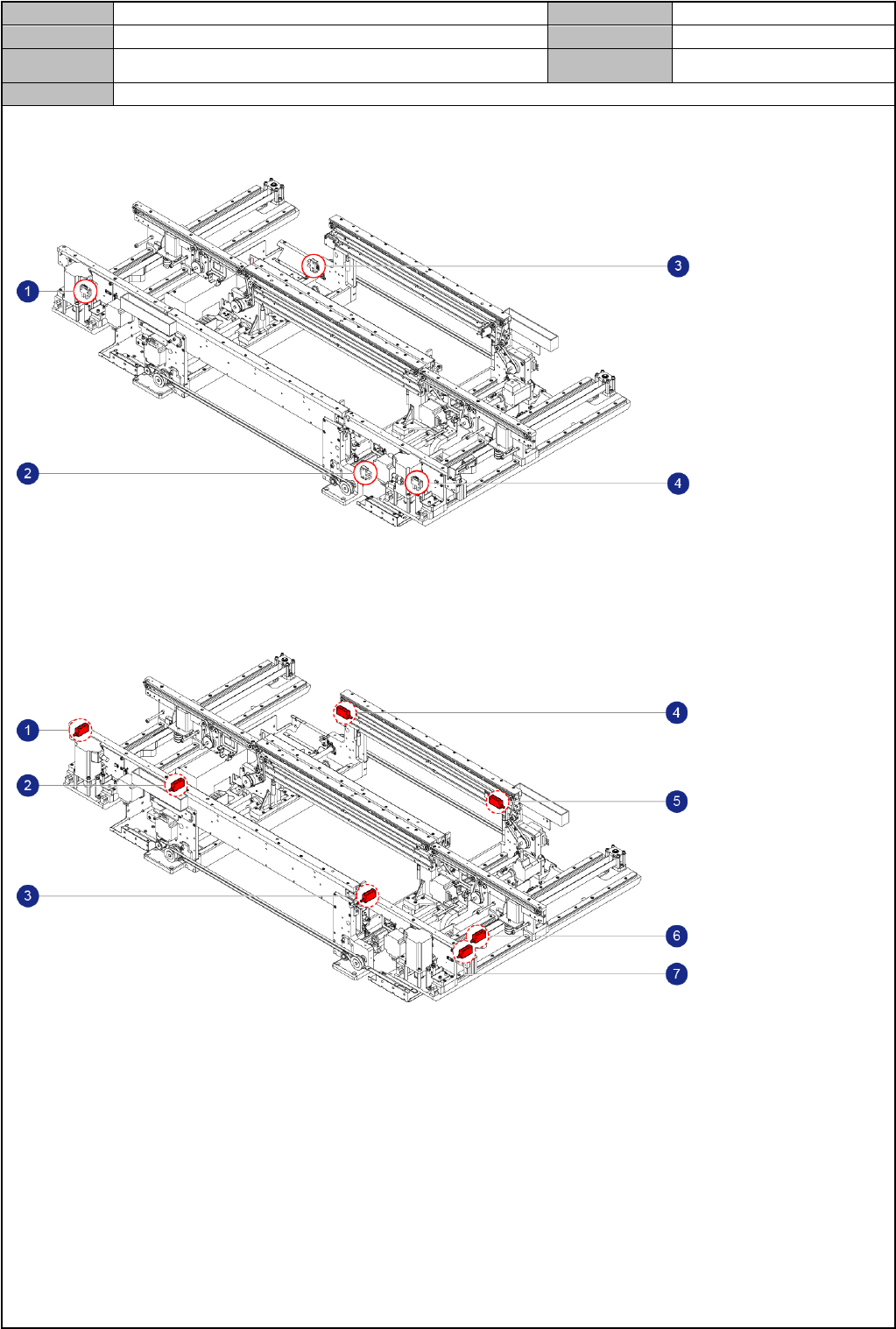

[更换传感器]

① Entry Zone Width Detecting Sensor

② Front Conveyor Work Zone Width Detecting Sensor

③ Work Zone Width Detecting Sensor

④ Exit Zone Width Detecting Sensor

① Entry Sensor

② Front Conveyor Work Sensor1

③ Front Conveyor Work Sensor2

④ Rear Conveyor Work Sensor1

⑤ Rear Conveyor Work Sensor2

⑥ Exit Sensor

⑦ PCB Out detecting Sensor

1. 拆卸连接到传感器的电缆

2. 拆卸传感器后，更换新传感器

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.5 CONVEYOR

Version

Title

更换STOPPER CYLINDER

Page

3-5-30

Note

[更换 STOPPER CYLINDER]

 组装 Stopper Cylinder

注意 Stopper Top Plate 方向后，组装

 组装 Stopper Sensor

 组装 Up Sensor 位于 Entry 侧

 表示 Up Sensor Down Sensor 的 LED 亮灯区间

 在传感器上方表示 I Marking

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.5 CONVEYOR

Version

Title

检查FIDUCIAL MARK

Page

3-5-31

Note

[检查 FIDUCIAL MARK]

 组装 Fiducial Disk Mark 向下

 涂抹 Loctite401

 组装后，用 Height Gauge 确认 Fiducial Disk 的平行度是否小于 0.05
