Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le 检查 FIDUCIAL MARK Page 3-5-31 Note [ 检查 FIDUCIAL MARK]  组装 Fiducial Disk Mark 向下  涂抹 Loctite401  组装后，用 Height Gauge 确认 Fiducial Disk 的平行…

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.5 CONVEYOR

Version

Title

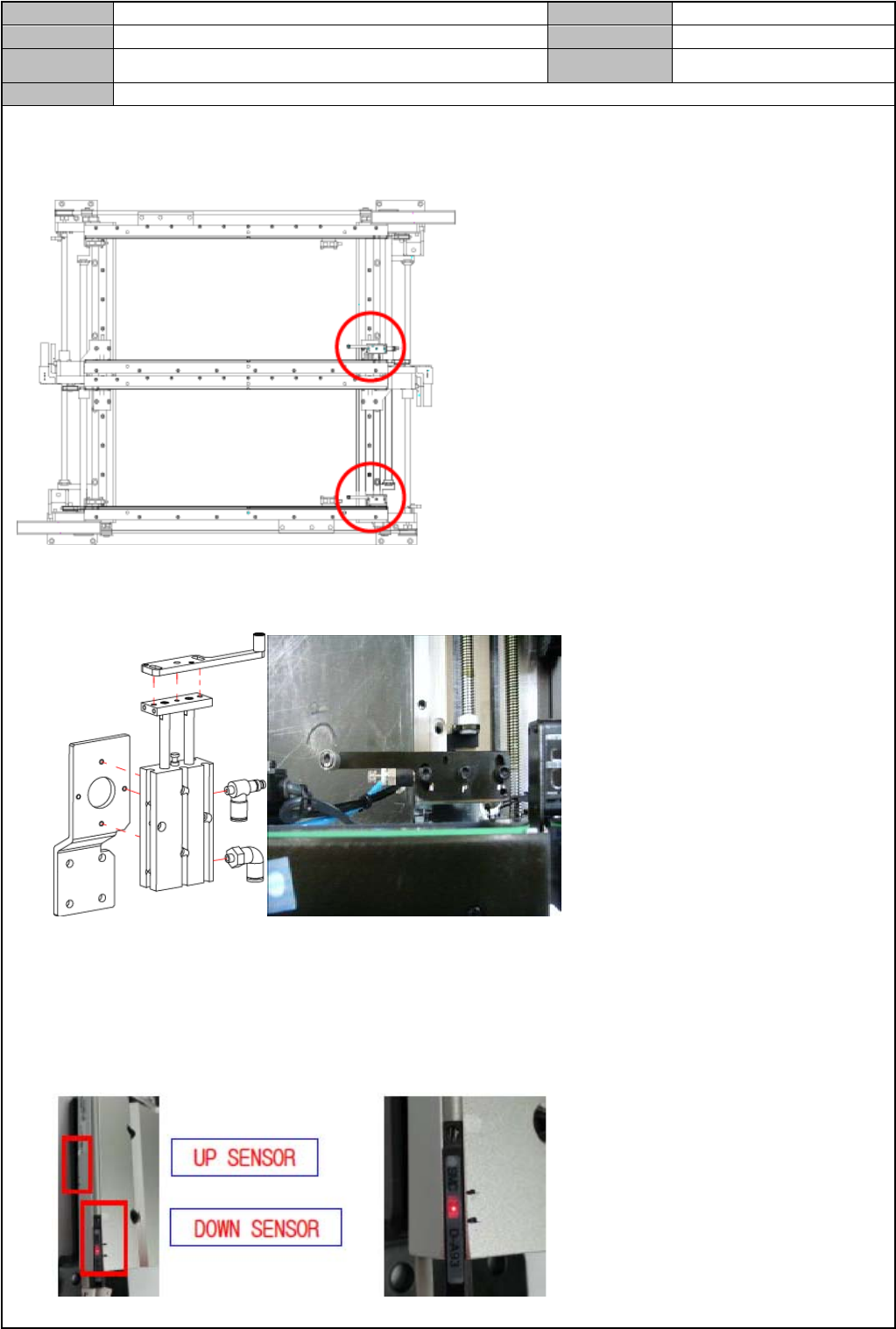

更换STOPPER CYLINDER

Page

3-5-30

Note

[更换 STOPPER CYLINDER]

 组装 Stopper Cylinder

注意 Stopper Top Plate 方向后，组装

 组装 Stopper Sensor

 组装 Up Sensor 位于 Entry 侧

 表示 Up Sensor Down Sensor 的 LED 亮灯区间

 在传感器上方表示 I Marking

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.5 CONVEYOR

Version

Title

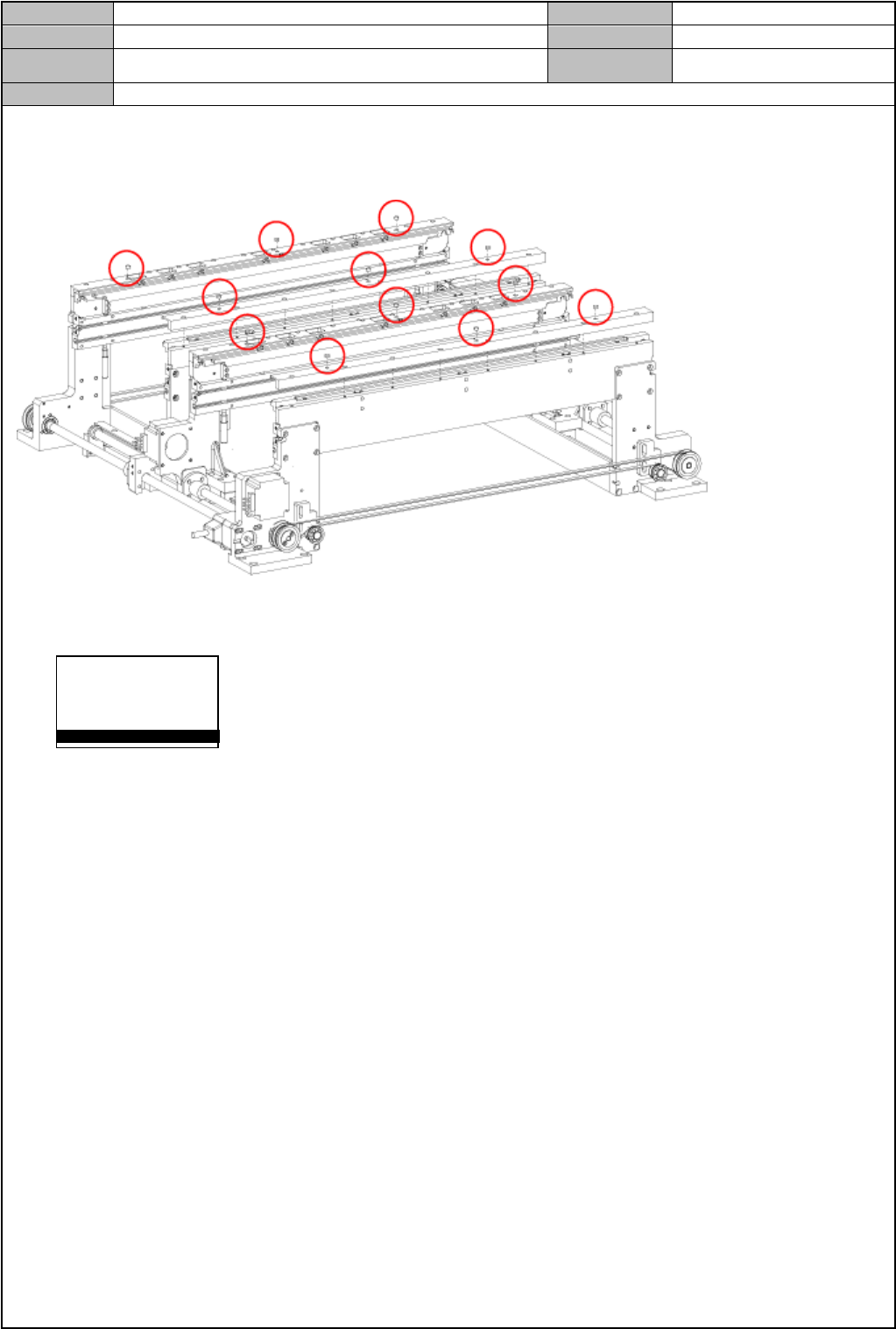

检查FIDUCIAL MARK

Page

3-5-31

Note

[检查 FIDUCIAL MARK]

 组装 Fiducial Disk Mark 向下

 涂抹 Loctite401

 组装后，用 Height Gauge 确认 Fiducial Disk 的平行度是否小于 0.05

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

3.6 COVER

Total Pages

[检查安全传感器启动(MMI)] ................................................................................. 2

[安装显示器] ......................................................................................................... 4
