Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
设定LONG CONVEYOR选项(MMI)
Page
3-5-12
Note

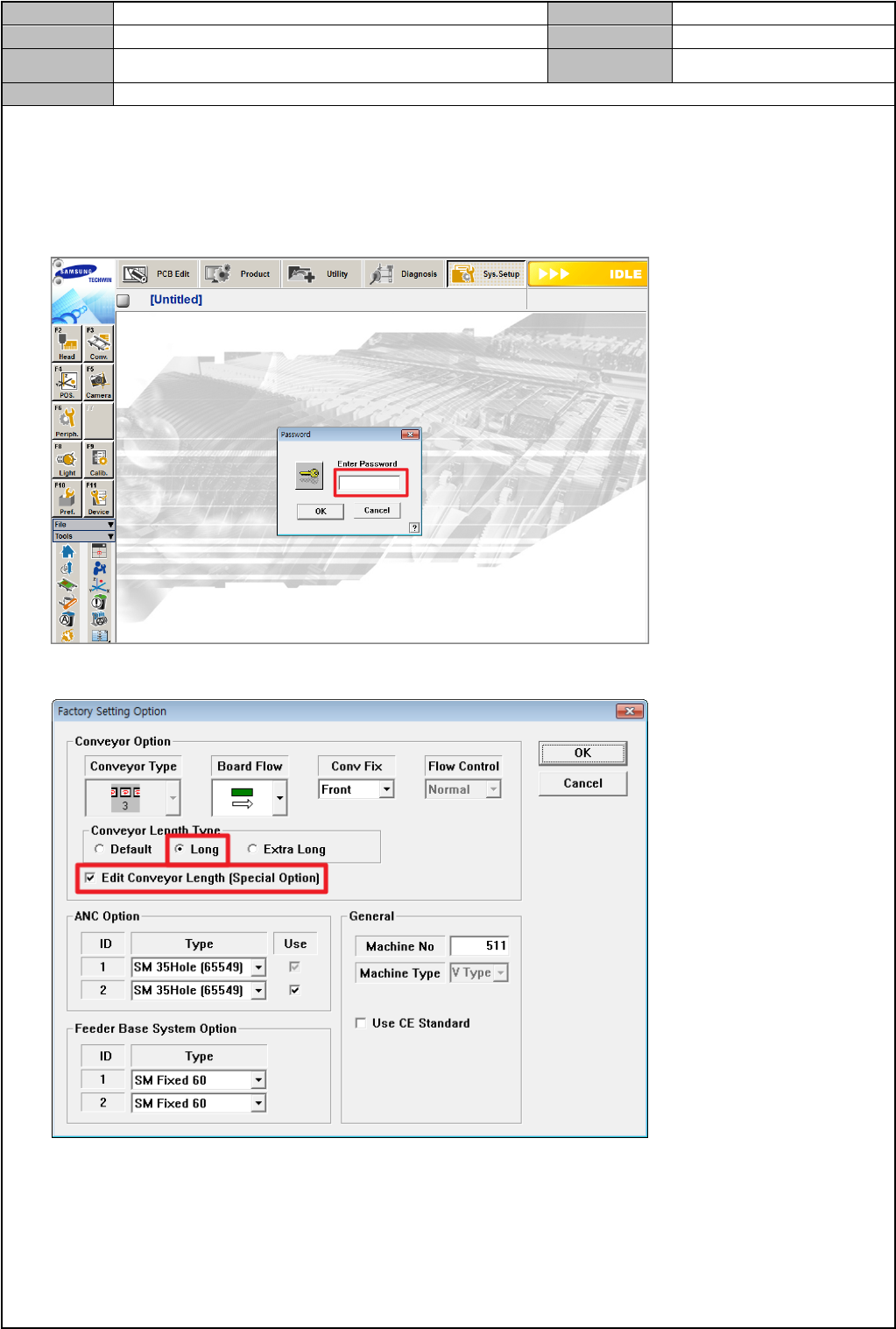

[设定 LONG CONVEYOR 选项(MMI)]
1. 在 MMI 的<Sys. Setup>菜单进入到出厂模式
ID: MARKFAC, Password: MARKFACTORY
2. <Factory Setting Option>上设定传输带选项
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
设定LONG CONVEYOR选项(MMI)
Page
3-5-13
Note

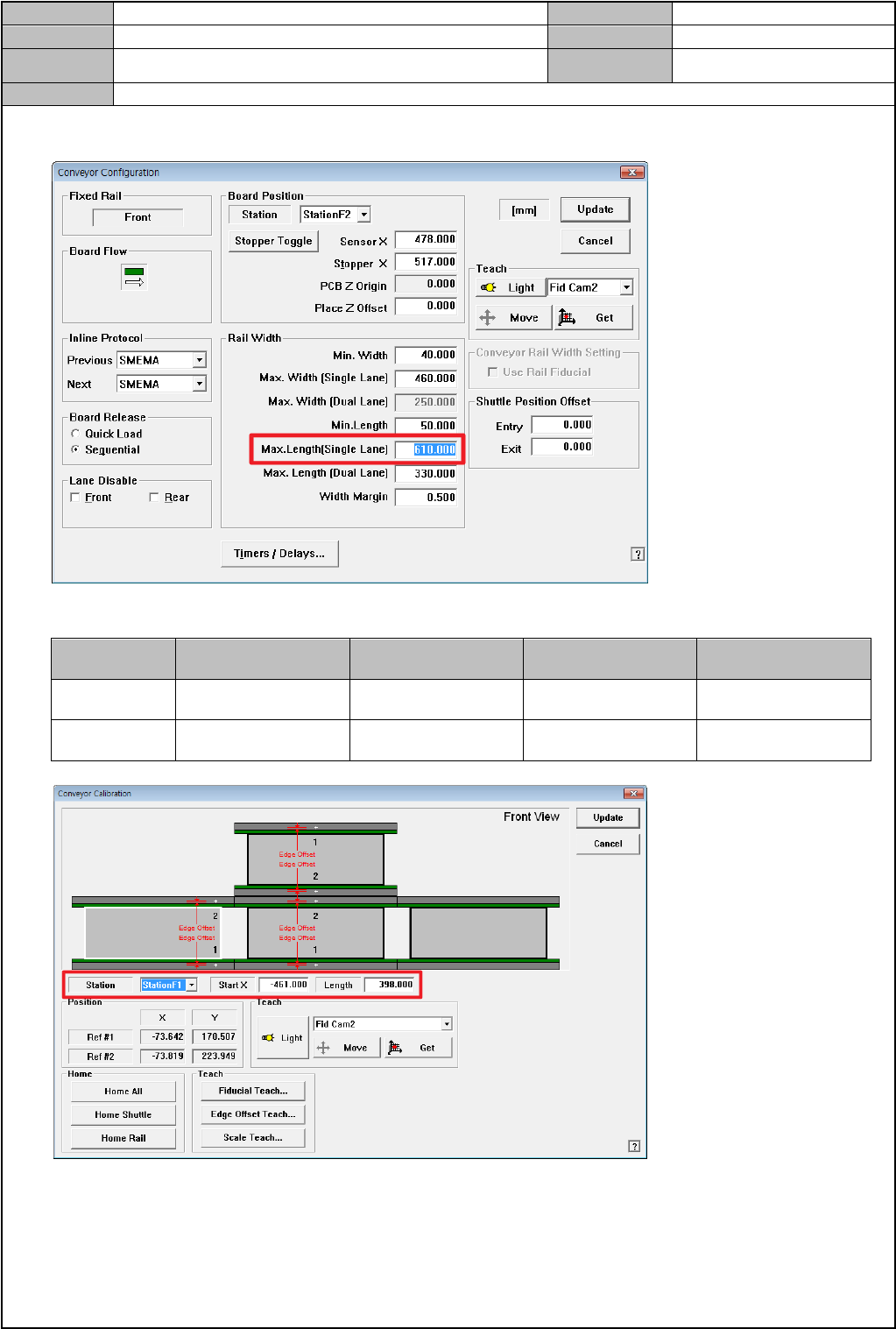

3. 在<Sys.Setup → Conveyor Option>菜单，将 Max. Length(Single Lane)设定为"610"
4. <Sys.Setup - Calib.>菜单上，在 Station 输入 Start X、Length 值
分类
Station F1 Station F2 Station F3 Station R1
Start X -737 -60 687 -60
Length 637 627 677 627
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
检查SHUTTLE部连接状态
Page
3-5-14
Note
[检查 SHUTTLE 部连接状态]
Shuttle 前/后左右面 Connector 连接标签- Standard (左 → 右)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
宽度调节电机上方 ↔ IN-WD-EN EX-WD-EN ↔ 宽度调节电机上方
宽度调节电机下方 ↔ IN-WD-PW EX-WD-PW ↔ 宽度调节电机下方
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
相机传感器 ↔ IN-WD-H
EX-F-BD-OUT ↔ EX-F-BD-OUT
无 ↔ EX-F-BD-OUT EX-WF-H ↔ 相机传感器
Shuttle 前/后左右面 Connector 连接标签- Standard (左 → 右)
后面左侧(穿梭 ↔ 电缆拖链) 后面右侧(电缆拖链 ↔ 穿梭)
   ↔ IN-WD-EN EX-WD-EN ↔ 宽度调节电机上方
宽度调节电机下方 ↔ IN-WD-PW EX-WD-PW ↔ 宽度调节电机下方
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
前面左侧(穿梭 ↔ 电缆拖链) 前面右侧(电缆拖链 ↔ 穿梭)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
光传感器 ↔ IN-WD-H EX-WF-H ↔ 光传感器
EX-F-BD-OUT ↔ EX-F-BD-OUT
EX-F-BD-OUT ↔ 无
