EUKYX

1-56199-2100

4.2.16 M2M

When the [M2M] button is pressed on the "Opr. Mode" tab sheet, the following window appears.

F2A42E

AOI feedback function

Select "Enable" or "Disable" for the function to display the NG information on the machine when

LISA received the NG information from the AOI

AOI feedback function sends the NG information from AOI to LISA.

LISA sends it to the machine.

Disable

Select this when AOI feedback function is not used.

Enable

Select this when AOI feedback function is used.

Note

4.2 "Opr.Mode" Tab Sheet

EUKYX

1-57199-2100

4.3 "Test Mode" Tab Sheet

When the [Test Mode] tab is pressed on the "OPERATION" window, the following tab sheet

appears.

[1]

[2]

[1]

[2]

Graphic

Development

F2A43

The number of test run patterns to be saved is up to three.

[1] TEST PATTERN

The pattern where the test operation mode has been designated, is selected in this data box.

[2] [Pattern #1], [Pattern #2], and [Pattern #3] Buttons

Select one of the buttons to specify the desired pattern for designation of the test mode.

Wrong selections (test run in wrong modes) will cause various deﬁciencies such as component

picks by vacuum nozzles, scattering of components, or collision with the chute, etc.

Notice

EUKYX

1-58199-2100

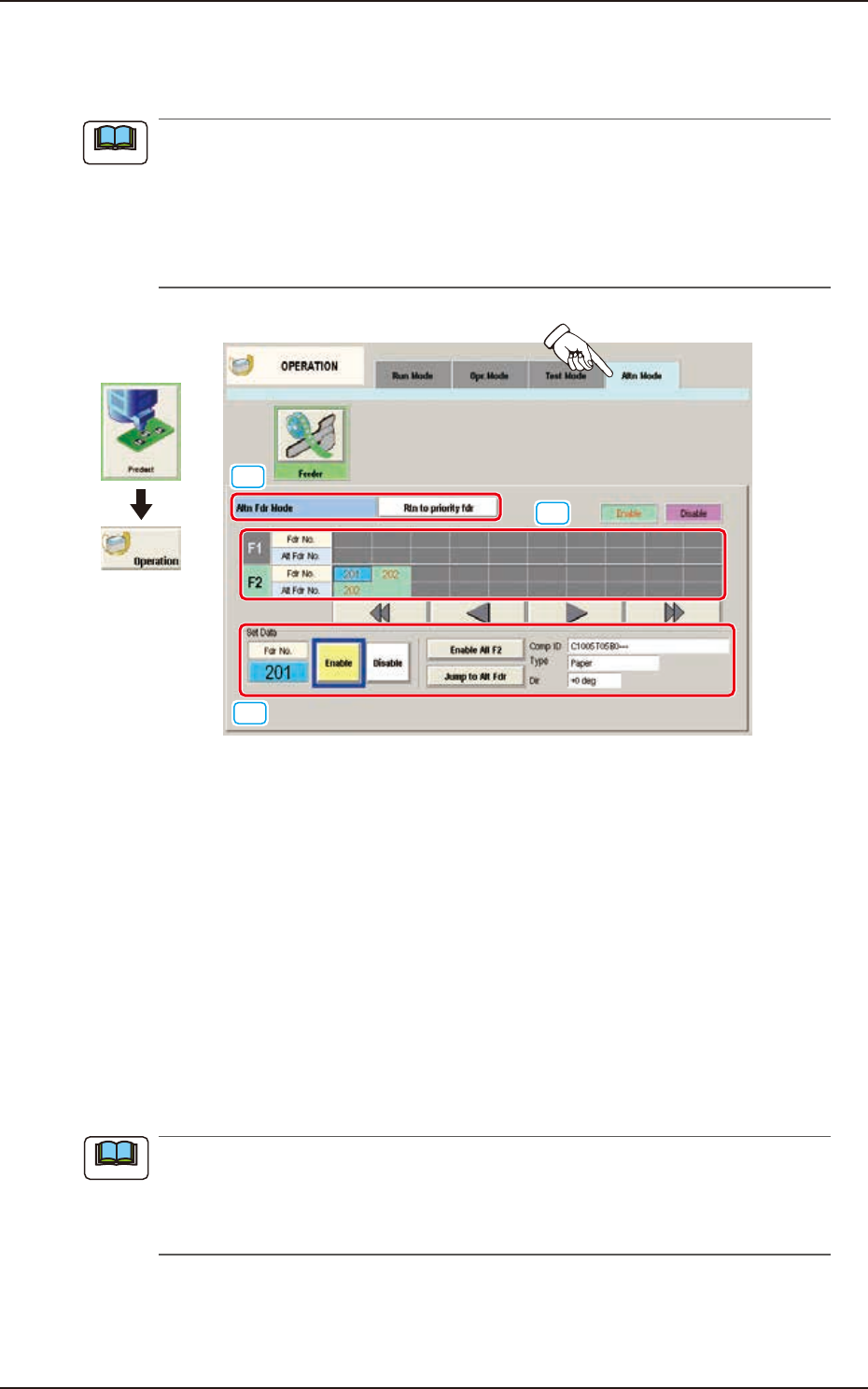

4.4 "Altn Mode" Tab Sheet

When the [Altn Mode] button is pressed, the "Altn Mode" tab sheet appears.

(a) It is required that the feeder "Alternate" function is setup in the pattern program, in

advance.

(b) The parameters speciﬁed here become valid prior to the other alternate-related ones that

are designated in the pattern program.

Even when "Enable" is set in the pattern program, this alternate feeder mode can be

used to temporarily set "Disable" in relation to preparation for the feeders.

[1]

[2]

[3]

Graphic

Development

F2A44

[1] Altn Fdr Mode

[Disable] Button

When pressed, this button invalidates the alternate feeder mode.

In this case, the contents of the window are changed.

[Rtn to priority fdr] Button

When selected, the "Feeder Alternate" function is enabled.

The components of the specified feeder No. are alternated.

[Keep current fdr] Button

When selected, the “Feeder Alternate” function is enabled.

After the components on the specified feeder No., are used up, when there is any other

feeder with the same components, such feeder is used until the components on the feeder

are used up.

(a) The feeders on the opposite block are to be used in this “Feeder Alternate” operation.

(b) The use of the high-speed head or multi-functional head is available.

(d) Same Component: Component with the same Component ID

Note
