(9-1) Press the [Modify] button.

(The following "Data Edit" window appears. The data parameters can be corrected for

each corner data or edge data item.)

F2F95

The indicated data may contain some fractional parts in the values. At the end of the teaching

operation, these fractional parts are truncated.

(9-2) When the component size is not the same as the outward length, correct the outward

length on the outward length graphic image to match.

(9-3) After the modification is completed, press the [Fixed] button.

(10) When the teaching is completed, press the [Complete] button.

F2F96

Note

7.3 "COMP RCG" Test Window

EUKYX

6-73199-2100

7.3.7.3 BGA/CSP Components

The descriptions in this manual are based on a component whose electrode type is "Simple

(electrodes arranged in equal pitches)".

(1) Select [Area Array] - [Simple] - [type of electrodes] on “Create teach wizard” window.

F2F97

In the case of BGA/CSP component where the following electrodes are arranged with uneven

pitches, select [Complex].

F2F99

When “Simple” is selected as a form of electrodes, it is impossible to perform teaching on the

BGA/CSP components used as electrodes and arranged in unequal pitches.

Note

Procedure

Note

Notice

7.3 "COMP RCG" Test Window

EUKYX

6-74199-2100

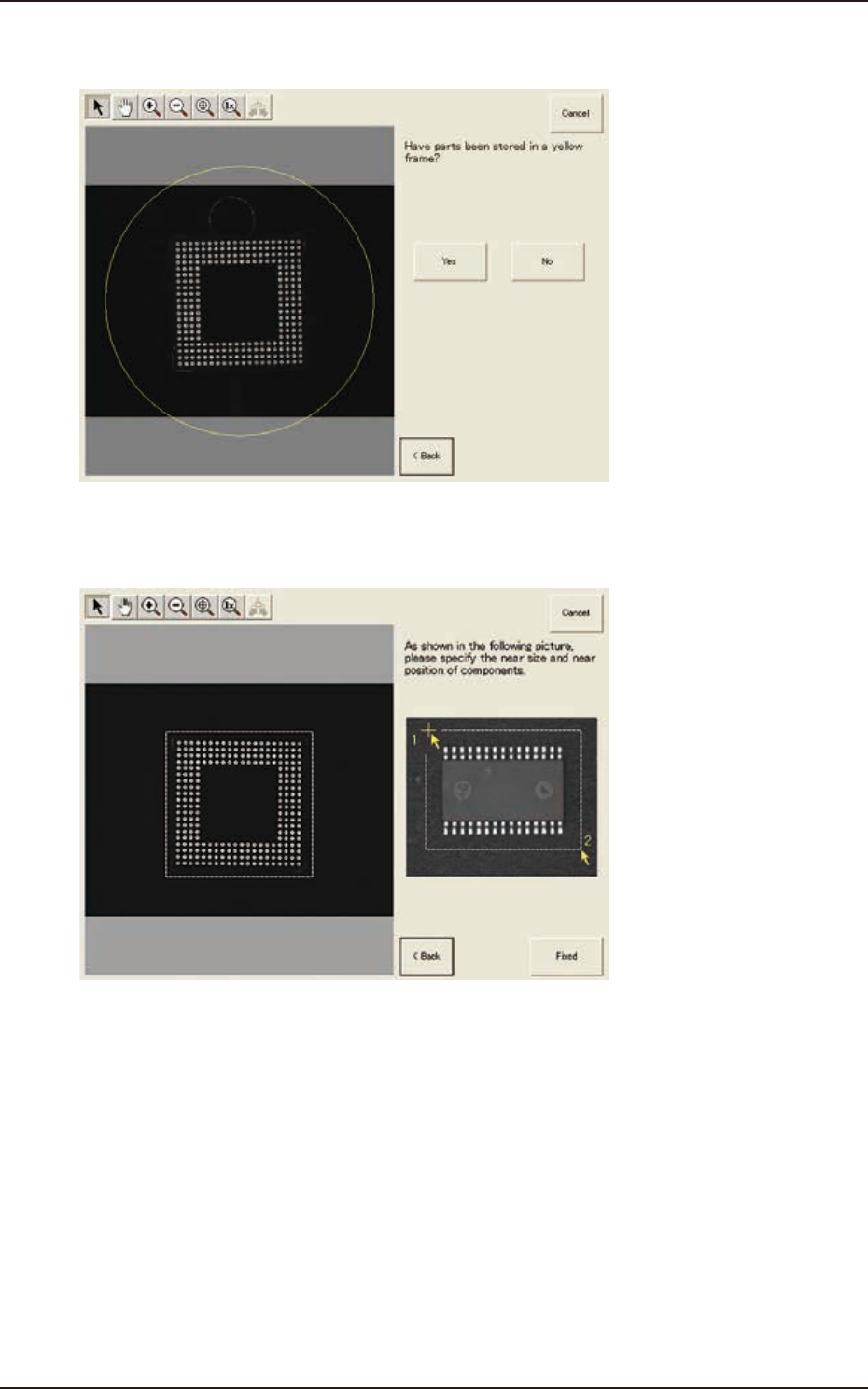

(2) Confirm that the component is in the yellow circle (frame).

When it is in the circle, press the [Yes] button. Otherwise, press the [No] button.

F2F101

(3) After clicking the upper left of the component image, click the lower right to place the

whole component image within a frame.

F2F102

(4) Make sure that the whole image is within the frame and press the [Fixed] button.

7.3 "COMP RCG" Test Window
