I･pul se F1 Series F1-44 (E type) P 6 No. Code No. Parts Name Q'ty Parts No. LG4-M8A60-011 BACK PLATE ASSY 1 AS3-A24-8150-D 1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1 2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1 3 …

100%1 / 1226
8E-11
I･pulse  F1 Series
F1-44 (E type)
P 6
No. Code No. Parts Name Q'ty Parts No.

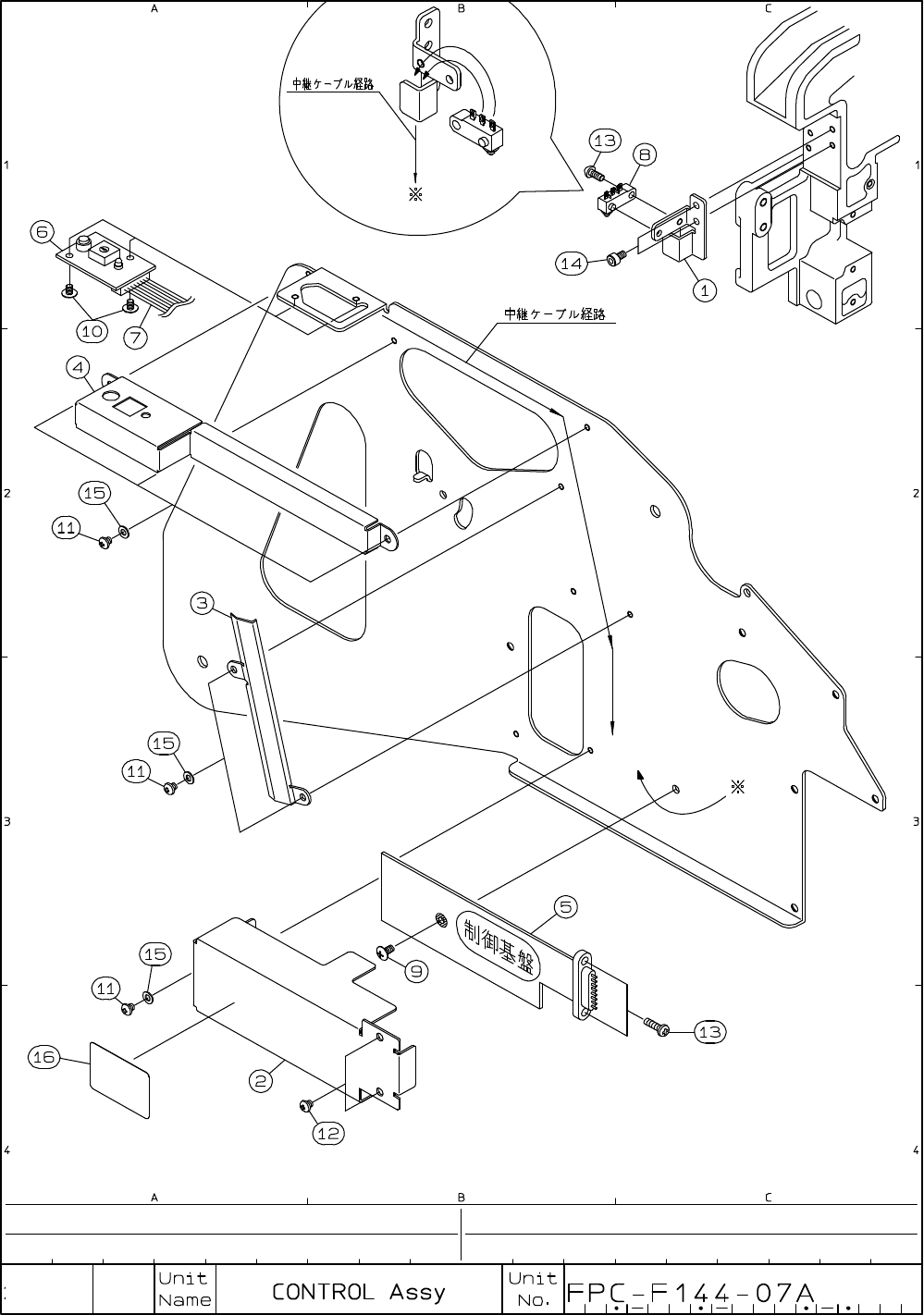

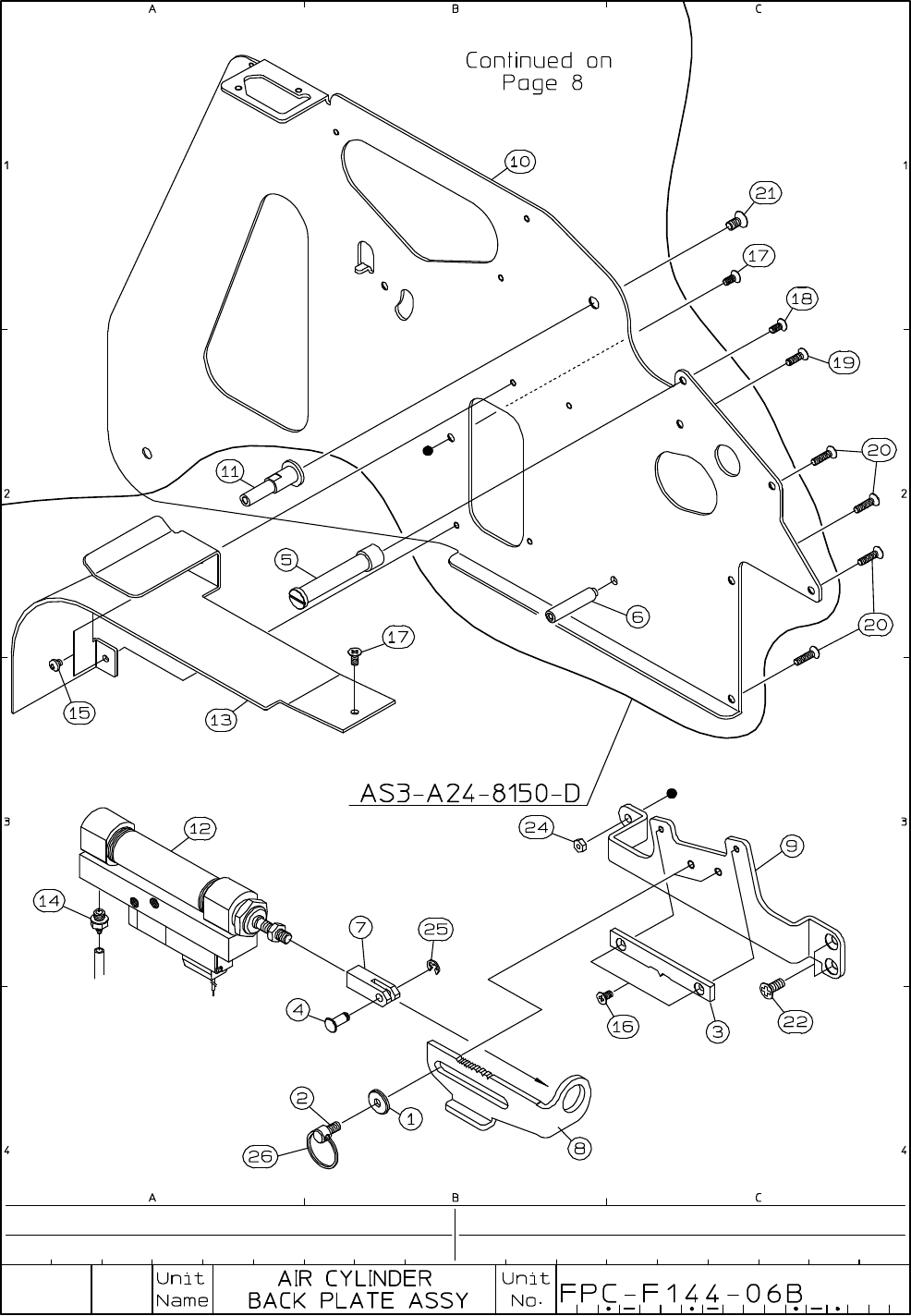

LG4-M8A60-011 BACK PLATE ASSY 1 AS3-A24-8150-D
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
5 LG4-M8A63-010 ROLLER SHAFT 1 FTA-A44-8132-C
6 LG4-M8A64-000 SHAFT 1 FTA-A44-8140
7 LG4-M6A71-000 ROD CONNECTER 1 FTA-A24-8142
8 LG4-M6A73-001 ADJUST PLATE 1 FTA-A24-8148-C
9 LG4-M6A74-000 CYLINDER BRACKET 1 FTA-A24-8149-B
10 LG4-M6A61-011 BACK PLATE 1 FTA-A24-8150-D
11 LG4-M7A62-010 REEL SHAFT 1 FTA-A32-8151-B
12 LG4-M6AB1-000 VAL PACK CYLINDER 1 FTA-A24-8157
13 LG4-M8A6A-010 GUIDE PLATE 1 FTA-A44-8177-B
14 K87-M56C1-000 BARB CONNECTOR 1 BF4BU
15 K87-M111N-000 SCREW,PAN HEAD+ 2 3MC-3-P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17 LG4-M4ADE-000 SCREW,FLAT HEAD+ 1 2 3MK-7-P
18 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
19 KW1-M45BG-000 SCREW,FLAT HEAD+ 1 3MK-10-P
20 K87-M11B4-100 SCREW,FLAT HEAD+ 4 3MK-12-P
21 LG4-M6ADJ-000 SCREW,FLAT HEAD LEFT 1 4MK-8-P-L
22 LG4-M6ADE-000 SCREW,FLAT HEAD+ 2 4MK-10-P
23 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
24 K87-M21BN-000 SCREW NUT 1 3MH-P
25 K87-M11D7-000 CIRCLIP E 1 E.32
26 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
27
28
29
30
