F1FeederPartsList.pdf - 第362页
4D-15
I･pulse F1 Series
F1-12 (D type)
P 7
No. Code No. Parts Name Q'ty Parts No.
※1 1 LG4-M4AA1-001
CONTROL BOARD 1
FTA-A12-8151-FCN1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR 3
FTA-A08-8152-B
3
LG4-M1A6S-001 CONTROL BOARD COVER
1
FTA-A08-8153-B
4 K87-M111W-000 SCREW,PAN HEAD+ 3
3MC-5-P
5
K87-M111N-000
SCREW,PAN HEAD+ 3
3MC-3-P
6
LG4-M4AC1-000
SERIAL NO. STICKER 1
FTA-A12-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-12-2594D～
4D-15
I･pulse F1 Series
F1-12(D type)
P 8
No. Code No. Parts Name Q'ty Parts No.

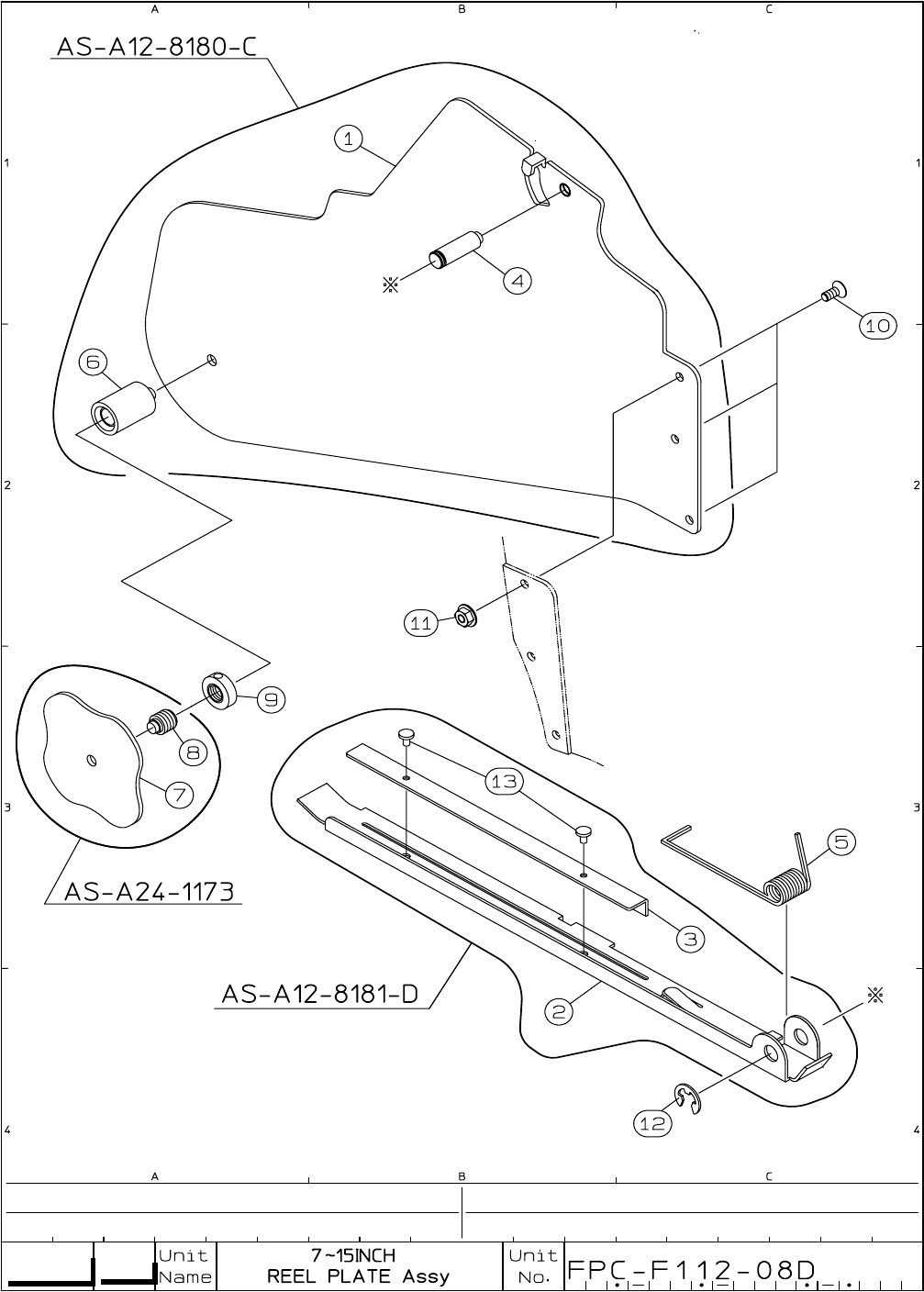

LG4-M4A90-010 REEL PLATE ASSY
1
AS-A12-8180-C
LG4-M4A9D-000
TENSION LEVER ASSY 1
AS-A12-8181-D
KW1-M456N-000 REEL COVER ASSY
1
AS-A24-1173
1
LG4-M4A91-010 REEL PLATE
1
FTA-A12-8180-C
2
LG4-M4A9A-001 TENSION LEVER
1
FTA-A12-8181-D
3
LG4-M4A9C-000 GUIDE ARM
1 FTA-A12-8181-D1
4
LG4-M4A92-000 TENSION AXIS
1
FTA-A12-8182
5
LG4-M4A9B-000 COIL SPRING
1 FTA-A12-8183-B
6
LG4-M4A93-000 REEL AXIS
1 FTA-A12-8185-B
7 KW1-M456P-000
COVER
1 FTA-A24-1173
8 KW1-M456R-000
SCREW
1 FTA-A24-1173-1B
9 KW1-M456S-000
SCREW SPACER
1
FTA-A24-1187
10
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
11 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
12
LG4-M4AD4-000 CIRCLIP E
1 E-50
13
LG4-M4AD5-000 FLAT RIVET
2
φ2X2.5
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4D-16
