I･pulse F1 Series
F1-823 (F type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M3A40-020 T.G. PLATE ASSY 1 AS1-A08-8119-63C
1
LG4-M3A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-63C
2
LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
3
LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5
LG4-M2A43-500 SHUTTER GUARD PLATE 1 FTA-E08-8523-05
6
LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8
LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
9
LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
10 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
11
LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
12
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13
LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

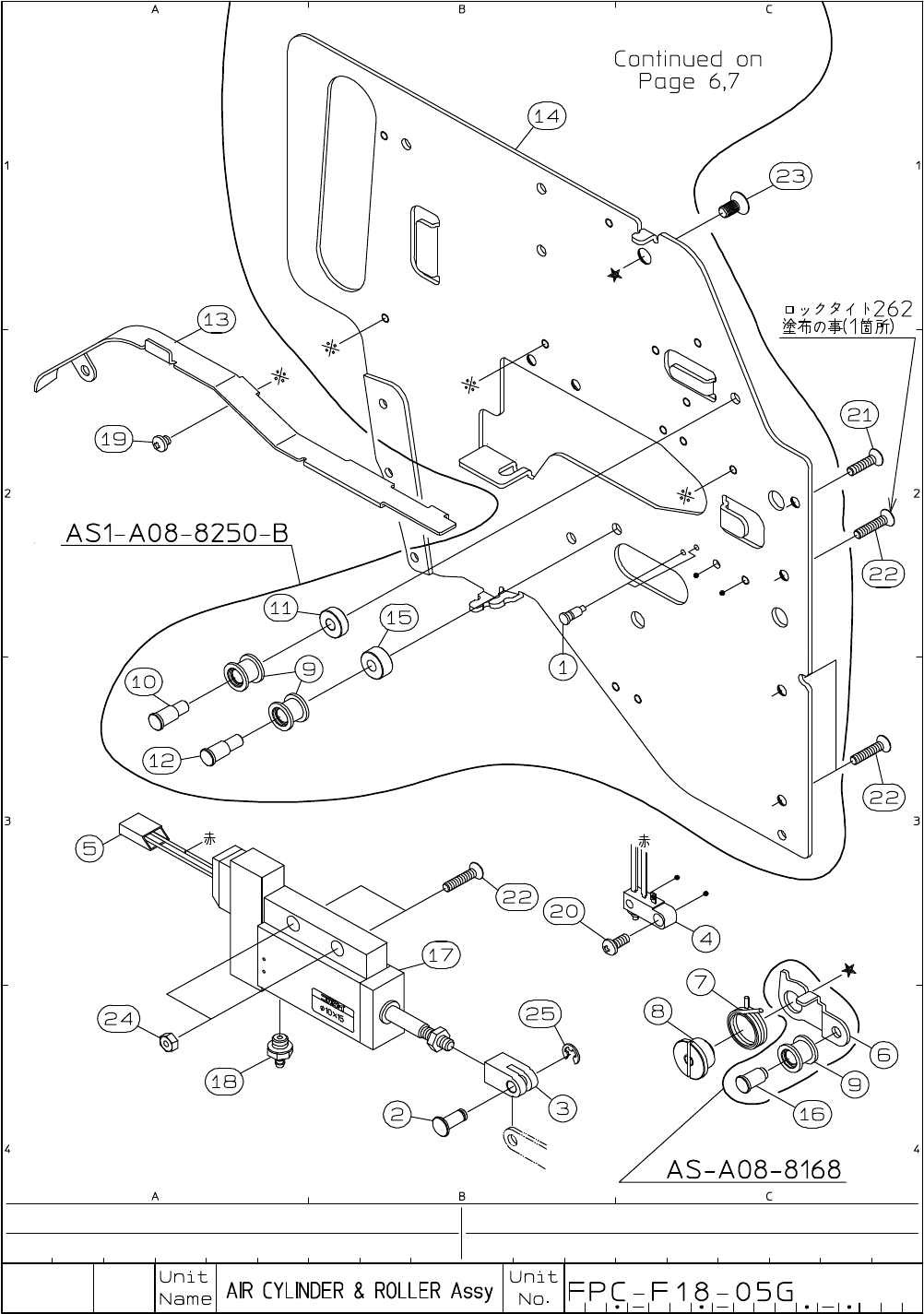

I･pulse F1 Series
F1-823 （F type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-130 BACK PLATE ASSY 1 AS -A08-8250-B
LG4-M1A60-140 BACK PLATE ASSY 1 AS1-A08-8250-B
LG4-M1A68-000 TENSION LEVER ASSY 1 AS -A08-8168
1 K87-M116A-100 SPRING HOOK PIN 2 CTF-M08- 166-B
2 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
3 LG4-M1A71-000 ROD CONNECT 1 FTA-A08-8147
4 LG4-M1AA3-000 MICRO SWITCH ASSY 1 FTA-A08-8151-6
5 LG4-M1AA4-000 VALVE HARNESS ASSY 1 FTA-A08-8151-7
6 LG4-M1A6K-000 TENSION LEVER 1 FTA-A08-8168
7 LG4-M1A6L-000 COIL SPRING 1 FTA-A08-8168-SP
8 LG4-M1A6E-000 METAL 1 FTA-A08-8169
9 LG4-M1A6F-000 ROLLER 3 FTA-A08-8172
10 LG4-M1A6A-000 ROLLER AXIS T 1 FTA-A08-8173
11 LG4-M1A6C-000 LEAF T 1 FTA-A08-8173-1
12 LG4-M1A6B-010 ROLLER AXIS U 1 FTA-A08-8174-B
13 LG4-M1A6N-010 MIDDLE GUIDE PLATE C 1 FTA-A08-8176-D
14 LG4-M1A61-110 BACK PLATE 1 FTA-A08-8250-B
15 LG4-M5A6D-000 LEAF U 1 FTA-A16-8174-1
16 LG4-M1A69-500 ROLLER AXIS U 1 FTA-E08-8582
17 LG4-M1AB1-010 VAL PACK CYLINDER 1 BDA10×15-380W
18 LG4-M1AB3-000 BARB CONNECTOR 1 BF3BU-136W
19 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
20 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
21 K87-M11B4-100 SCREW,FLAT HEAD+ 1 3MK-12-P
22 LG4-M1ADD-000 SCREW,FLAT HEAD+ 5 3MK-14-P
23 K87-M23B6-000 SCREW,FLAT HEAD+ 1 4MK-8-P
24 K87-M21BN-000 SCREW,NUT 2 3MH-P
25 K87-M11D7-000 CIRCLIP E 1 E.32
26
27
28
29
30
※1…F1-823-002456F～
※1
