I･pulse F1 Series F1-82-1005(C type) No. Code No. Parts Name Q'ty Parts No. LG4-M1A81-000 D．ROLLER ALL ASSY 1 AS3-A08-1170-D LG4-M1A82-000 INDEKING LEVER ASSY 1 AS -A08-8164 KW1-M119F-000 DRIVE ROLLER ASSY 1 AS -A08…
2-11
I･pulse F1 Series
F1-82-1005(C type)
No. Code No. Parts Name Q'ty Parts No.

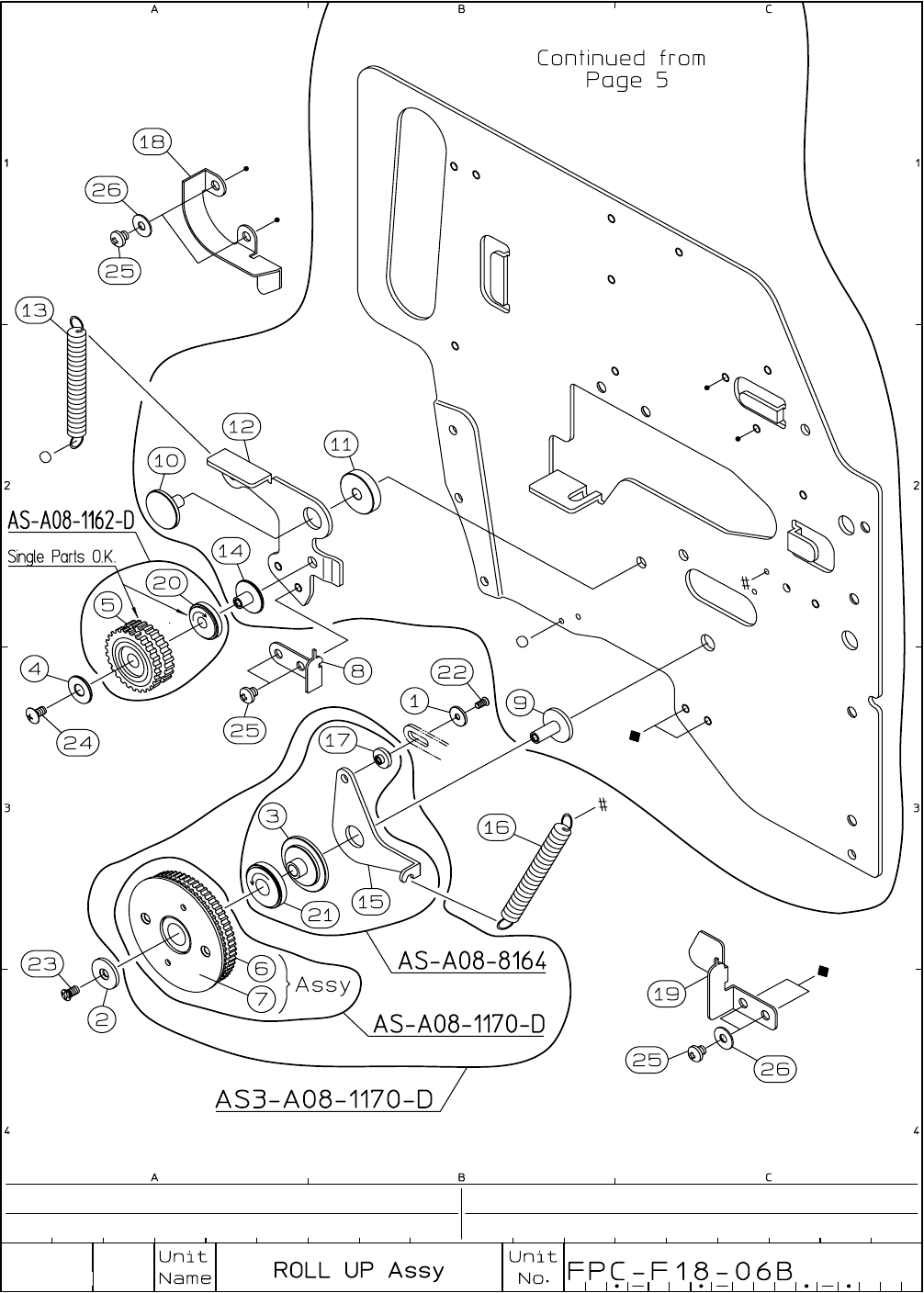

LG4-M1A81-000
D．ROLLER ALL ASSY 1 AS3-A08-1170-D
LG4-M1A82-000 INDEKING LEVER ASSY
1 AS -A08-8164
KW1-M119F-000
DRIVE ROLLER ASSY
1 AS -A08-1170-D
KW1-M119L-000
IDLER ROLLER ASSY
1 AS -A08-1162-D
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3 KW1-M119D-000
LEVER METAL
1 FTA-A08-1158-C
4 KW1-M119R-000
COLLAR
1 FTA-A08-1161
5 KW1-M119M-000
IDLE ROLLER
1 FTA-A08-1162-D
6 KW1-M119G-000
DRIVE ROLLER
1 FTA-A08-1170-D
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M11A3-001
LOWER GUIDE PLATE , L
1 FTA-A08-1179-C
9
LG4-M1A62-000 METAL SHAFT
1 FTA-A08-8155
10
LG4-M1A63-000 LEVER AXIS PIN
1 FTA-A08-8159
11
LG4-M1A64-000 COLLAR
1 FTA-A08-8159-1
12
LG4-M1A65-010 TENSION LEVER
1 FTA-A08-8160-B
13
LG4-M4A8B-000
TENSION LEVER RETURN SPRING
1 FTA-A12-8160-700
14
LG4-M1A66-000 ROLLER AXIS
1 FTA-A08-8163
15
LG4-M1A83-000 INDEKING LEVER
1 FTA-A08-8164
16
LG4-M1A8A-000
INDEKING LEVER RETURN SPRING
1 FTA-A08-8164-440
17
LG4-M1A84-000 ARM STUD
1 FTA-A08-8166
18
LG4-M1A6M-000 MIDDLE GUIDE PLATE T
1 FTA-A08-8177-C
19
LG4-M1A6P-010 LOWER GUIDE PLATE , R
1 FTA-A08-8178-B
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M119E-000 ONE･WAY CLUTCH 1 OWC6-16-3.5-L
22 K87-M11BF-000
SCREW , FLAT HEAD
1 P2MK-4-IB
23 K87-M11BB-000
SCREW , FLAT HEAD
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW , TRUSS HEAD ＋ 1 T2.6M-5-P
25
K87-M111N-000
SCREW , PAN HEAD ＋ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3MV (3V-0.5-8-P)
27
28
29
30

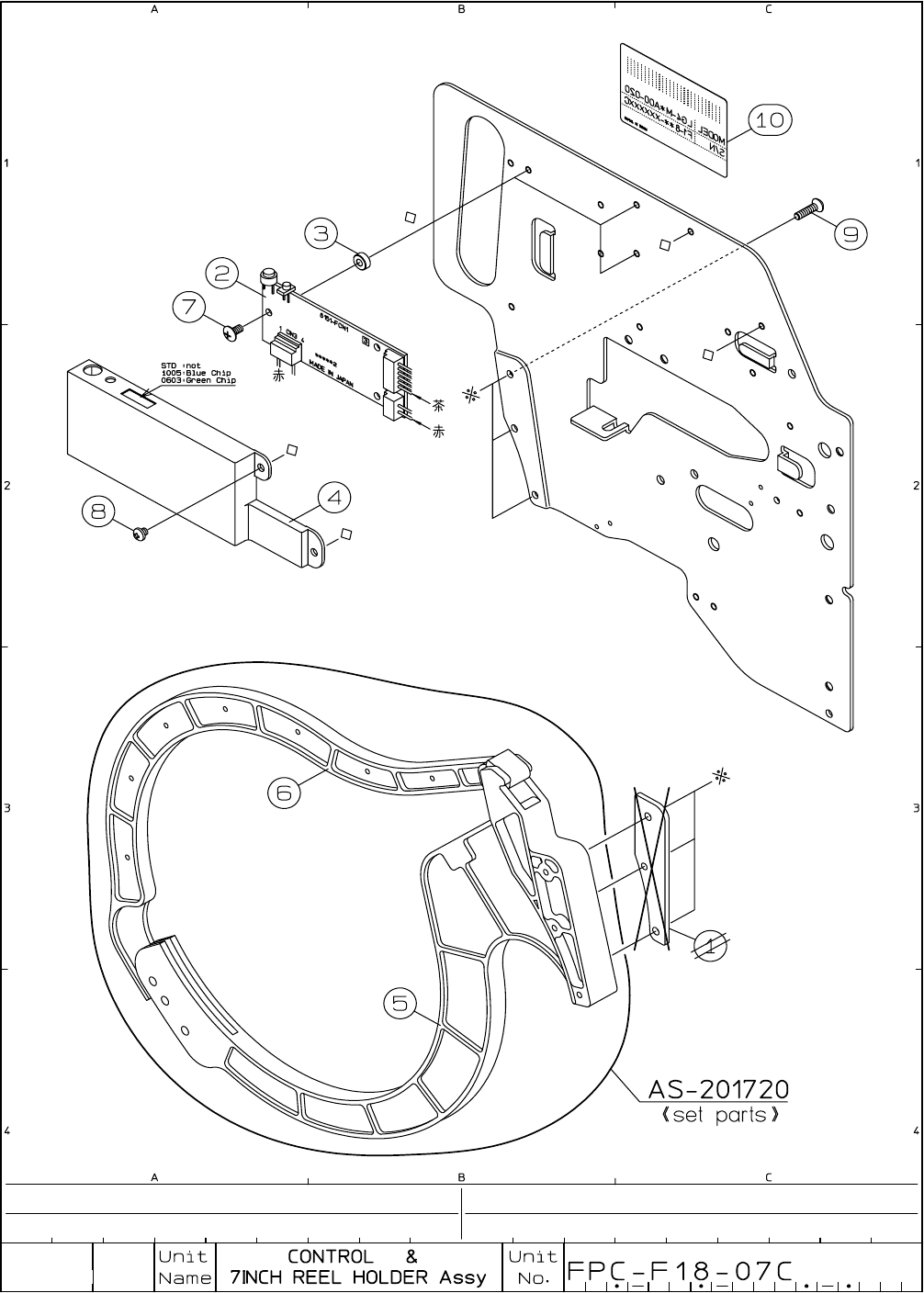

2-12
2-13
