I･pulse F1 Series
F1-16 (H type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A40-010 T.G. PLATE ASSY 1 AS-A16-8119-D
LG4-M5A40-011 T.G. PLATE ASSY 1 AS-A16-8119-E
LG4-M5A41-010 TAPE GUIDE PLATE 1 FTA-A16-8119-D
LG4-M5A41-011 TAPE GUIDE PLATE 1 FTA-A16-8119-E
2 LG4-M5A42-010 SHUTTER PLATE 1 FTA-A16-8120-D
3 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-000 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M5A43-010 SHUTTER GUARD PLATE 1 FTA-A16-8123-C
6 LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001 T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-16-005785H～
1
※1
※1

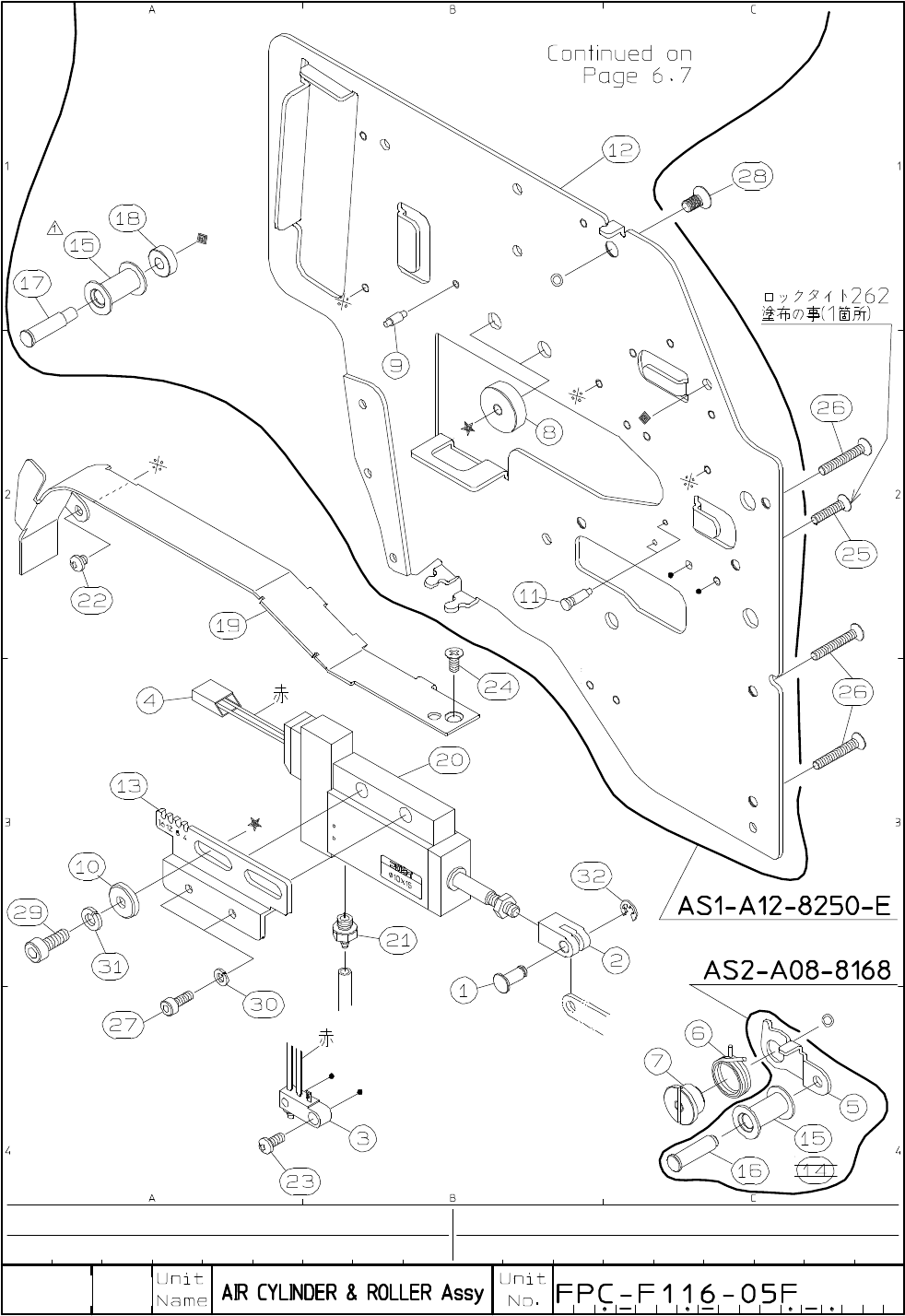

I･pulse F1 Series
F１-16 （H type)
P 5
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M5A60-130 BACK PLATE ASSY 1 AS1-A12-8250-E
※1 LG4-M5A68-000 TENSION LEVER ASSY 1 AS2-A08-8168
1 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
2 LG4-M1A71-000 ROD CONNECT 1 FTA-A08-8147
3 LG4-M1AA3-000 MICRO SWITCH ASSY 1 FTA-A08-8151-6
4 LG4-M1AA4-000 VALVE HARNESS ASSY 1 FTA-A08-8151-7
※1 5 LG4-M1A6K-000 TENSION LEVER 1 FTA-A08-8168
※1 6 LG4-M1A6L-000 COIL SPRING 1 FTA-A08-8168-SP
※1 7 LG4-M1A6E-000 METAL 1 FTA-A08-8169
8 LG4-M4A6E-010 ADJUST PLATE STUD 2 FTA-A12-8151-1B
9 LG4-M4A6F-000 SET PIN 1 FTA-A12-8152
10 LG4-M4A74-000 PLANE WASHER 2 FTA-A12-8154-B
11 LG4-M4A6J-000 SPRING HOOK PIN 2 FTA-A12-8156
※1 12 LG4-M4A61-130 BACK PLATE 1 FTA-A12-8250-E
13 LG4-M5A73-001 ADJUST PLATE 1 FTA-A16-8151-D
※1 14 LG4-M5A6G-010 TAPER ROLLER 1 FTA-A16-8172-B
SL96M5A6H-000
LG4-M5A6H-010
※1 16 LG4-M5A69-000 ROLLER AXIS 1 FTA-A16-8172-3
17 LG4-M5A6A-000 ROLLER AXIS T 1 FTA-A16-8173-B
18 LG4-M5A6C-000 LEAF T 1 FTA-A16-8173-1
※1 19 LG4-M5A6N-010 MIDDLE GUIDE PLATE C 1 FTA-A16-8176-D
※1 20 LG4-M1AB1-010 VAL PACK CYLINDER 1 BDA10×15-380W
21 LG4-M1AB3-000 BARB CONNECTOR 1 BF3BU-136W
22 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
23 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
24 LG4-M4ADE-000 SCREW,FLAT HEAD+ 1 3MK-7-P
※1 25 LG4-M1ADD-000 SCREW,FLAT HEAD+ 1 3MK-14-P
26 LG4-M5ADD-000 SCREW,FLAT HEAD+ 3 3MK-20-P
27 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
※1 28 K87-M23B6-000 SCREW,FLAT HEAD+ 1 4MK-8-P
29 K87-M23BB-000 BOLT,HEX SOCKET HEAD 2 4MX-10-P
30 K87-M21BM-000 SPRING LOCK WASHER 2 3MU-P
31 LG4-M4AD3-000 SPRING LOCK WASHER 2 4MU-P
32 K87-M11D7-000 CIRCLIP E 1 E.32
33
※1…F1-16-006015H～
FTA-A16-8172-1Z※1 15 ROLLER 1 2
