5-9
I･pulse F1 Series
F1-16(C type)
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A40 -000
TAPE GUIDE PLATE ASSY 1 AS-A16-8119-B
1
LG4-M5A41-000
TAPE GUIDE PLATE 1
FTA-A16-8119-B
2
LG4-M5A42-000
SHUTTER PLATE 1
FTA-A16-8120-C
3
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
4
LG4-M1A44-000 SHUTTER PUSH SPRING
1
FTA-A08-8122-B
5
LG4-M5A43-000 SHUTTER GUARD PLATE
1
FTA-A16-8123-B
6
LG4-M1A4L-000 T.G. GUIDE SCREW
1
FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
9
LG4-M1A48-000 TAPE GUIDE PUSH SPRIN
G
1
FTA-A08-8127-500
10
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
5-8
5-9
I･pulse F1 Series
F1-16(C type)
No. Code No. Parts Name Q'ty Parts No.

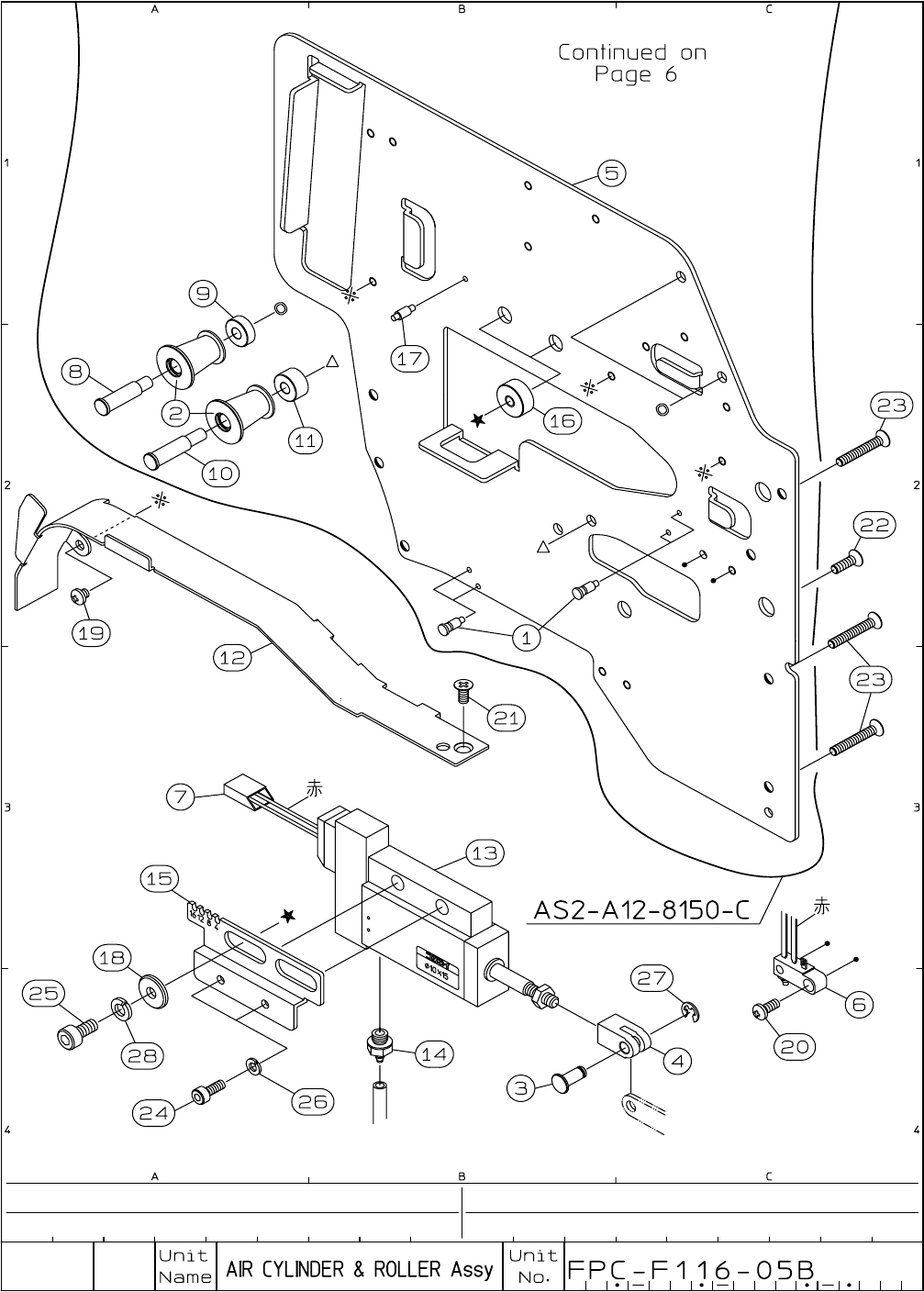

LG4-M5A60-010 BACK PLATE ASSY
1
AS2-A12-8150-C
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 LG4-M5A6G-000
TAPER ROLLER
3 FTA-A16-8172
3
LG4-M1A72-000 CONNECT PIN
1 FTA-A08-8146
4
LG4-M1A71-000 ROD CONNECT
1 FTA-A08-8147
5
LG4-M4A61-010 BACK PLATE
1 FTA-A12-8150-C
6
LG4-M1AA3-000 MICRO SWITCH ASSY
1 FTA-A08-8151-6
7
LG4-M1AA4-000 VALVE HARNESS ASSY
1 FTA-A08-8151-7
8
LG4-M5A6A-000 ROLLER AXIS T
2 FTA-A16-8173-B
9
LG4-M5A6C-000 LEAF T
2 FTA-A16-8173-1
10
LG4-M5A6B-000 ROLLER AXIS U
1 FTA-A16-8174-B
11
LG4-M5A6D-000 LEAF U
1 FTA-A16-8174-1
12
LG4-M5A6N-000 MIDDLE GUIDE PLATE C
1 FTA-A16-8176-C
13
LG4-M1AB1-000 VAL PACK CYLINDER
1 BDA10×15-327W
14 K87-M56C1-000
BARB CONNECTOR
1 BF4BU
15
LG4-M5A73-000 ADJUST PLATE
1 FTA-A16-8151-C
16
LG4-M4A6E-000
ADJUST PLATE STUD 2 FTA-A12-8151-1
17
LG4-M4A6F-000
SET PIN 1 FTA-A12-8152
18 K87-M2387-000
PLANE WASHER
2
CTF- 54- 66-1
19
K87-M111N-000 SCREW , PAN HEAD ＋
3 3MC-3-P
20
LG4-M1ADC-000 SCREW , PAN HEAD ＋
1 3MC-7-P
21
LG4-M4ADE-000 SCREW , FLAT HEAD ＋
1
3MK-7-P
22 KW1-M45BG-000
SCREW , FLAT HEAD ＋
1 3MK-10-P
23
LG4-M5ADD-000 SCREW , FLAT HEAD ＋
3 3MK-20-P
24 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
25 K87-M23BA-000 BOLT,HEX SOCKET HEAD 2 4MX-8-P
26 K87-M21BM-000 SPRING LOCK WASHER 2
3MU
27 K87-M11D7-000
CIRCLIP E
1 E-32
28
LG4-M4AD3-000
SPRING LOCK WASHER 2
4MU
29
30
31
32
33
