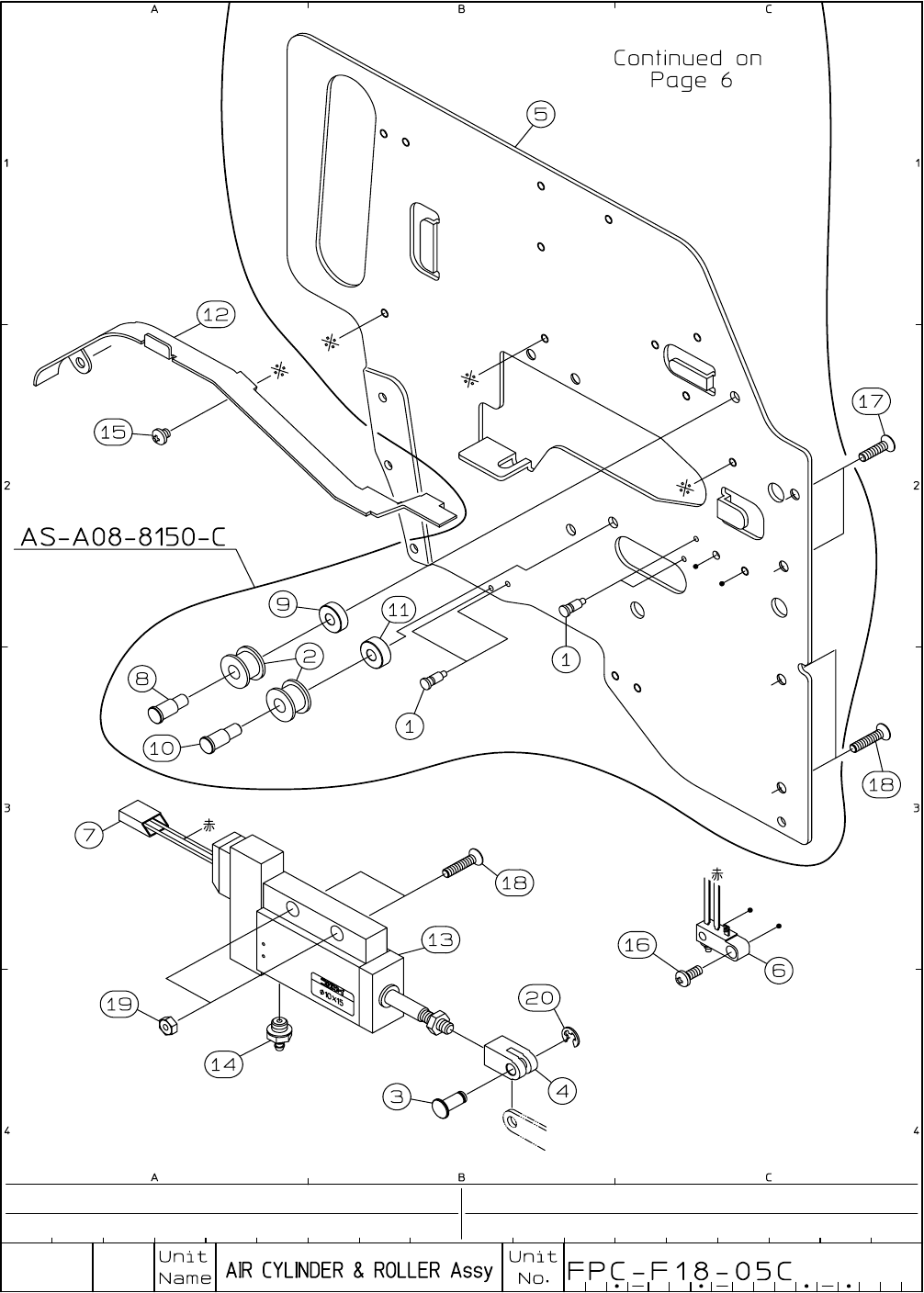

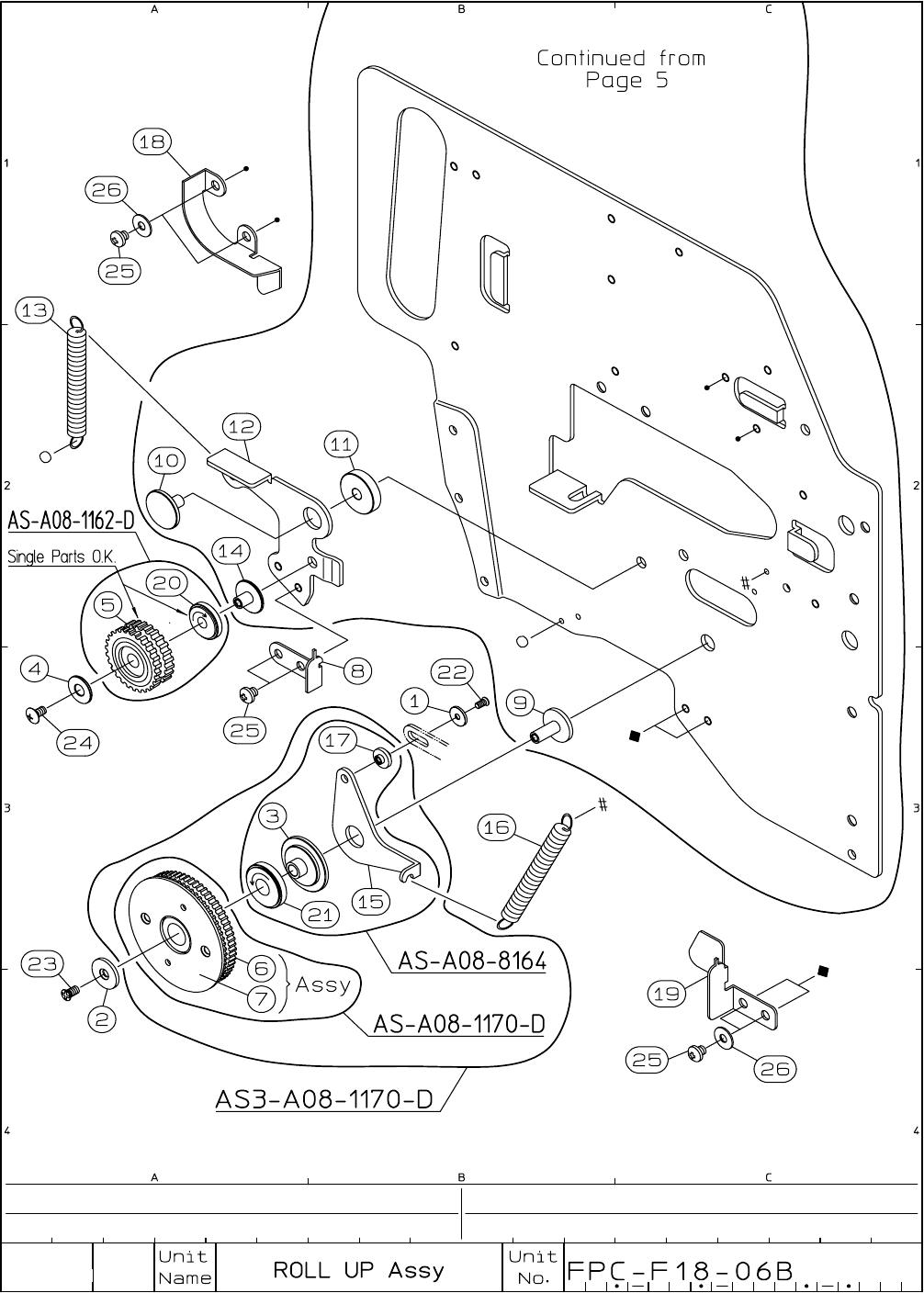

I･pulse F1 Series
F1-82-0603(C type)
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-011
Back Plate Assy
1
AS -A08-8150-C
1 K87-M116A-100 Spring Hook Pin 4 CTF-M08- 166-B
2 KW1-M116U-000
Roller
2 CTF-M08- 342
3 LG4-M1A72-000
Connect Pin
1 FTA-A08-8146
4 LG4-M1A71-000
Rod Connect
1 FTA-A08-8147
5 LG4-M1A61-011
Back Plate
1 FTA-A08-8150-C
6 LG4-M1AA3-000
Micro Switch Assy
1 FTA-A08-8151-6
7 LG4-M1AA4-000
Valve Harness Assy
1 FTA-A08-8151-7
8 LG4-M1A6A-000
Roller Axis T
1 FTA-A08-8173
9 LG4-M1A6C-000
Leaf T
1 FTA-A08-8173-1
10 LG4-M1A6B-000
Roller Axis U
1 FTA-A08-8174
11 LG4-M1A6D-000
Leaf U
1 FTA-A08-8174-1
12 LG4-M1A6N-000
Middle Guide Plate C
1 FTA-A08-8176-C
13 LG4-M1AB1-000
Val Pack Cylinder
1 BDA10×15-327W
14
LG4-M1AB3-000
Barb Connector
1 BF3BU-136W
15 K87-M111N-000
Screw , Pan Head ＋
3 3MC-3-P
16 LG4-M1ADC-000
Screw , Pan Head ＋
1 3MC-7-P
17 K87-M11B4-100
Screw , Flat Head ＋
2 3MK-12-P
18 LG4-M1ADD-000
Screw , Flat Head ＋
4 3MK-14-P
19 K87-M21BN-000
Screw , Nut
2 3MH
20 K87-M11D7-000
Circlip E
1 E-32
21
22
23
24
25
26
27
28
29
30
31
32
33
